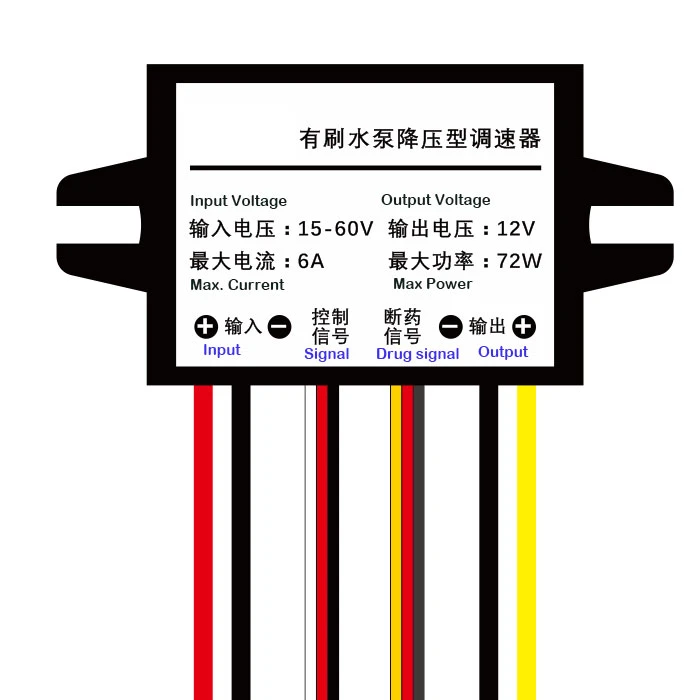

12S Brush Water Pump Voltage Regulator 24V Transfer To 12V

This is specially designed for agriculture droens, it integrated the voltage buck module and speed controller in one module, support 15-60V input, and connect to 12V brush water pump. Built-in drug detection function, the module is sealed with epoxy resin, dustproof and waterproof.

Specifications:
Installation hole: 54-60mm
Voltage supply: 15-60V
Output voltage: 12V
Max. current: 6A
Max. power: 72W
Size: 47x34x22mm
Weight: 72g

Drug detection function: the drug detection function is currently limited to the use of 25W water pump, the 3pin line of the drug-breaking signal is connected to the detection interface of the flight control level , the drug-breaking signal is output in high and low level mode, with water is high level, no water is low level,  the air in the pump need to discharge before takeoff, so as not to misjudge after takeoff.
