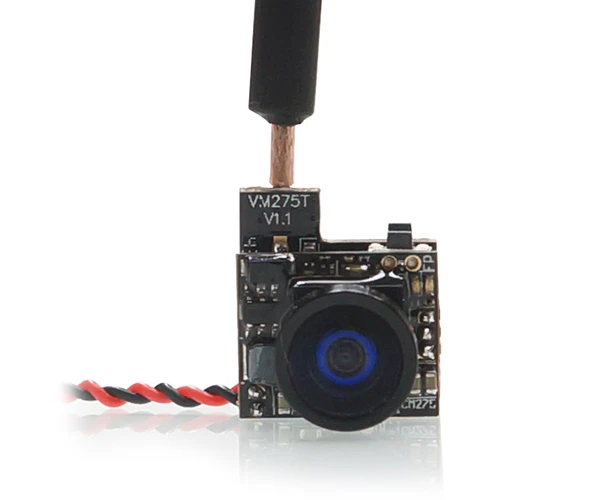

5.8G 48CH 25mW 800TVL FPV Micro AIO Camera Transmitter For Micro FPV Drone Like Blade Inductrix Tiny Whoop Etc

Original price was: $16.99.Current price is: $11.89.

SKU: CMMTD 3931264325 Categories: Camera, FPV SETS

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

Description
Reviews (0)

PRODUCT DESCRIPTION

Features:
This is the lightest AIO VTX camera in the world, only 3.5g, even lighter than FX797, FX798, EF-01, FX805 and TX02.
Light weight only 3.5g, Small size with 47 * 14 * 12 mm.
Supporting touch switch select channel Frequency group,Supporting NTSC/PAL switch, Support vertical inverted image switch.
8LED display channel and 6LEDS display frequency group information, 1LED display PAL/NTSC and FLIP information.
Wide lens angle. Miniature and light weight design.

Specification:
Output power: 25mW
Supply Voltage: 2.9-5.5v
Size : 47 * 14.8 * 12.5 mm
Weight: 3.6g
Antenna:Exclusive Dipole Whip Antenna
Power consumption: 200~215MA5V DCIN
Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5362~5945MHz
Field of view: 120�
Operating Temperature: -10℃~+60℃
Ambient temperature:25℃
Channel SEL:Touch Switch
Channel Indicate:CH1~CH8 Channel indication with 8LEDS and A~F frequency, group Indicate with 6LEDS
Modulation type：FM
Transmit power: 13�1dBm
Frequency control: PLL
All harmonic: Max -50dBm
Frequency Stability: �100KHz (Typ.)
Frequency precision: �200KHz (Typ.)
Channel Carrier error: 1dB
Antenna Port: 50 Ω
SENSOR:PAL: 720X540/NTSC:640X480 1/4”
LENS ANGEL: H:120�/V:100�
Base-band interface: (P1.27*2)
Profile dimension: 14.5mm*12.2mm+14.5mm*12mm

Transmission Frequency:
A: CH1: 5740MHz CH2: 5760MHz CH3: 5780MHz CH4: 5800MHz
CH5: 5820MHz CH6: 5840MHz CH7: 5860MHz CH8: 5880MHz
B: CH1: 5705MHz CH2: 5685MHz CH3: 5665MHz CH4: 5645MHz
CH5: 5885MHz CH6: 5905MHz CH7: 5925MHz CH8: 5945MHz
C: CH1: 5865MHz CH2: 5845MHz CH3: 5825MHz CH4: 5805MHz
CH5: 5785MHz CH6: 5765MHz CH7: 5745MHz CH8: 5725MHz
D: CH1: 5658MHz CH2: 5695MHz CH3: 5732MHz CH4: 5769MHz
CH5: 5806MHz CH6: 5843MHz CH7: 5880MHz CH8: 5917MHz
E: CH1: 5733MHz CH2: 5752MHz CH3: 5771MHz CH4: 5790MHz
CH5: 5809MHz CH6: 5828MHz CH7: 5847MHz CH8: 5866MHz
F: CH1: 5362MHz CH2: 5399MHz CH3: 5436MHz CH4: 5473MHz
CH5: 5510MHz CH6: 5547MHz CH7: 5584MHz CH8: 5621MHz

Package Includes:
1 x FPV Micro AIO Camera
