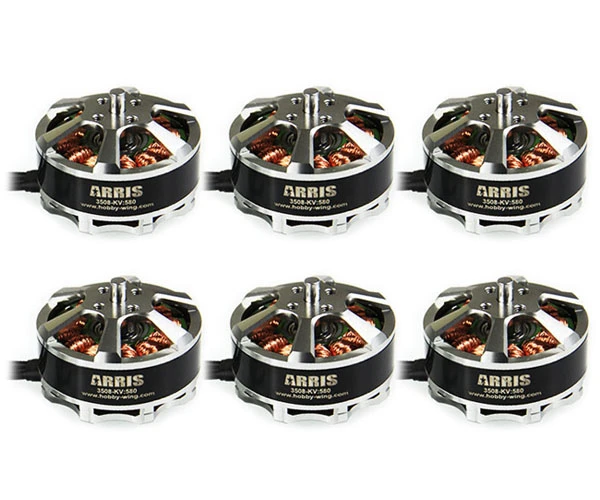

ARRIS 3508 700KV Brushless Motor For Multi Rotor (6 PCS)

ARRIS Brushless Motor is jointly developed by Hobby-Wing and the most professional motor manufacturer in China. This professional motor has 2 series: multirotor motors and brushless gimbal motors. We pursue the highest quality from material to processing technology to ensure the outstanding quality of every ARRIS motor.
The advantage of ARRIS Motors is as follows:

1. Motor Spindle: ARRIS motor adopts authentic Japan Kawasaki 20JNE1200 material. With this, the motor becomes more efficient and gets lower temperature during flight.
2. Magnet: NdFeb N45UH high heat resistance magnet, with nickel plating on the surface. (T-Motor also use the NdFeb N45UH magnet)
3. Varnished Wire: ARRIS Motor adopts 155 degree high heat resistance vanished wires
4. Bearings: ARRIS Motor adopts authentic NMB bearing
5. Dynamic Balance: We ensure every ARRIS Motor has been processed by dynamic balance. And the balance quality can reach in 0.01 left/right. (This is the extremity of the balancing machine at present)





Professional series£º3508 KV580
Volts(V)	Prop	Throttle	Amps(A£©	Watts(W)	Thrust(G)	Thrust(OZ)	RPM	Efficiency(G/W)	Efficiency(OZ/W)	operation temperature(¡æ£©
11.1	APC12*3.8	25%	0.4	4.4	90	3.17	1640	20.27	0.72	¡¡
		50%	1.5	16.7	270	9.52	2885	16.22	0.57
		65%	3.0	33.3	440	15.52	3630	13.21	0.47
		75%	4.9	54.4	610	21.52	4190	11.22	0.40
		85%	7.2	79.9	830	29.28	4675	10.39	0.37
		100%	9.0	99.9	950	33.51	4945	9.51	0.34
	13*4  carbon prop	25%	0.4	4.4	70	2.47	1755	15.77	0.56	¡¡
		50%	1.3	14.4	200	7.05	2985	13.86	0.49
		65%	2.5	27.8	350	12.35	3800	12.61	0.44
		75%	3.9	43.3	510	17.99	4380	11.78	0.42
		85%	5.5	61.1	710	25.04	4940	11.63	0.41
		100%	7.0	77.7	850	29.98	5255	10.94	0.39
	APC14*4.7	25%	0.5	5.6	100	3.53	1335	18.02	0.64	¡¡
		50%	2.4	26.6	400	14.11	2630	15.02	0.53
		65%	4.8	53.3	650	22.93	3280	12.20	0.43
		75%	7.4	82.1	860	30.34	3755	10.47	0.37
		85%	10.5	116.6	1130	39.86	4155	9.70	0.34
		100%	13.5	149.9	1320	46.56	4365	8.81	0.31
	APC15*4	25%	0.4	4.4	70	2.47	1520	15.77	0.56	¡¡
		50%	1.7	18.9	270	9.52	2780	14.31	0.50
		65%	3.3	36.6	460	16.23	3555	12.56	0.44
		75%	5.2	57.7	640	22.57	4145	11.09	0.39
		85%	7.6	84.4	880	31.04	4700	10.43	0.37
		100%	9.0	99.9	1010	35.63	4930	10.11	0.36
	DJI15*5.5	25%	0.5	5.6	90	3.17	1250	16.22	0.57	¡¡
		50%	2.5	27.8	420	14.81	2555	15.14	0.53
		65%	4.9	54.4	670	23.63	3215	12.32	0.43
		75%	7.4	82.1	870	30.69	3725	10.59	0.37
		85%	10.6	117.7	1100	38.80	4180	9.35	0.33
		100%	12.5	138.8	1310	46.21	4396	9.44	0.33
14.8	APC12*3.8	25%	0.6	8.9	150	5.29	2035	16.89	0.60	¡¡
		50%	2.5	37.0	450	15.87	3605	12.16	0.43
		65%	5.0	74.0	730	25.75	4550	9.86	0.35
		75%	8.5	125.8	1130	39.86	5225	8.98	0.32
		85%	11.5	170.2	1355	47.80	5680	7.96	0.28
		100%	14.3	211.6	1610	56.79	5990	7.61	0.27
	13*4  carbon prop	25%	0.6	8.9	130	4.59	2290	14.64	0.52	¡¡
		50%	2.0	29.6	350	12.35	3785	11.82	0.42
		65%	4.3	63.6	620	21.87	4855	9.74	0.34
		75%	6.3	93.2	840	29.63	5540	9.01	0.32
		85%	9.0	133.2	1105	38.98	6190	8.30	0.29
		100%	11.0	162.8	1350	47.62	6515	8.29	0.29
	APC14*4.7	25%	0.7	10.4	150	5.29	1665	14.48	0.51	¡¡
		50%	3.8	56.2	650	22.93	3280	11.56	0.41
		65%	7.5	111.0	1060	37.39	4045	9.55	0.34
		75%	11.7	173.2	1370	48.32	4565	7.91	0.28
		85%	16.0	236.8	1610	56.79	4950	6.80	0.24
		100%	19.0	281.2	1780	62.79	5105	6.33	0.22
	APC15*4	25%	0.6	8.9	110	3.88	1875	12.39	0.44	¡¡
		50%	2.7	40.0	450	15.87	3525	11.26	0.40
		65%	5.5	81.4	800	28.22	4115	9.83	0.35
		75%	8.2	121.4	1100	38.80	5180	9.06	0.32
		85%	11.7	173.2	1430	50.44	5790	8.26	0.29
		100%	14.0	207.2	1650	58.20	6060	7.96	0.28
	DJI15*5.5	25%	0.8	11.8	180	6.35	1655	15.20	0.54	¡¡
		50%	4.0	59.2	680	23.99	3240	11.49	0.41
		65%	7.5	111.0	1080	38.10	4050	9.73	0.34
		75%	11.4	168.7	1440	50.79	4600	8.53	0.30
		85%	15.7	232.4	1720	60.67	5025	7.40	0.26
		100%	18.5	273.8	1850	65.26	5245	6.76	0.24



Professional series£º3508 KV700
Volts(V)	Prop	Throttle	Amps(A£©	Watts(W)	Thrust(G)	Thrust(OZ)	RPM	Efficiency(G/W)	Efficiency(OZ/W)	operation temperature(¡æ£©
11.1	APC10*4.7	25%	0.6	6.7	100	3.53	2205	15.02	0.53	¡¡
		50%	1.8	20.0	270	9.52	3580	13.51	0.48
		65%	3.5	38.9	450	15.87	4610	11.58	0.41
		75%	5.8	64.4	620	21.87	5380	9.63	0.34
		85%	8.0	88.8	780	27.51	5995	8.78	0.31
		100%	10.0	111.0	920	32.45	6395	8.29	0.29
	APC11*4.7	25%	0.6	6.7	90	3.17	1980	13.51	0.48	¡¡
		50%	2.2	24.4	320	11.29	3400	13.10	0.46
		65%	4.5	50.0	560	19.75	4300	11.21	0.40
		75%	7.3	81.0	760	26.81	505	9.38	0.33
		85%	10.5	116.6	930	32.80	5635	7.98	0.28
		100%	13.0	144.3	1140	40.21	5975	7.90	0.28
	APC12*3.8	25%	0.6	6.7	100	3.53	1855	15.02	0.53	¡¡
		50%	2.5	27.8	350	12.35	3340	12.61	0.44
		65%	5.2	57.7	590	20.81	4225	10.22	0.36
		75%	8.7	96.6	840	29.63	4870	8.70	0.31
		85%	12.6	139.9	1130	39.86	5395	8.08	0.28
		100%	15.1	167.6	1310	46.21	5630	7.82	0.28
	13*4  carbon prop	25%	0.6	6.7	95	3.35	2000	14.26	0.50	¡¡
		50%	2.0	22.2	300	10.58	3450	13.51	0.48
		65%	4.4	48.8	500	17.64	4460	10.24	0.36
		75%	7.0	77.7	750	26.46	5200	9.65	0.34
		85%	10.0	111.0	990	34.92	5770	8.92	0.31
		100%	12.0	133.2	1160	40.92	6100	8.71	0.31
14.8	APC10*4.7	25%	0.8	11.8	150	5.29	2765	12.67	0.45	¡¡
		50%	3.0	44.4	450	15.87	4585	10.14	0.36
		65%	6.0	88.8	730	25.75	5840	8.22	0.29
		75%	9.3	137.6	1020	35.98	6720	7.41	0.26
		85%	13.3	196.8	1250	44.09	7510	6.35	0.22
		100%	16.0	236.8	1470	51.85	7855	6.21	0.22
	APC11*4.7	25%	0.8	11.8	170	6.00	2525	14.36	0.51	¡¡
		50%	3.6	53.3	530	18.69	4350	9.95	0.35
		65%	7.4	109.5	880	31.04	5475	8.04	0.28
		75%	11.6	171.7	1250	44.09	6280	7.28	0.26
		85%	16.5	244.2	1470	51.85	6905	6.02	0.21
		100%	19.5	288.6	1580	55.73	7265	5.47	0.19
	APC12*3.8	25%	0.8	11.8	140	4.94	2315	11.82	0.42	¡¡
		50%	4.2	62.2	540	19.05	4200	8.69	0.31
		65%	9.0	133.2	970	34.22	5240	7.28	0.26
		75%	14.0	207.2	1340	47.27	5845	6.47	0.23
		85%	20.0	296.0	1600	56.44	6340	5.41	0.19
		100%	25.0	370.0	1790	63.14	6600	4.84	0.17
	13*4  carbon prop	25%	0.8	11.8	150	5.29	2570	12.67	0.45	¡¡
		50%	3.5	51.8	520	18.34	4440	10.04	0.35
		65%	7.0	103.6	900	31.75	5605	8.69	0.31
		75%	11.0	162.8	1230	43.39	6410	7.56	0.27
		85%	15.7	232.4	1580	55.73	7095	6.80	0.24
		100%	18.5	273.8	1760	62.08	7430	6.43	0.23

Package Include:
ARRIS 3508 580KV or 700KV Multi-copter Outrunner Brushless Motor X 6
