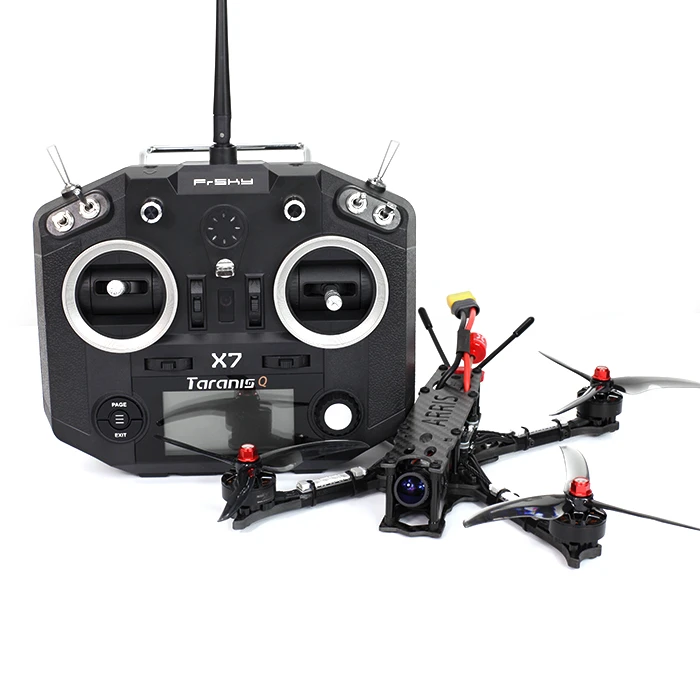

ARRIS Dazzle 5 Inch FPV Racing Drone RTF With Frsky Q X7

ARRIS Dazzle is a 5″ fpv racing drone specially designed for freestyle flying.With the low gravity center design, 4mm double lower plate, 5mm arm design, it is super durable and agile for freestyle.
The BNF comes with the ARRIS Dazzle 5″ drone frame, ARRIS X2206 2450KV high efficiency brushless motor, Diatone Mamba F405 with 30A 4in1 ESC Stack, T-motor T5143S 5″ propeller, Rush Tank racing edition video transmitter,Arris 2.1mm 1200TVLcamera and Foxeer lollipop antenna, Frsky Q X7 radio and receiver. The drone is fully asembled and tuned by our professional technician team and bind and fly.



Main Features:
1. Classic True “X” symmetrical design, great flight feel for freestyle
2. High strength carbon fiber frame, 5mm thickness arms, super stable and durable
3. The inner space of the frame is greatly improved, the flight controller installed in the center of the frame, the flight is more stable
4. Comaptible with 19x19mm and 16x16mm camera
5. Highlight programmable LED on the arm, color is adustable through the radio
6. Rush Tank VTX with Foxeer lollipop antenna gives you long fpv range
7. HD high quality fpv camera provides you excellent images during FPV
8. Fully assembled and tuned through professional technician team, bind and fly

Specifications:
Item Brand: ARRIS
Item Model: ARRIS Dazzle
Wheelbase: 225mm
Flight Controller: Mamba F4 FC
ESC: 40A 4in1 ESC
Motor: ARRIS 2206 2450KV Brushless motor
Propeller: Dalprop Cyclone T5045C propeller
VTX: 48CH Adjustable VTX
Camera: arris 2.1mm 1200tvl fpv camera

ARRIS Dazzle frame adopts the True X symmetrical design,the gravity center is in the middle,with 5mm thickness arms,2mm upper plate and doulble 4mm lower plate, the weight of the frame is about 97g, its resistance to crash increased much than other same level drones.

ARRIS X2206 2450KV High Efficiency Brushless Motor is high end brushless motor specially designed for high performance fpv racing drones.It adopts brand new M5 steel shaft, improving the structure strength. It had been upgraded to centrifugal fan design, optimizing the heat dissipation.It also adopts original Japan NSK bearing and N52 tile-shape magnets to ensure the power and quality of the motor.

F405 Betaflight Controller with 40A 4IN1 ESC Stack
With the stack on the ARRIS Dazzle drone, the wires are tidy and concise. And it is more convenient to maintain in the future.
Specifications:
Input power: 12.6-25V (3-6S)
BEC: 5V/1.5A
MCU: STM32F405
Gyro: MPU6000
Flash: 16MB
OSD: AT7456
Continue current: 40A×4
Burst current: 40/50A (6S)
Mounting hole: 30.5*30.5mm

T-Motor T5143S propeller optimized the design of prop tip, make it more durable and smooth. One of the great choice for freestlye racing drones.

The RUSH Tank Racing Edition video transmitter is a high quality VTX featuring strong anti-interference ability, power filtering, and stable transmission. With LOCK-ON technology, the frequency drift is completely eliminated, the full frequency band power is constant, let 8 players compete at the same time easily. What’s more, with the full-metal shell covering, the weight is only 5.5g.

Foxeer Lollipop Super Mini Antenna. It comes with the new unibody structure and adopted strength alloy material for stronger signal, more steady gain and anti-crash. It can bent at any angle as per your requirements.

Highlight LED on the arm makes your Dazzle more dazzling. The color of the LED is adjustable in BF.

GoPro 4/5/6/7 can install on the ARRIS Dazzle 5 easily on top plate. The 3D print TPU parts is optional, you can buy from here.

ARRIS Dazzle has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable)according to betaflight parameter-adjustment software. In addition, you can also locate your racing drone through triggering the buzzer with the switch SC on the transmitter.



There are three flight mode on the radio: Attitude Mode (Self-level mode), Acro Mode(Manual Mode) and Air Mode. The picture below is what we set on Frsky Q X7 radio.

Before you fly it, remember to arm the drone, here is the switch where we set below:

Frsky Taranis Q X7 transmitter includes a Haptic Vibration Feedback System which provides an alternative feedback system to the voice and sound alert warnings. This 16 channel radio has smooth ball bearing gimbals and is loaded with six switches and two knobs. It runs on OpenTX and files can be shared with the popular X9D Plus. The MicroSD card slot offers unlimited model memory options, it also has a USB port for upgrades and to connect to a PC for adjusting settings. Both sticks come with spring loaded return to center sticks, this makes changing from mode 1 to mode 2 extremely easy to set through the menu and the stick can quickly be set to a stationary throttle by unscrewing four screws and removing a spring. One of the best features of the Taranis Q X7 is its full telemetry capability, as well as RSSI signal strength feedback. Wheel and center enter button makes navigating the backlit menu easy and precise. Equipped with an audio jack output and trainer port as well. And of course a module bay for use with JR-type modules that can be used with other protocol receivers and with the use of an FrSky XJT module this radio can support up to 32-channels. Other features include Receiver Match, Real-Time Flight Data Logging and Super Low Latency for precision flying.

High safety ARRIS 4S 1500mah Lipo Battery

ARRIS 4S 1500mAh 50C lipo battery is specially designed for FPV racer. The price of this battery is much higher than the similar batteries in the market, because we only sell top-quality batteries. As we all know, the low quality battery might have potential safety hazard, we will never tolerate such products.For ARRIS 4S 1500mah lipo battery, we have done UN38.3 test,1.2M Drop test,MDS report for it, for the test report, you can check here.

Package Included:
ARRIS Dazzle 5 inch fpv racing drone frame x 1
ARRIS X2206 2450KV brushless motor x 4
Mamba F405 Betaflight F4 FC with 40A 4in1 ESC OSD Tower x 1
Rush Tank 48CH Video transmitter x 1
ARRIS MINI FPV Camera x 1
Foxeer 5.8G Lollipop antenna x 1
Dalprop T5045C propeller x 4 (2CW+2CCW)
ARRIS high strength battery straps x 2
ARRIS 4S 1500mah Lipo Battery x 1
Frsky Q X7 Remote Controller x 1
Frsky R-XSR receiver x 1

Note: Battery for the Q-X7 radio and battery charger is not included.
