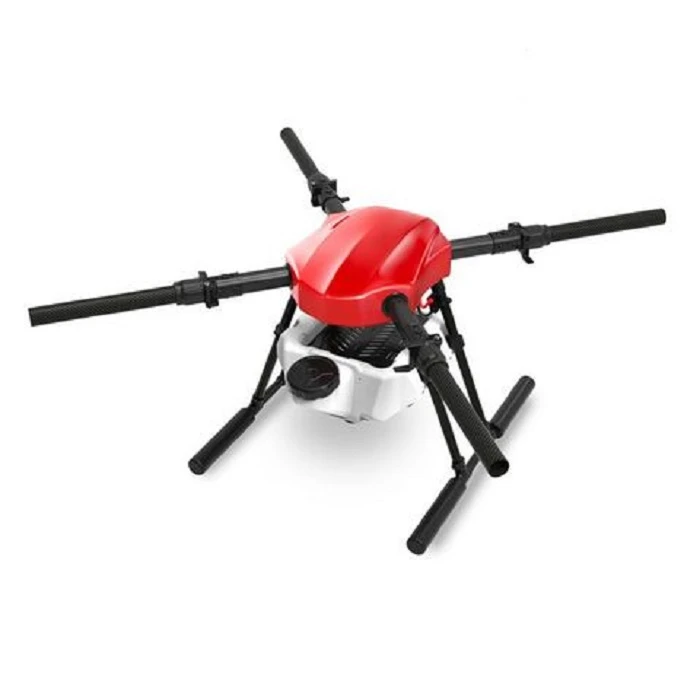

ARRIS E410S 4 Axis 10kg UAV Agricualtural Spraying Drone

The E410 frame has upgraded to E410S,and the main difference between the two is the folding parts that new folding parts are injection-molded and the structure is more stable and durable.

Why Choose the Agricultural Drones?

1.High Efficiency
The agricultural drone operation is faster, and the single agriculture drone machine has an operating area of 400-600 mu per day, which is 50 times that of manual work. Large-scale operations can achieve the effect of unified defense.

2.Environmental Protection
Agriculture drone operation can save water and medicine, reduce the soil pollution and waste of water resources.

3. Good Effect
Under the pressure of the wind, the atomized liquid medicine is distributed to all levels of the crop with the wind force, so that pests and germs have nowhere to hide, and thanks to rapid operations, large-scale crops can be simultaneously controlled to achieve the effect of unified control.

4. Low Cost
Rechargeable lithium battery operation, one-time investment, long-term gains. At the same time, it can save manpower, water, medicine investment and reduce plant protection costs.

ARRIS E410 4 Axis 10L agriculture drones is quite popular in spraying drone market. With the 12S 16000mah to 18000mah lipo battery, it can fly about 9 to 15 minutes. During our test, with 12s 18000mah lipo, it can spraying two of the 10L liquid. It adopts the embracing folding method, easy to carry.

Specifications:
Digonal Wheelbase: 1300mm
Folding Dimensions: 570x570x500mm
Payload: 10L
Frame Weight: 6.5kg
Frame with power equipement: 10kg
Max take off weight: 25kg
Spray lance width: 1800mm
Spraying swath: 4-3m (flight height is 1.5m to 2m)
Main arm length:216mm
Folding arm size:32mmx35mmx230mm
Power source: Battery
Nozzle: 4pcs
Flight time: 10 to 15 minutes (with 2pc 6S 16000mah Lipo)
Flight speed: 0-12M/S
Spray speed: 0-8M/S
Spray flow: 0.2-4L/min
Flying downward airflow: 4-15m/s
Operation temperature:10~50℃

Power combo specifications:
Motor: 8118 100kv
Propeller: 30×8.0 inch
ESC: 80A FOC
Voltage Input: 12S
Working pulse width:1120-1920us
Max Thrust: 15kg
Suggest thrust: 5-7kg

Main Features:
With the new industrial design, the entire body is waterproof. New integrated power system,adopts FOC sinusoidal drive scheme,strong power, high efficieny and super durable.

Waterproof Body
The body is streamlined and full of science and technology.It is overall waterproof, can be washed directly with water.

Cool taillights, Quick tuning
Unique hexagon tail light design, with the flight controlller indicator built-in installation, waterproor and concise. There is USB data dable interface in the button,Settings can be adjusted without removing the canopy, more convenient.

Hidden distribution board
The new distribution board adopts a separate and hidden design to isolate the power supply and signals, optimize the internal electromagnetic environment of the aircraft, and provide a larger space for flight control installation, which makes the wiring more concise.

Integrated waterproof power system
The new integrated power system uses FOC sine wave drive ESC, high-performance motors which provide a stronger power, less noise, higher efficiency for the drone.With the overall waterproof design, no fear of washing, and the dynamic highlight LED lights can feedback system status in real-time .

Reserved equipment expansion port
There are several equipement expansion ports reserved at the side and botton of the frame. It is convenient to install RTK, water pump, radar and other extended equipment under the premise of waterproof protection.

Increase the Pesticide tank inlet
The overall expansion of the drug-adding port reduces the spillage of the liquid and makes the dosing process smoother.

Reinforced power plug
The main power cable exits from the side,and the battery interface is fixed on the side of the landing skid to avoid obstruction of the plug when replacing the battery. The plug connector is more secure and stronger.

Frame Combo Included:
ARRIS E410 Frame x 1
Spaying system x 1

Combo 1 Included:
ARRIS E410S 4 Axis 10L Agriculture Drone Frame x 1
Spraying System x 1
ARRIS A30 8318 120KV Brushless Motor 80A ESC 3095 Carbon Fiber Propeller Power Combo x 4 (2CW+2CCW)



Some fully assembled pictures.

Wheat Spraying Test
