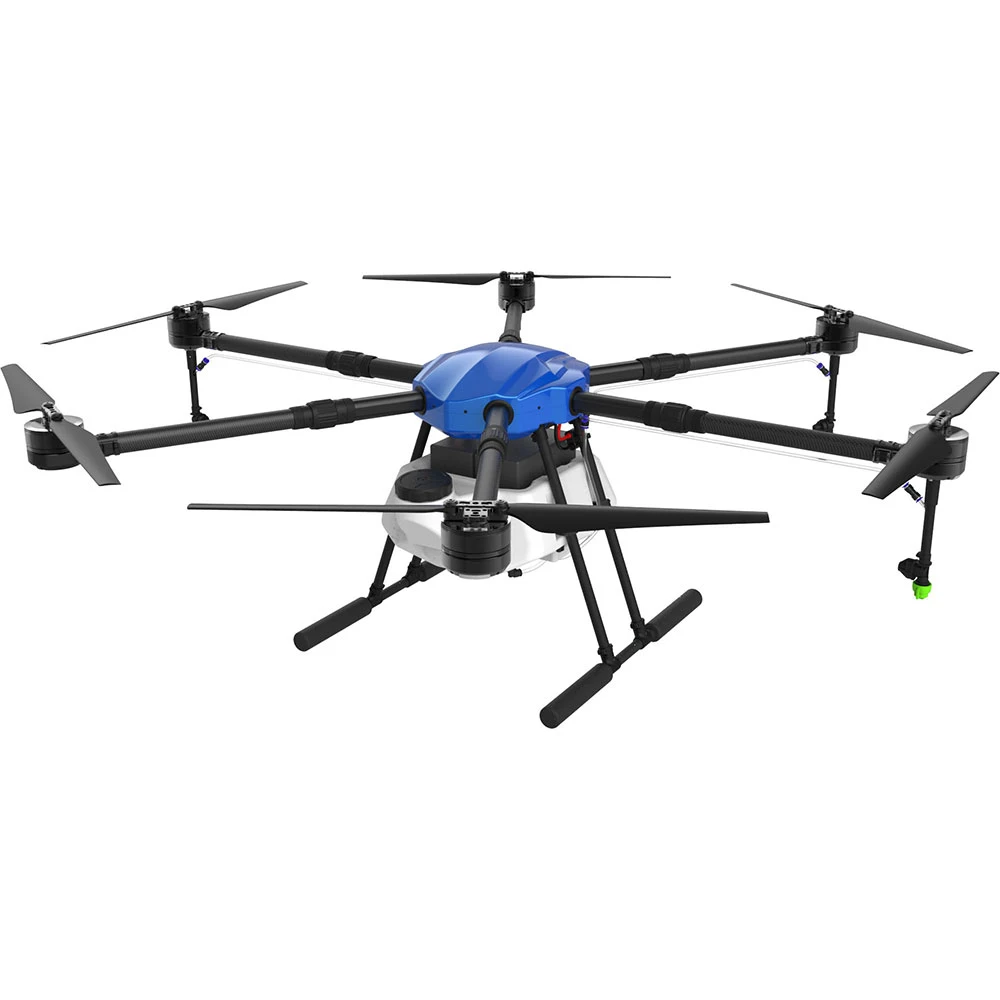

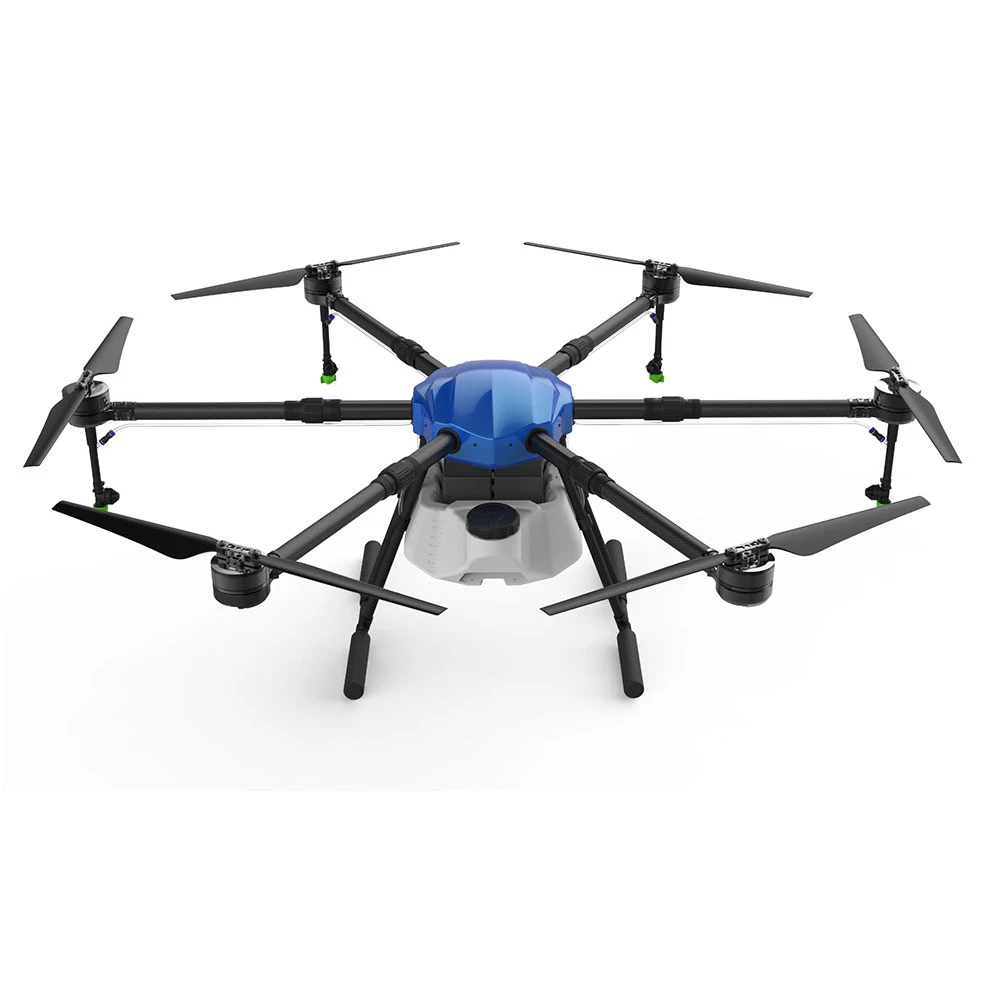

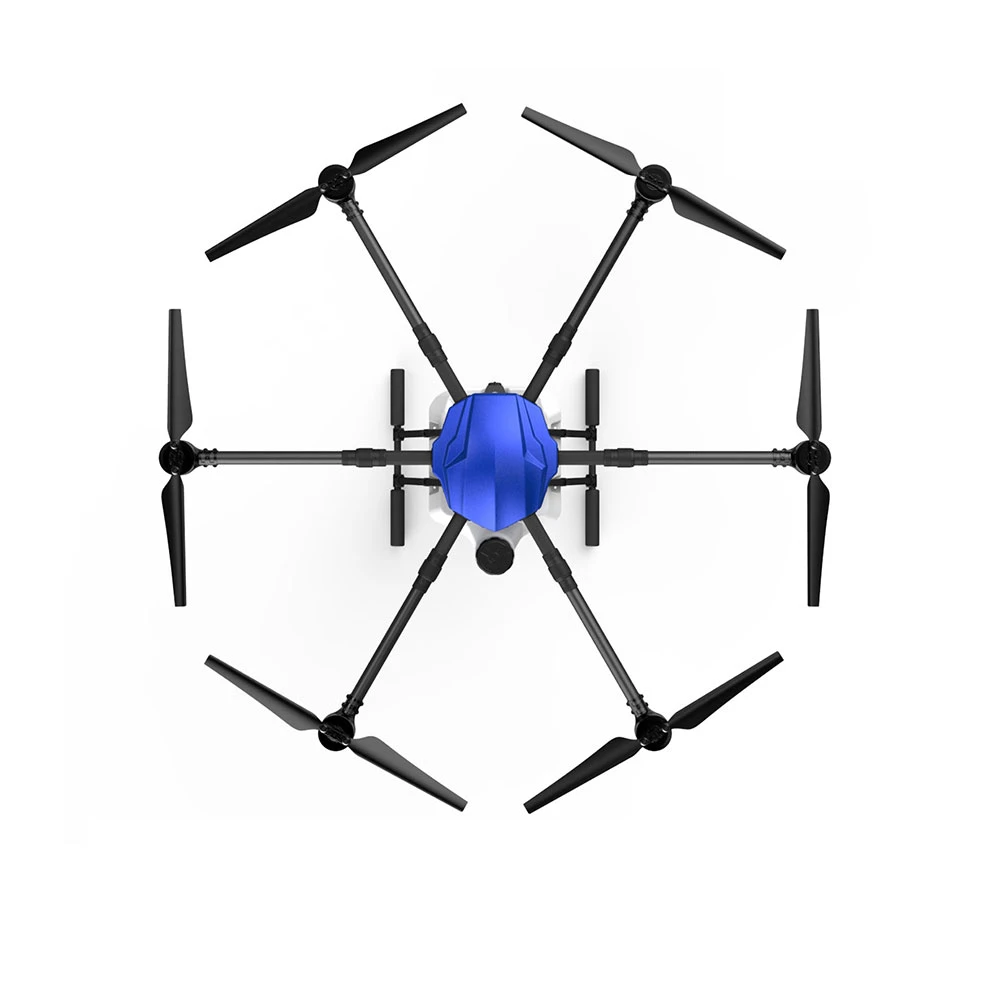

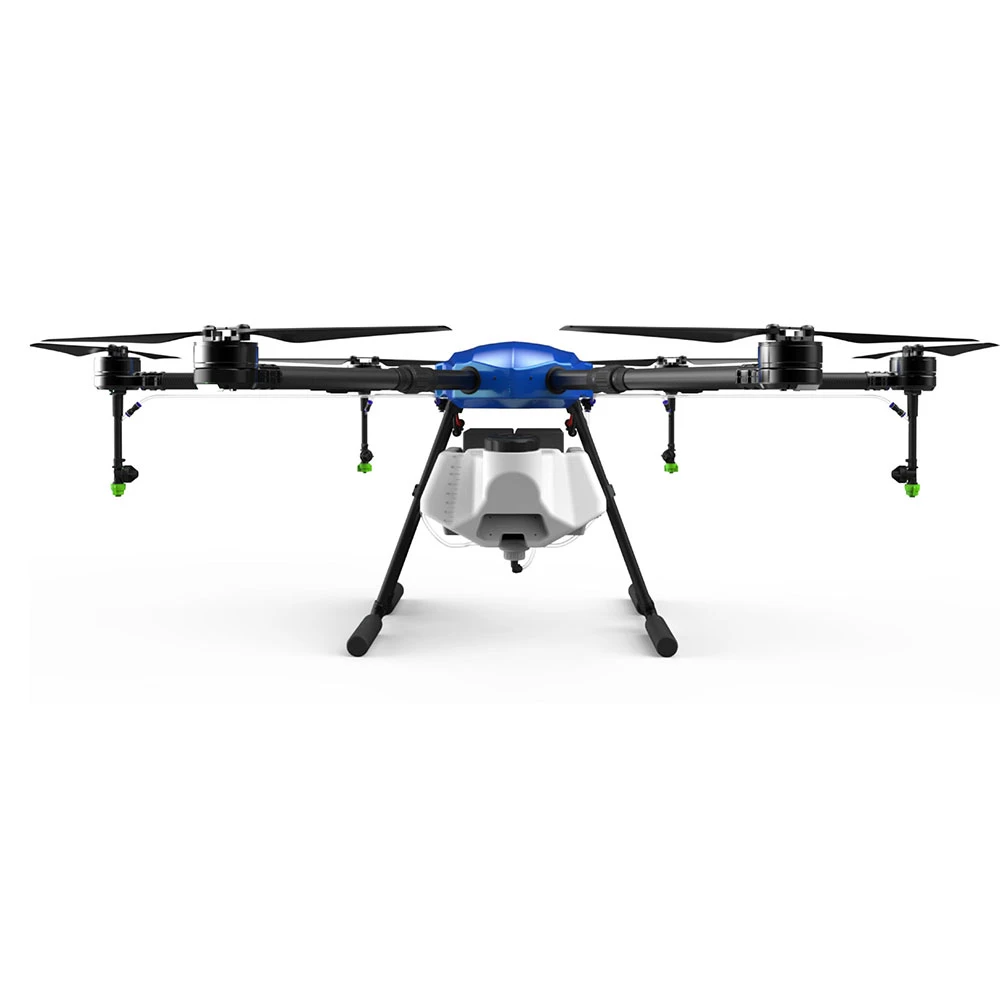

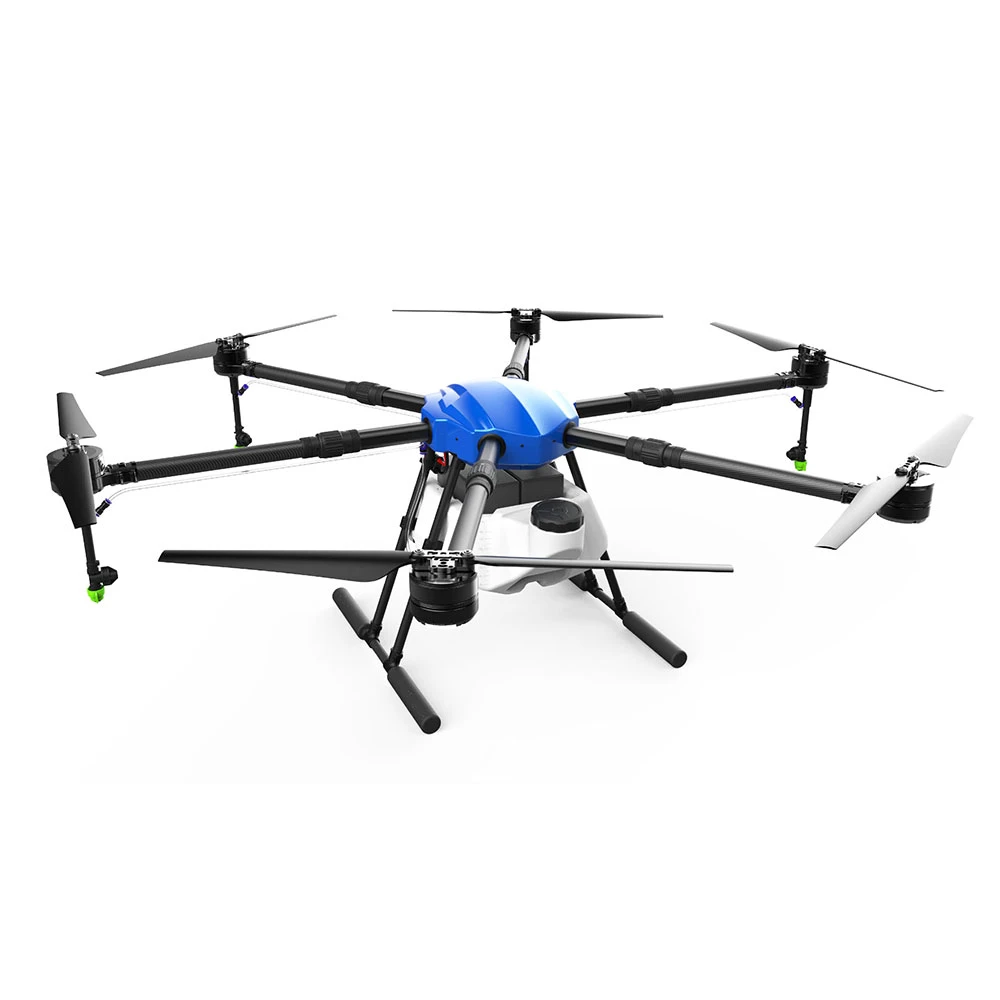

ARRIS E616 6 Axis 16L 16kg UAV Agricualtural Spraying Drone

The launch of ARRIS E410 4 Axis 10l UAV drone has achieved unprecedented success in the past few months, so here comes out the the new 6 Axis 16L drone. The same as E410, ARRIS E616 adopts integrated waterproof design body, the whole body washable, the folding method is the same. Only the E616 has bigger wheelbase, it is 6 axis, and the water tank is 16L.

The default arm diameter on the frame is 35mm, if you DJI E5000/E7000 or other power combos, the 30mm or 40mm arms are optional too. Please write in the comment bar when you place the order if you have special requirements.

Specifications:
Dignotal Wheelbase: 1630mm
Folding Size: 1000 x 950 x 600mm
Tank Capacity: 16L
Spray Width: 3-5m
Weight: 7.5kg (Spraying system included)
Max Takeoff Weight: 36kg

Power combo specifications:
Motor: 8118 100kv
Propeller: 30×8.0 inch
ESC: 80A FOC
Voltage Input: 12S
Working pulse width:1120-1920us
Max Thrust: 15kg
Suggest thrust: 5-7kg

Waterproof Body
The body is streamlined and full of science and technology.It is overall waterproof, can be washed directly with water.

16L High Capacity Water Tank
Specially designed for bigger spaying aera. For the 16L water tank, it has big size liquid inlet, increase the efficiency.

Hidden PDB
The new distribution board adopts a separate and hidden design to isolate the power supply and signals, optimize the internal electromagnetic environment of the aircraft, and provide a larger space for flight control installation, which makes the wiring more concise.

Anti-collision Extension Nozzle
Lengthen the nozzle, and connect it with soft silicone, which can effectively prevent the nozzel from breaking when subjected to external force.

Cool taillights, Quick Tuning
Unique hexagon tail light design, with the flight controlller indicator built-in installation, waterproor and concise. There is USB data dable interface in the button,Settings can be adjusted without removing the canopy, more convenient.

Reinforced Power Plug
The main power cable exits from the side,and the battery interface is fixed on the side of the landing skid to avoid obstruction of the plug when replacing the battery. The plug connector is more secure and stronger.

Reserved equipment expansion port
There are several equipement expansion ports reserved at the side and botton of the frame. It is convenient to install RTK, water pump, radar and other extended equipment under the premise of waterproof protection.

Frame Kit Package Included:
ARRIS E616 6 Axis 16L UAV Drone Frame x 1
Spraying system x 1

Combo 1 Included:
ARRIS E616 Frame x 1
Spaying system x 1
8118 100KV motor x 6
80A FOC ESC x 6
30×8.0 inches folding propeller x 6
