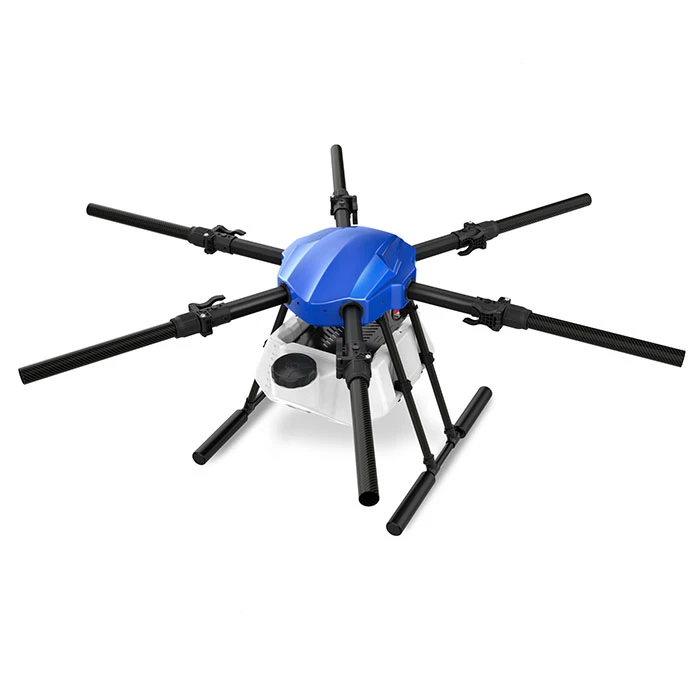

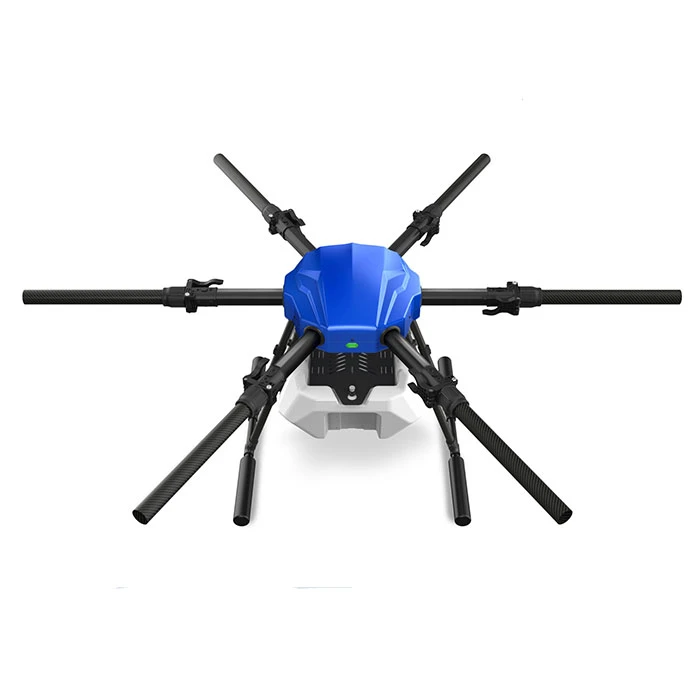

ARRIS E616S 6 Axis 16L UAV Agriculture Spraying Drone Frame Kit

ARRIS E616S is the upgrade version of the popular E616 6 axis 16L UAV agriculture drone. The main difference between the two is the folding parts. As all we know, the folding parts on those agriculture drones are really important. The new folding parts are injection-molded and the structure is more stable and durable.

The unique C-type arm fixing clip design can fix the arm with the fixing clip after the arm is folded, which avoids the problems of swinging and sagging of the arm during handling. The arm of the drone is 35mm in outer diameter, it did not come with motor mount, you can use the power combo suitable for 35mm arms for it.

Specifications:
Item Brand ARRIS
Item Model: ARRIS E616S
Dignotal Wheelbase: 1628mm
Unfolding Size: 1720 x 1500 x 556mm
Folding Size: 1073 x 956 x 546mm
Tank Capacity: 16L
Spray Width: 3-5m
Weight: 7.5kg (Spraying system included)

Recommended components:
Motor: X8, F8, 8118
Propeller: 29-32″ folding propeller
ESC: 80A ESC
Power Supply: 12S
Max take off weight: 36kg

Waterproof Body
The body is streamlined and full of science and technology.It is overall waterproof, can be washed directly with water.

Brand new folding parts

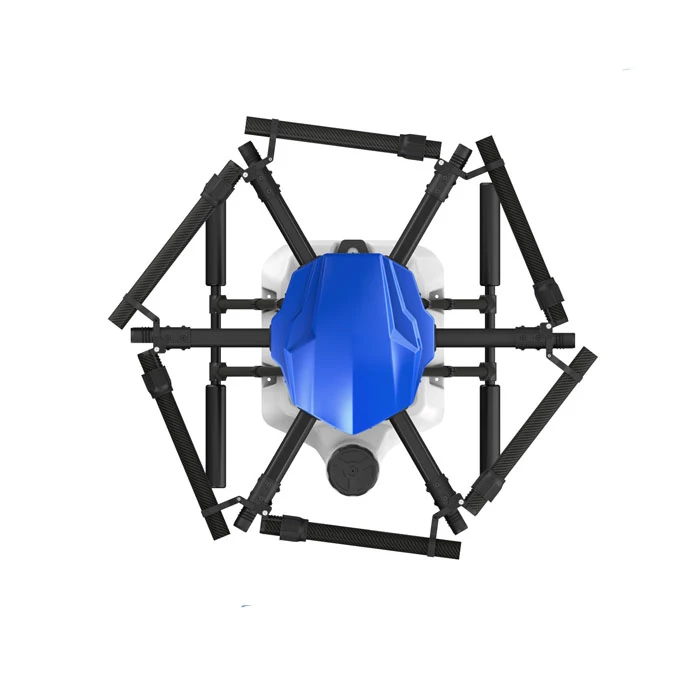

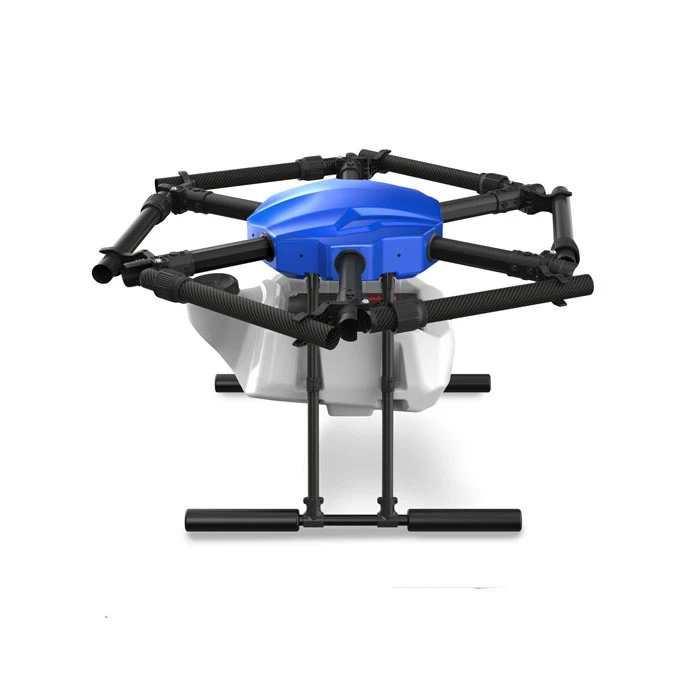

The folding parts are injection-molded and the structure is more stable and durable.The unique C-type arm fixing clip design can fix the arm with the fixing clip after the arm is folded, which avoids the problems of swinging and sagging of the arm during handling.

16L High Capacity Water Tank
Specially designed for bigger spaying aera. For the 16L water tank, it has big size liquid inlet, increase the efficiency.

Hidden PDB
The new distribution board adopts a separate and hidden design to isolate the power supply and signals, optimize the internal electromagnetic environment of the aircraft, and provide a larger space for flight control installation, which makes the wiring more concise.

Anti-collision Extension Nozzle
Lengthen the nozzle, and connect it with soft silicone, which can effectively prevent the nozzel from breaking when subjected to external force.

Cool taillights, Quick Tuning
Unique hexagon tail light design, with the flight controlller indicator built-in installation, waterproor and concise. There is USB data dable interface in the button,Settings can be adjusted without removing the canopy, more convenient.

Reinforced Power Plug
The main power cable exits from the side,and the battery interface is fixed on the side of the landing skid to avoid obstruction of the plug when replacing the battery. The plug connector is more secure and stronger.Two types of plug is optional: AS150 and XT150U. Meets the requirements for different batteries.

Reserved equipment expansion port
There are several equipement expansion ports reserved at the side and botton of the frame. It is convenient to install RTK, water pump, radar and other extended equipment under the premise of waterproof protection.

Frame Kit Package Included:
ARRIS E616 6 Axis 16L UAV Drone Frame x 1
Spraying system x 1

Combo 1 Included:
ARRIS E616S 6 Axis 10L Agriculture Drone Frame x 1
Spraying System x 1
F8 8318 120KV Brushless Motor x 6
80A FOC ESC x 6
3095 Folding Carbon Fiber Propeller x 6 (3CW+ 3CCW)
