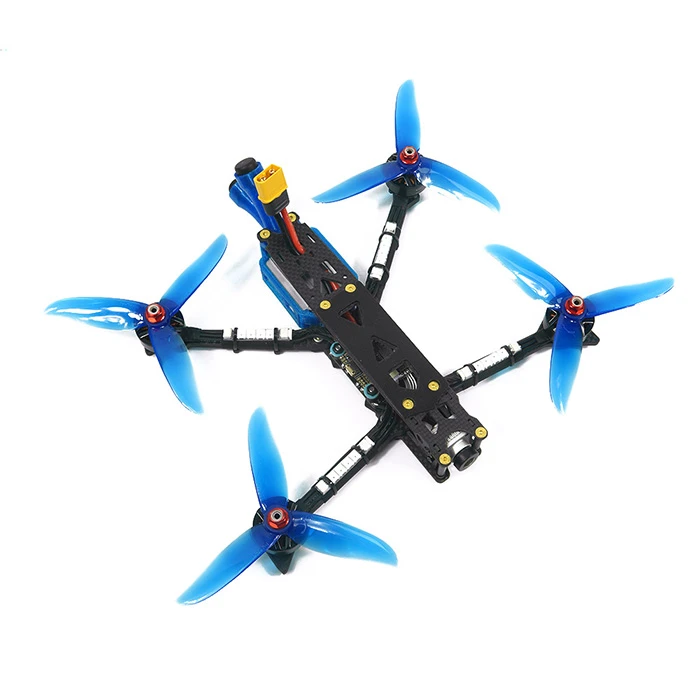

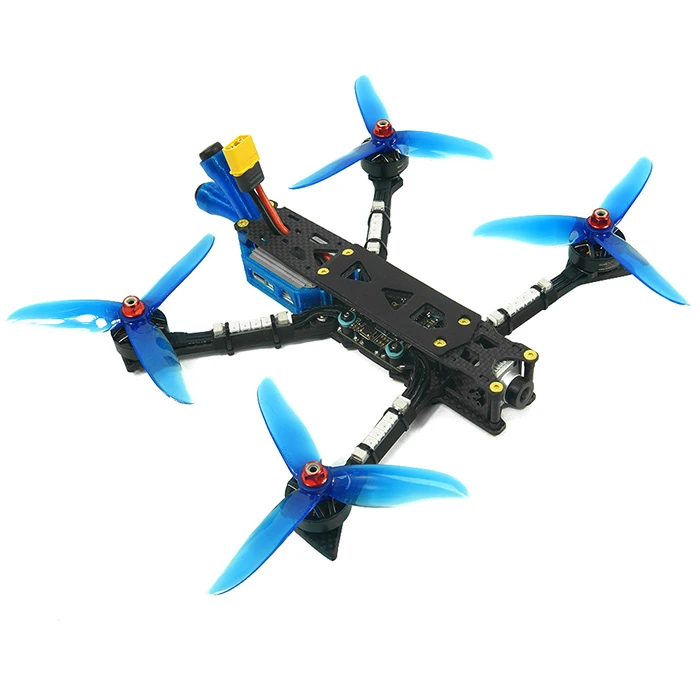

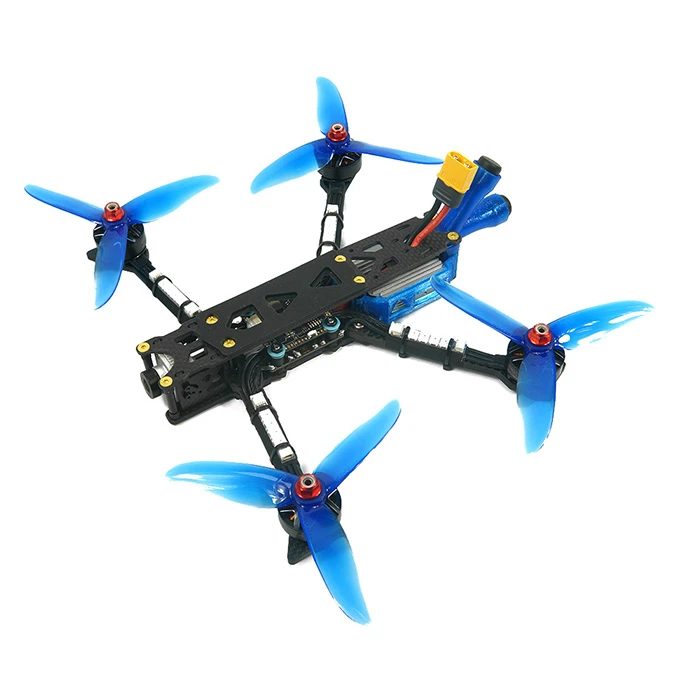

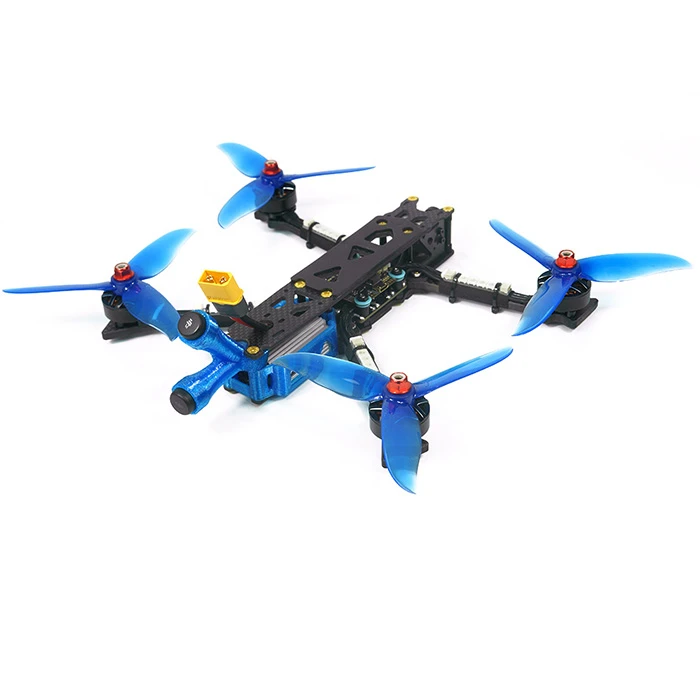

ARRIS Explorer 220 HD 3-4S FPV Racing Drone BNF With DJI FPV Air Unit

The drone can only be comapitble with DJI goggles.

Explorer drone frame comes with the lastest DJI HD VTX system that bring you unprecedented experience before.The drone weight is 363g,and light weight is more agile in racing and freestyle flight.We recommend use 4S 1500-2000mah battery in freestyle flight and 4S 1300-1600mahbattery in racing flight.



Feature:
1.Narrow body,greatly decrease wind resistance in flight and easy to finish various action.
2.The chopstick-shaped arm design,make motor have more efficient dynamic.
3.Use 12.9 level countersunk square gold screws,increase durability and beauty.
4.Lighter weight, fast speed that speed can achieve 170km/h,and more agile in racing and freestyle flight.
5.The rear arm design,record perfect video without propellers trace.
6. 3D print psrt can protect HD VTX from damage.
7.4 programmed LED lights make the drone more cool.

Specification:
Name: Explorer HD 220 Racing Drone
Wheelbase: 226mm
Thickness of arm: 5mm
Material: High-strength 3K carbon fiber board
Speed:170km/h
Flight time:about 3-8 minutes(decided by flight style)
Motor:ARRIS X2206 high efficent motor
Propellers:5045 propellers
Flight Controller:F4+40A Tower
Battery:3-4S battery(not included)

Package includes:
1 x ARRIS Explorer 220 frame kit
1X Diatone Mamba F405 F4 Flight Controller with 4in1 40A ESC tower
4 x ARRIS AR2206 2450kv motor
1 x DJI FPV Air Unit
1 X ARRIS T5045C propellers

The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.This 5.8Ghz air unit (FPV camera + VTX) provides amazing visual clarity that is able to be transmitted to your DJI Goggles through its built-in receiver module.

Specification:
Weight:45.8g
Air Unit (Camera included)
3.9 g (MMCX elbow each)

Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Camera: 27.4 × 21.1 × 20.1 mm
Coaxial Cable: 100 mm

Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm

Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms

Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2” CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm
Weight: 8.2 g

Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839
