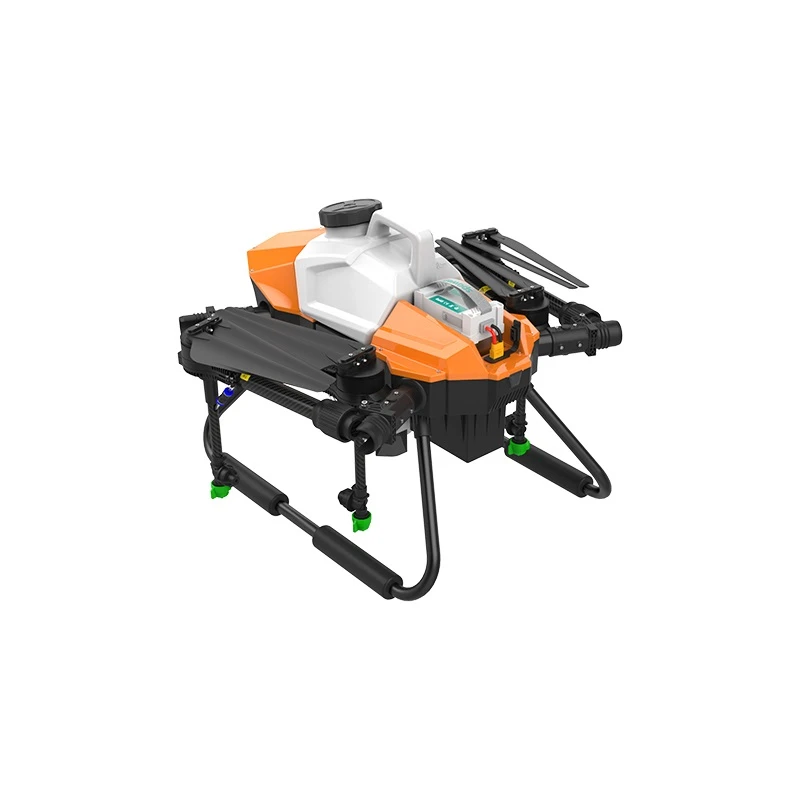

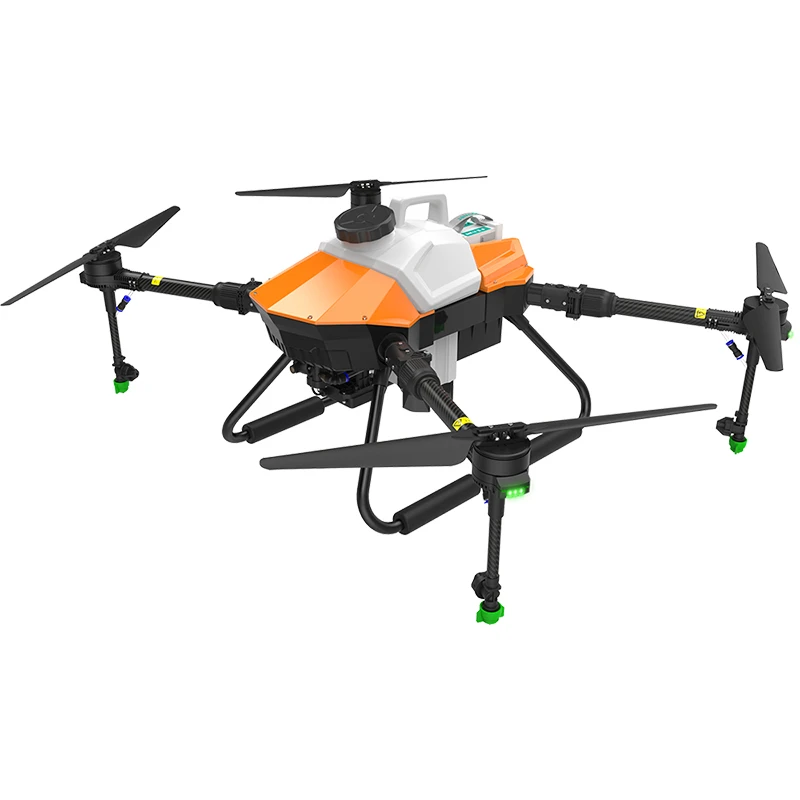

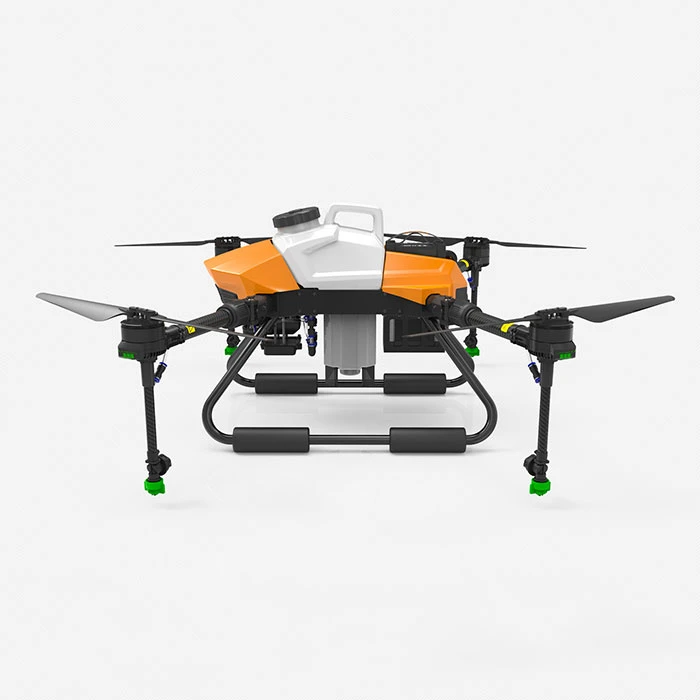

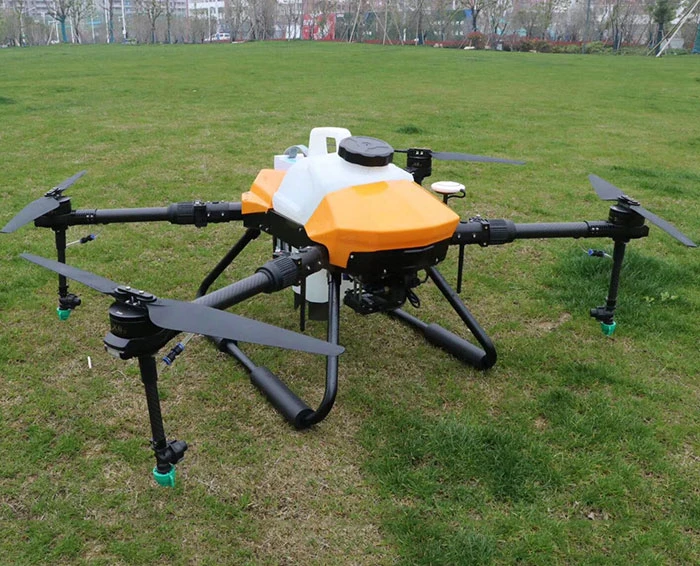

ARRIS G06 4 AXIS 6L UAV Agricultural Spraying Drone Farm Sprayer

ARRIS G06 agriculture drone is specially designed for lightweight operation needs. The effective capacity of the drone is 6L. It adopts a quick-release medicine box and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the G06.



Specification:
Item Model: G06 6L Agriculture Spraying Drone
Diagonal wheelbase: 1172mm
Size: 1580x1270x475mm
Folded Size: 605x640x475mm
Arm Diameter: 30mm
Effective Capacity: 6L
Frame Weight: 4.8kg
Frame+Spraying System Weight: 5.8kg
Frame+Power System Weight: 8.8kg
No-Load take-off weight: 11.4kg (battery weight 2.6kg is included)
Max take-off weight: 17.4kg
No-load flight Time: 17minutes (42.8V)
Full-Load flight time: 8.5 minutes (42.8V)
Spreading Width: 3.5m to 4.5m

Note: The above statistics is tested with hobbywing x6 power system, Jiyi K3a pro flight controller and Okcell 12s 8000mah battery.


Main Features:
3-Section Compact Body Design
G06 6L agriculture drone adopts 3-section compact body design: front section is flight controller, middle section is water tank and the back section is the battery. The structure is exquisite and nice looking.



Rectangular Layout Scheme
G06 6L agriculture drone adopts flat rectangular layout plan, the arm is extended to both sides to extend the nozzle spacing to the maximum extent, and thus extended the spray width. The diagonal wheelbase of the G06 is 1172mm, almost the same spray width as the E410.



Quick Release Tank + Battery
G06 6L agriculture spraying drone adopts quick release water tank and battery design. With this design, you can realize quick medicine change, battery change, easy operation, saving time and effort.

Modular Design
G06 drone frame adopts modular design, each part can quick taking apart and change, convenient to maintenance.

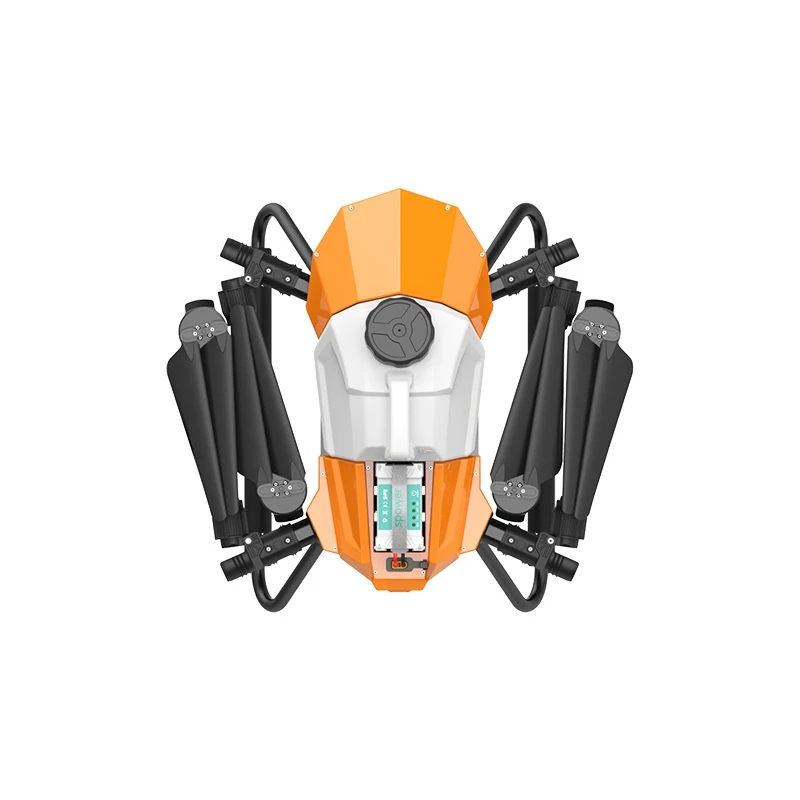

Ultra-Small Body, Fast Folding
G06 agriculture drone has ultra small body, and folding is easy. The folded size is about 640x605x475mm, super convenient to transport.

Extension Rod with Dual nozzle is optional

Terrain Radar installation space is reserved

G06 drone reserved space for FPV camera. You can install it according to your own requirements.



Frame Kit Included:
G06 Frame Kit with water Tank x 1
Spraying System x 1 (Optional)

Spraying system includes: brush water pump x 1, pump esc x 1; sprayer assembly x 4, 6mm water pipe x 1, 8mm water pipe x1, connector x 1

G06 Frame kit did not come with motor mount, the diameter for the arm is 30mm.

Combo 1 Included:
G06 Frame Kit with water Tank x 1
Spraying System x 1 (Optional)
T-MOTOR P60 170KV Motor+Flame 60A+MF2211 Propeller CW x 2
T-MOTOR P60 170KV Motor+Flame 60A+MF2211 Propeller CCW x 2

Combo 2 Included:
G06 Frame Kit with water Tank x 1
Spraying System x 1 (Optional)
T-MOTOR P60 170KV Motor+Flame 60A+MF2211 Propeller CW x 2
T-MOTOR P60 170KV Motor+Flame 60A+MF2211 Propeller CCW x 2
Jiyi K3A Pro flight controller x 1
Skydroid T10 10Channel Remote Controller x 1
