ARRIS G20 8 Axis 22L UAV Agriculture Spraying Drone

ARRIS G20 8 Axis UAV agricultural spraying drone has an effective capacity of 22L. It adopts a unique quick-release dual tank& dual battery layout scheme, embracing folding structure, 4-pump+8-nozzle spraying system and a wide range of peripheral expansion options, such as RTF, Radar, FPV camera and etc. It is one of the best choice for agriculture spraying.

Specifications:
Item Model: G20 8 Axis 22L UAV AG Drone Frame Kit
Wheelbase: 2122mm
Size: 2050x2050x643mm
Folded Size: 1107x1107x643mm
Package Size: 850x550x600mm
Tank Capacity: 11L x 2
Frame Weight: 13.3kg (included 2 water tank, 4x12S water pump)
Frame+Spraying system: 13.8kg
Frame+Spraying system+Power System: 23.4kg
Full Payload Weight: 55kg
No Load Hovering Time: 24 minutes 43V (2x12S 16000mah Smart Battery)
Full Load Hovering Time: 9 minutes 42 seconds 43V (2x12S 16000mah Smart Battery)
Working Time: 5 minutes 55 seconds 20L liquid (with 4 water pumps)

Parameter of the Spraying system:
Water Pump: 12S brushless water pump
Nozzle: Extension rod Y shape double 1.0 nozzle
Extension rod U shape double 1.0 nozzle
Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent;

Main Features:

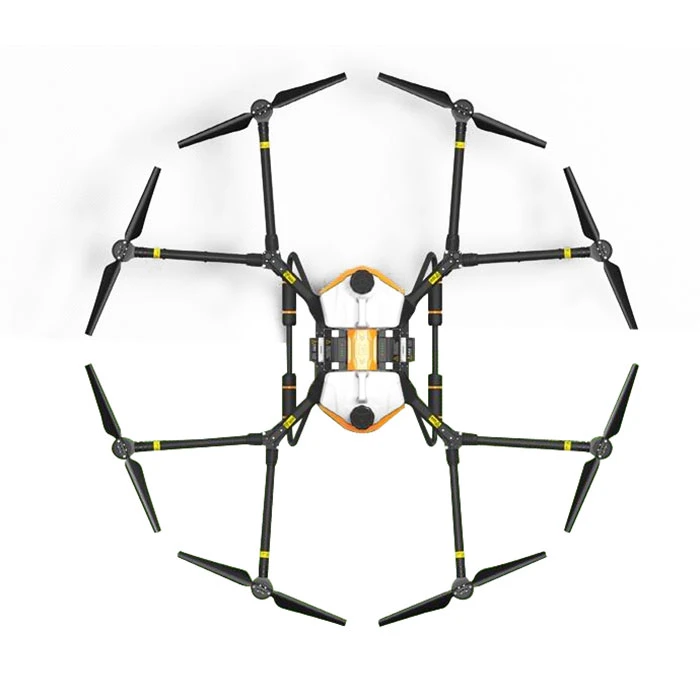

Symetrical 8-Axis Layout
The G20 adopts a symmetrical layout scheme, and the front and rear water tanks + left and right batteries can ensure the stability of the gravity center of the drone.

Quick Release Dual Tank Dual Battery
Quick release double tank+double battery can decrease the time for battery and liquid changing.

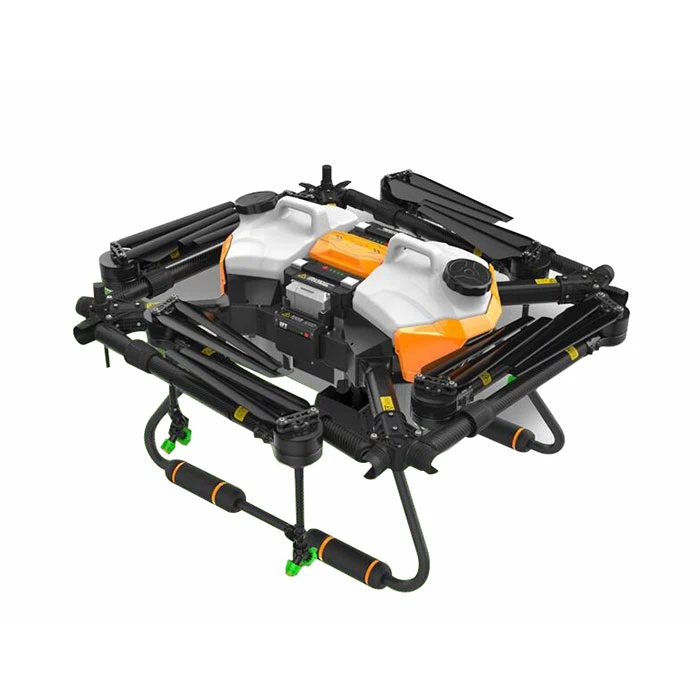

Embracing Folding
Embracing folding can minimize the volume of the drone frame after folding, which is more convenient for transport.

Stacked Tower Type Flight Control Cabin
The G20 22L drone frame adopts stacked tower type flight controller cabin. The power board, signal board, main control module, communication module, GPS module and other functions flight control modules are arranged in a stacked manner, and the wiring is clear and convenient for maintenance.

Optional Smart Battery Installation
The G20 can be equipped with a customized quick-release intelligent battery solution, and adopts a separate battery anti-lighting module, which can effectively avoid sparking when the battery is inserted and removed. We suggest the 12S 16000mah battery for it.

RTK Installation is Reserved
G20 reserved the installation space for the RTK.

Extension Rod with Dual nozzle is optional

G20 reserved space for FPV camera and the LED. You can install them according to your own requirements.

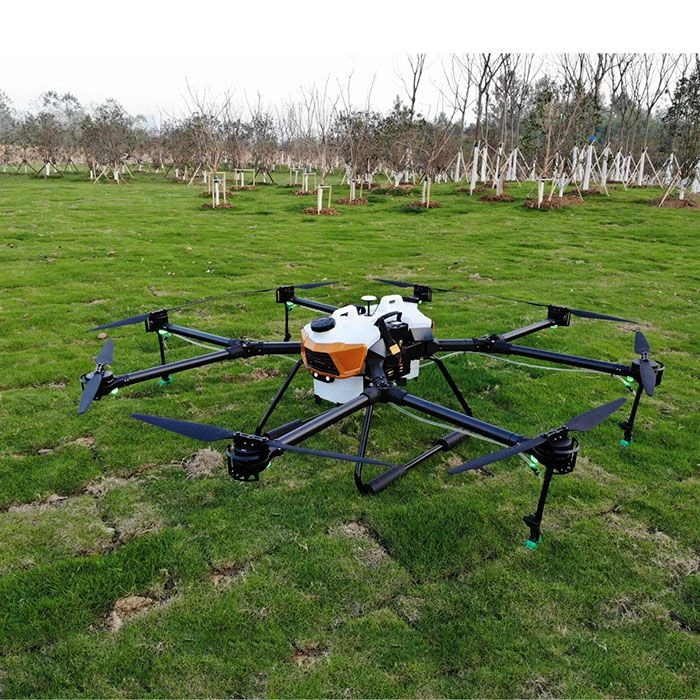

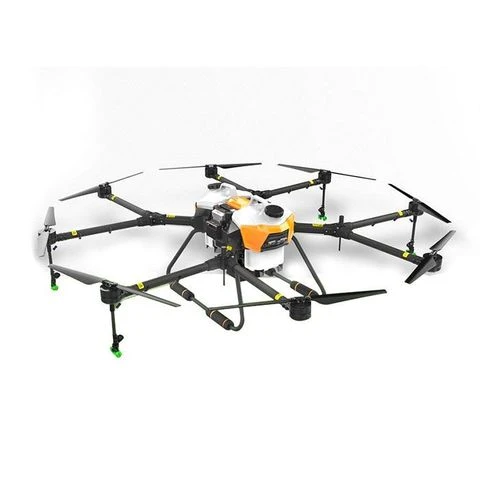

here are some pictures of the drone

Frame Kit Package Included:
G20 8 Axis Drone Frame Kit x 1
11L Water Tank x 2
Accessory Bag x 1
Accessory bag includes the RTK fixed parts, AS150U power connector, fpv camera mount plate and screw bag.

Combo 1 Included:
G20 8 Axis Drone Frame Kit x 1
11L Water Tank x 2
Accessory Bag x 1
DJI E5000 Advanced M10 Motor 80A ESC 2880 Propeller Power Combo CW x 4
DJI E5000 Advanced M10 Motor 80A ESC 2880 Propeller Power Combo CCW x 4

2 Water Pump Spraying System (Optional):
12S brushless water pump x 2
Water Pump shock-absorbing bracket
Extension Rod with Dual nozzle x 4
Pipe and other Connectors

4 Water Pump Spraying System (Optional):
12S brushless water pump x 4
Water Pump shock-absorbing bracket
Extension Rod with Dual nozzle x 4
Pipe and other Connectors
