ARRIS M1200 Long Range Heavy Payload Long Flight Time Industrial Drone

ARRIS M1200 is a 4 Axis UAV Industrial drone, which is specially designed for heavy payload, long flight time and long range industrial applications.The maximum payload of the ARRIS M1200 is 7kg, the hovering time can reach 30 minutes with 5kg payload. With expand plate, it can carry all kinds of equipement, such as thermal imaging cameras, life buoy, fire extinguisher, payload delivery systems. So it is great for power line inspections, wildlife tracking, bridge inspections, search and rescue operations, surveying, mapping, traffic monitoring and delivering parcels.

Speicifications:
Item Brand: ARRIS
Item Model: M1200
Dignotal wheelbase: 1200mm
Folding Size:
Expanded Size:
Power Supply Voltage: 12S
Motor: 8120 100KV
ESC: 80A ESC
Propeller: 30″ Propeller
Flight Controller: CUAV V5+ flight controller
GPS: CUAV NEO 3 GPS
Battery: 6S 22000mah x 2 (Not included)
Power plug: AS150
Remote Controlelr: Optional

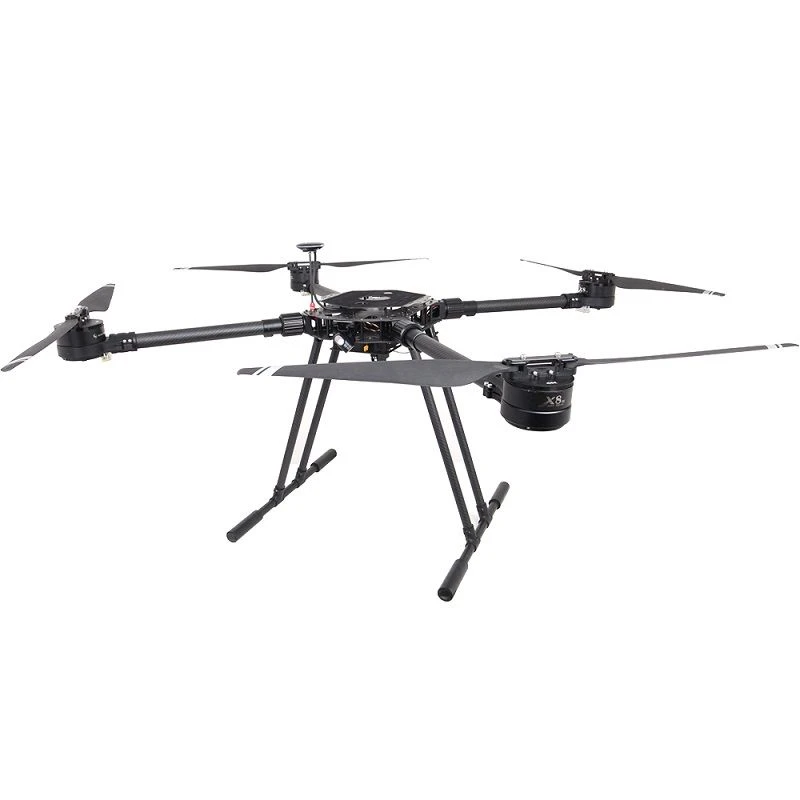

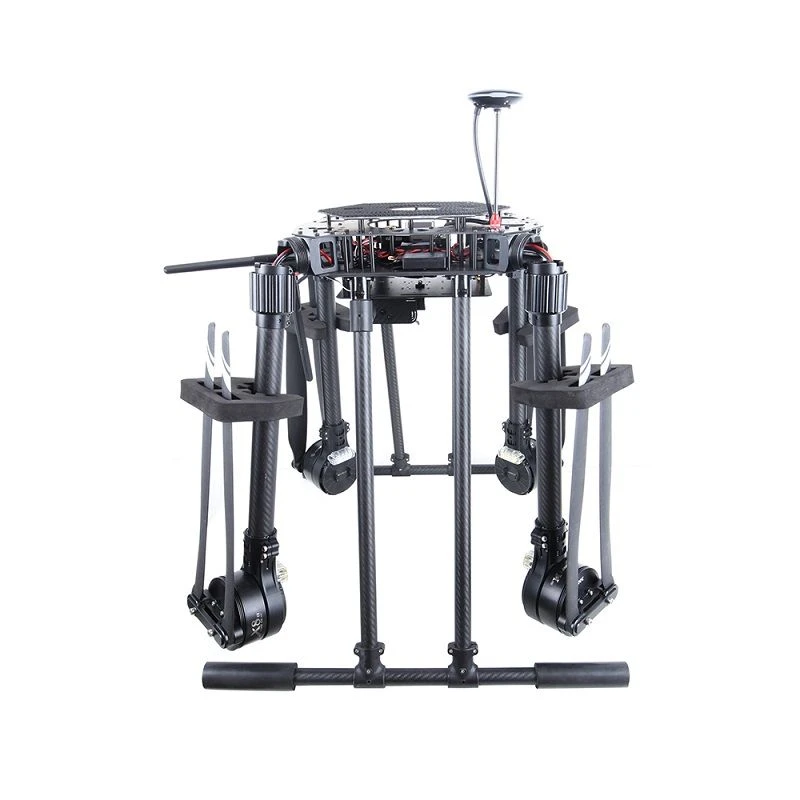

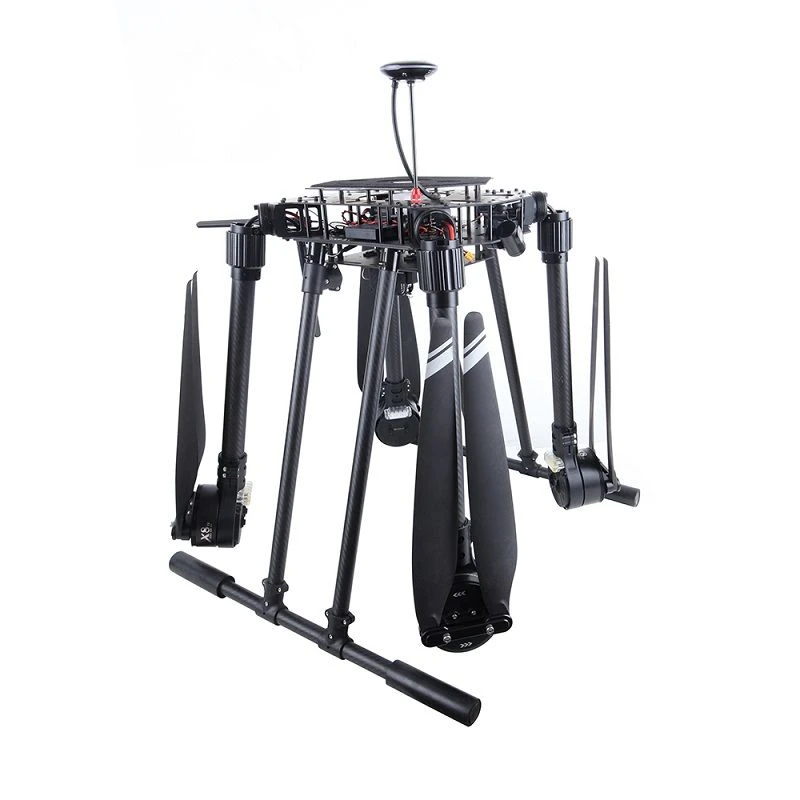

ARRIS M1200 is designed to be rugged and durable, with a strong and lightweight frame made of high strength carbon fiber and aluminum parts. It adopts classic umbrella folding method, which minimizes the size of the drone after folding, more convenient to storage or carry out.

Expanded Mounting Platform

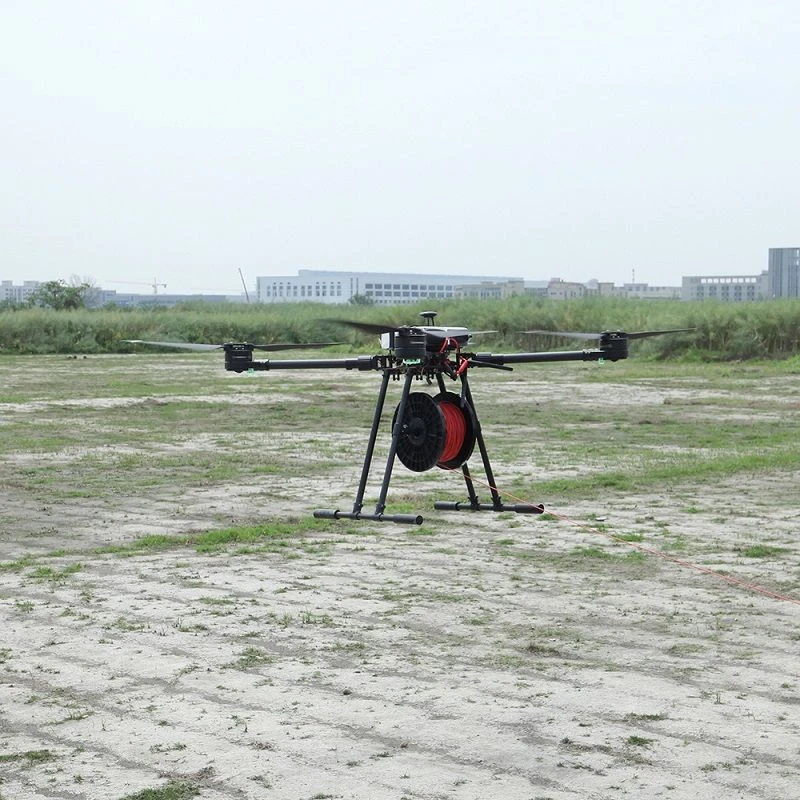

ARRIS M1200 extended the landing skid ,and it is capable of different mounting platforms, such as the thermal imaging camera, lidars, gimbal, Pod, magaphone, releasing devices and etc.

Heavy Payload, Long Flight Time

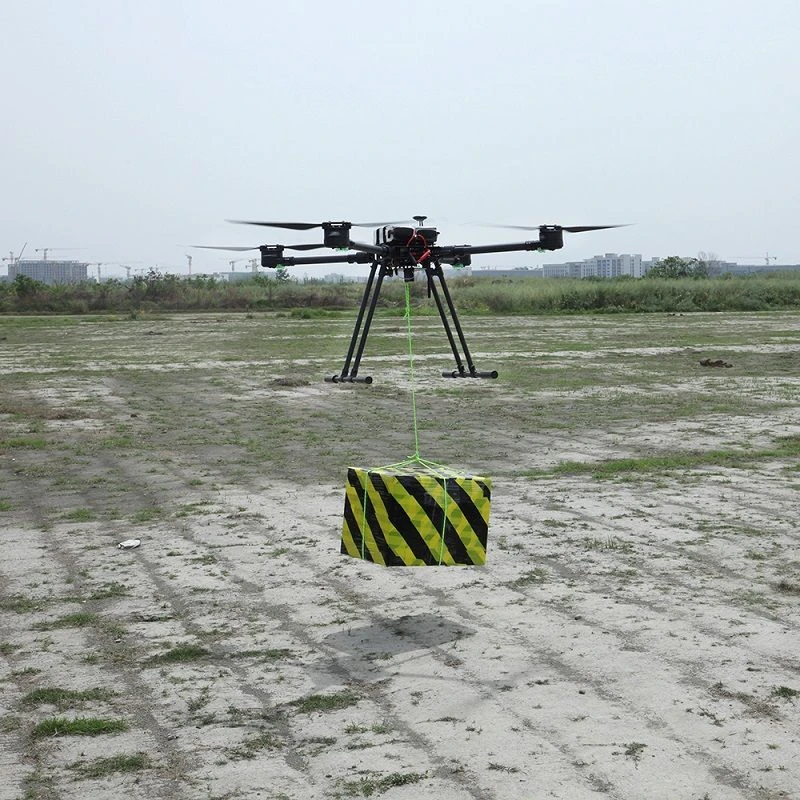

The maximum payload of the ARRIS M1200 can reach to 7kg (15 pound). With 7kg (15 pound) payload, the hovering time is . With 5kg (11lb). payload, the hovering time is 30 minutes. With 3kg (6.6 pound) payload, the hovering time is 37 minutes. We use 2 pieces of the Tattu Plus 6S 22000mah battery to power it during our test. The testing data is just for reference.

Long Range Remote Controller
Skydroid H12 2.4Ghz long range radio with 5.5 inch high brightness screen is great for rc drones, rc robots, industrial applications equipements. With the  FHSS spread spectrum technology, the full range of the Skydroid H12 can reach a long range. It has clear image, low delay, long range, strong anti-interference and other features. So it can be widely used on agriculture drones, FPV sevurity, fire protection, electric power, surveying and mapping robots, border defense, etc.

Real-time Data Transmission

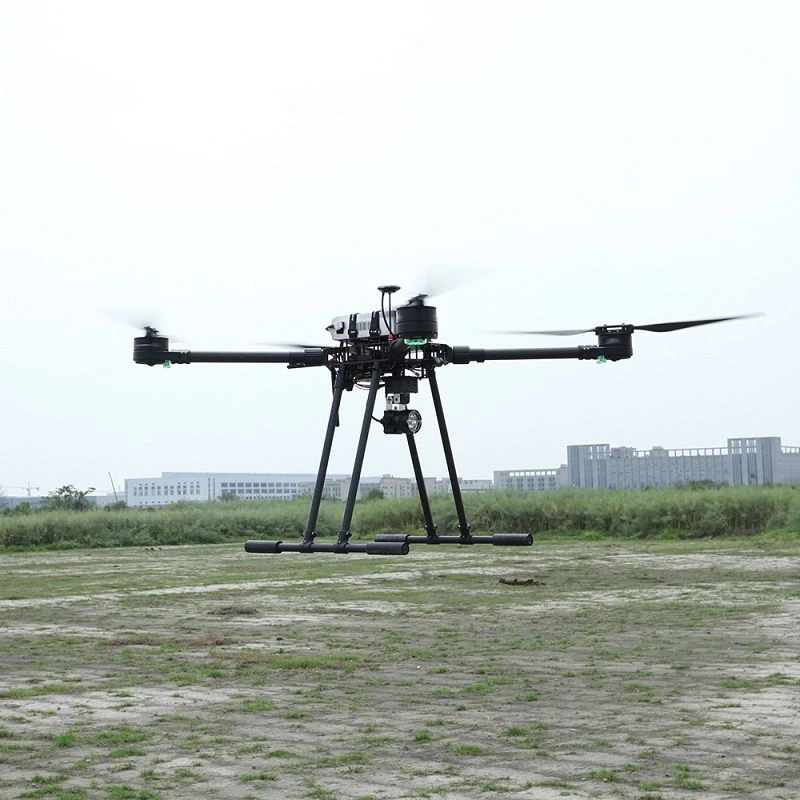

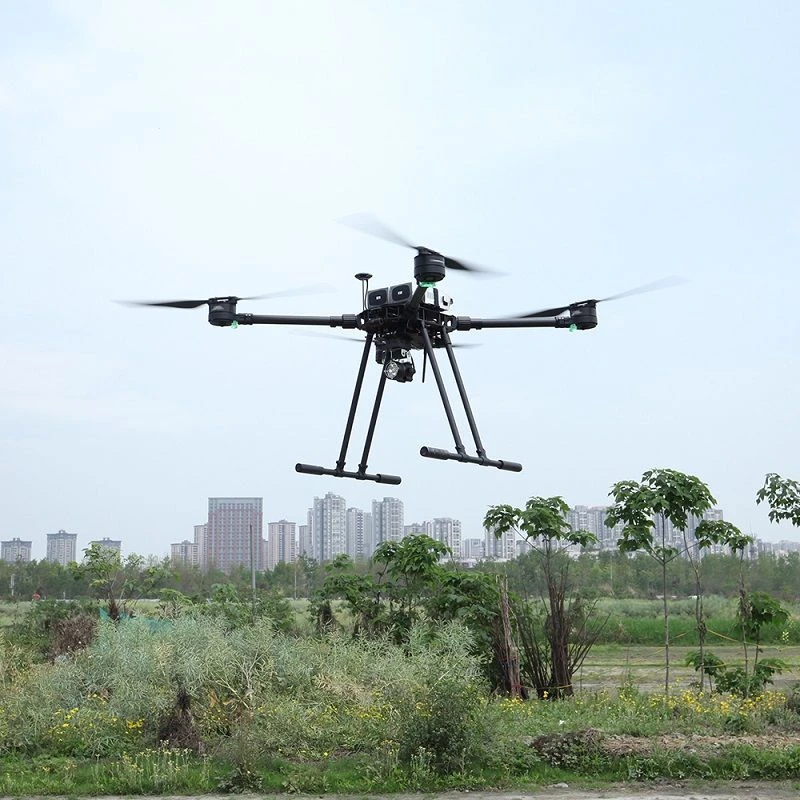

With the Gimbal camera in front of the ARRIS M1200, real-time date transmission can transmit to the FPV window in gound station. The pitch of the gimbal camera is ajustable. Operators can adjust the gimbal to check the view in front or under the drone according to your requirements. From those informaton, operators can monitor the drone’s process and make adjustments if necessary, ensuring that the drone is capturing the necessary data and operating safely and efficiently.

Route Pan
Skydroid Ground Station in the H12 radio enable you to create the waypoints first. At each waypoint, you can set the altitude and other instructions. After you load the path to the radio, the drone can fly and complete its mission according the plan-route automatically without manual control by the operator.

Package Included:
ARRIS M1200 Drone frame kit x 1
X8 Power system for M1200 Drone x 4 (2CW+2CCW)
CUAV Pixhawk V5+ Plus Flight controller with NEO GPS x 1
Remote Controller with Radio x 1  (optional)
Carry Case x 1

Other Parts Recommended:
Tattu HV 6S 22000mah battery x 2
SKYRC PC1080 Battery charger x 1

Note: 1. 2 pieces of the 6S battery and charger need to purchase seperately.
          2. Due to the built-in battery in the radio, it will send out in a seperate parcel and the shipping time is longer than usual.
          3. If you have other requirements on this drone, please send email to [email protected].
