ARRIS M900 4 Axis Industrial Drone Long Range Long Flight Time 3in1 Camera Quadcopter RC Drone For Security Inspection Aerial Photography
Original price was: $357.00.$95.99Current price is: $95.99.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
From 3.1, all the test video of the drones will be saved and upload to youtube. Customer can request to check the test video before shipping. To check the video, please send email to [email protected] with your order number.
Note:The ARRIS M900 drone doesn’t include battery and battery charger,and you need to order battery and battery charger separately!
ARRIS M900 is quadcopter specially designed for long flight requirements in industrial applications. It is great for is great for power inspection, fire seach and rescue, traffic patrols, airdrops of supplier and lifesaving equipement, aerial photography and etc. The drone is 90% assembled and adjusted well, you just need to install the arms,battery plate and landing skid, prepare the battery, you can fly.
One main feature of the ARRIS M900 is the long flight time. With the 6S 24000mah lipo battery, the take off weight of the drone is 6.7kg, the non-load flight time is about 60 minutes. With a takeoff weight of 9.8kg, the flight time is about 30 minutes.
Specifications:
Item Brand: ARRIS
Item Model: ARRIS M900
Dignotal wheelbase: 900mm
Folding size: 500x450x600mm
Expanded Size: 700x700x600mm
M900 weight: 3.3kg
Max take off weight: 10kg
Max load: 3.3kg
Power Supply voltage: 6S
Compatible battery: 6S 22.2V 12000mah to 25000mah (not included)
Flight Controller: CUAV Pixhack V5 Plus Flight Controller with GPS
Remote Controlelr: Skydroid H12 1080P Digital Video Data Transmission Transmitter
Motor: Eaglepower 5215 220KV Brushless Motor
ESC: Hobbywing Flyfun 40A ESC
Propeller：ARRIS 22″ 2272 Carbon fiber propeller
Flight Time: About 60 minutes (with 6.7kg takeoff weight) hovering
About 30 minutes (with 9.8kg takeoff weight)
Note: The obove status as tested by 6S 24000mah battery, the weight of the battery is about 3.4kg. For different battery and under different circustances, the data may not the same.
Main Features:
1. Ultra-long range digital image transmission makes the flight visual and safer.
2. Equipped with H12 1080P Digital Video Data Transmission Transmitter, which has clear image, low delay, long range, strong anti-interference and other features. The 5.5″ screen can be used as the ground station, you can see the real-time image from the camera, and plan your route on the APP.
3. The high-definition camera is equipped with night lights, which can also work in low light conditions
4. A variety of operating equipment can be mounted with LED spotlights, casters, pan-tilts, and infrared devices for various industrial applications.
5. Small size, easy to carry, only one operator can be carried and operated, which greatly improves work efficiency.
6. Professional dust-proof and waterproof remote control, water discharge level IP64, to meet various working conditions.
7. The new generation of power systems, during our long-term repeated testing, they have a super powerful endurance performance.

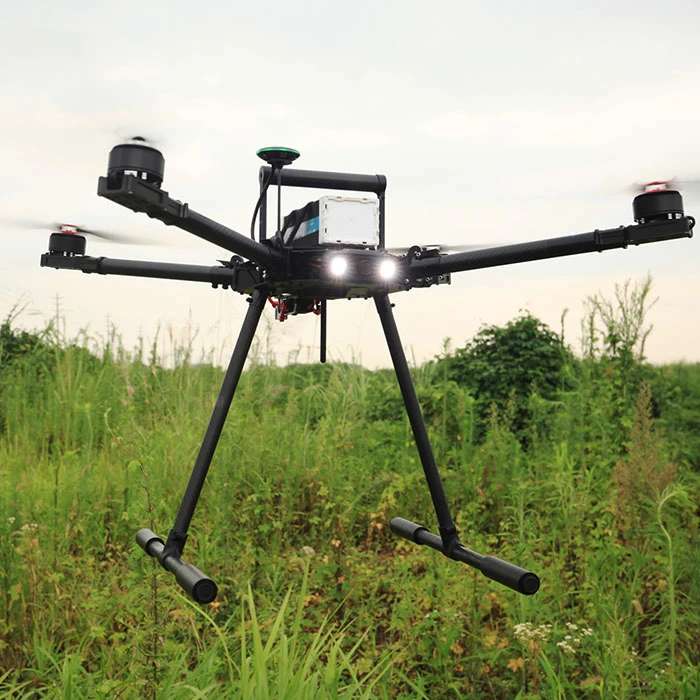

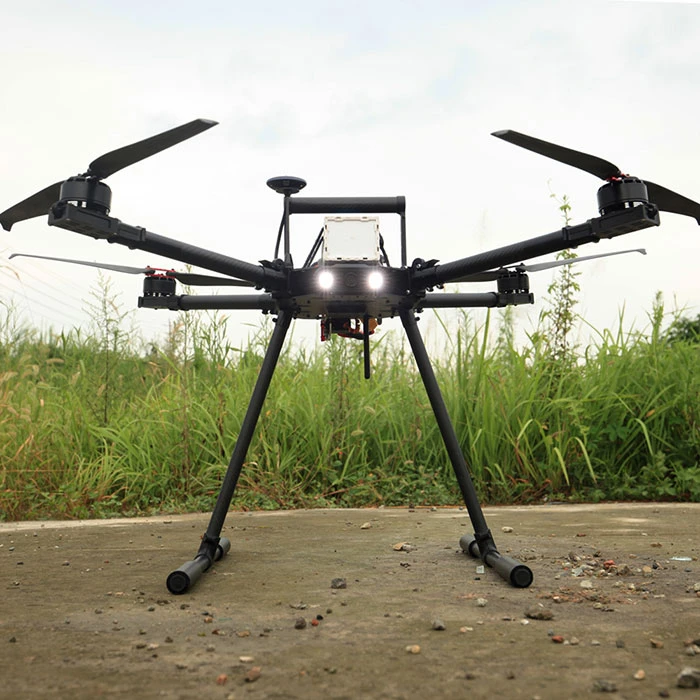

ARRIS M900 drone comes with integrated highlight LED and camera

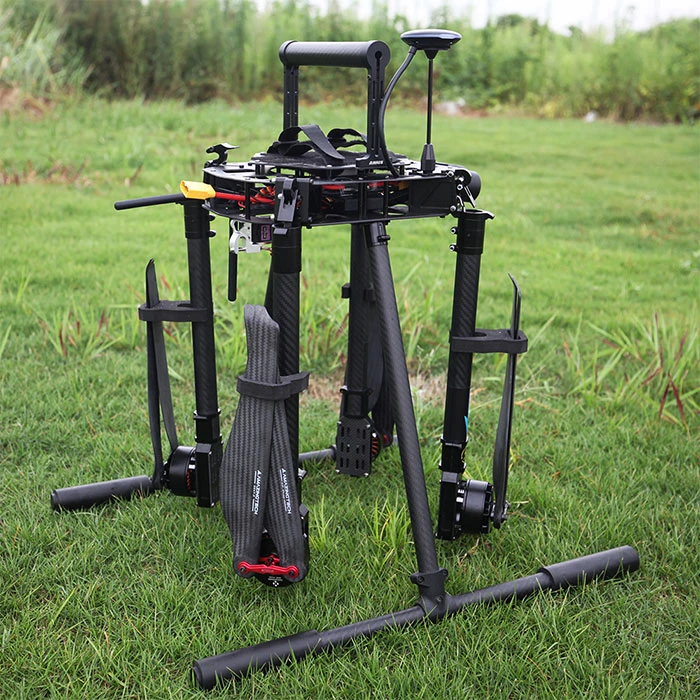

Convenient and quick release folding parts, CNC machined metal handles. Easy to carry.

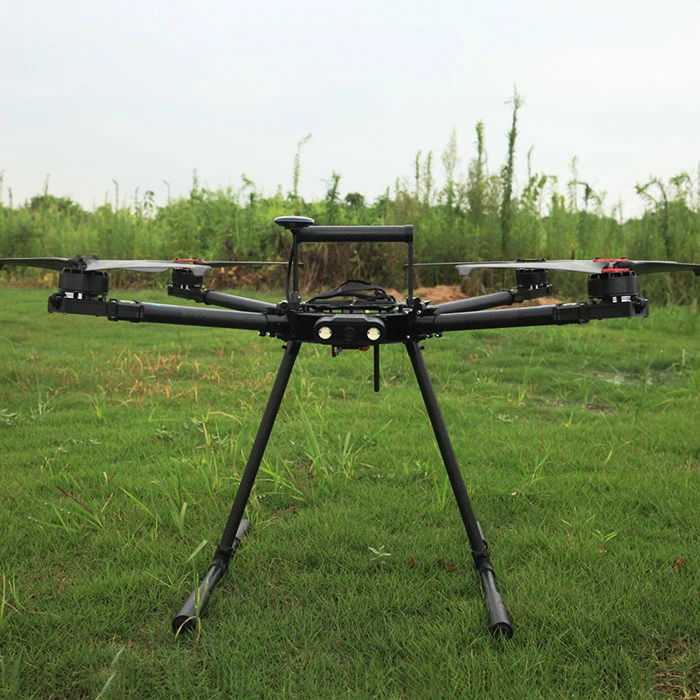

ARRIS M900 extended the landing skid, and there reserved many holes on the bottom plate, allows various equipments to be attached.
Main Features:
Detachable Core Design
The Pixhack V5+ Autopilot still adopts a modular design, which is convenient for user integration.The core part of the flight control is integrated on the V5 core. The lower plate is detachable and serves only as an external interface carrier, giving consumers a customized space. Users can design their own lower plate according to their own needs.
New Open Source Hardware Design
Pixhack V5 AutoPilot is a new high-performance flight control system based on FMU V5 open source hardware. FMU v5 open source hardware features more advanced processors than FMU V3, larger flash and RAM, and more stable and reliable sensors.
Built-in Patented Damping System
The sensor and the main board of the Pixhack V5+ flight controller are seperated and designed with a built-in high-performance shock absorption system to adapt to various severe enviroments, and the applicability is stronger.
Multi-sensor Redundancy Combination
CUAV Pixhavk V5+ autopilot comes with built-in 5 sets of sensors, the flight controller monitors the multi-channel sensor data in real time, and performs redundant switching immediately in the event of a fault, improving flight safety and stability.
Faster Processor
In terms of hardware configuration, Pixhack V5+ autopilot flight controller abandoned the original STM32F427 processor of the px4 family and selected a more advanced STM32F765 processor with a clock speed of 216MHZ and 2MB FLASH/512K RAM, higher frequency and larger RAM.The clock speed is higher, the RAM is larger,the speed will be greatly improved.
Skydroid H12 1080P Digital Video Data Transmission Transmitter Long Range Remote Controller
Skydroid H12 2.4Ghz long range radio with 5.5 inch high brightness screen is great for rc drones, rc robots, industrial applications equipements. With the FHSS spread spectrum technology, the full range of the Skydroid H12 can reach 5 to 30km. It has clear image, low delay, long range, strong anti-interference and other features. So it can be widely used on agriculture drones, FPV sevurity, fire protection, electric power, surveying and mapping robots, border defense, etc.
Pacakge Included:
1 * ARRIS M900 4-axis quadcopter frame
4 * Eaglepower 5215 EA50 220 KV brushless motor
4 * Hobbywing Flyfun 40A ESC
2 * ARRIS 22in carbon fiber propeller
1 * Skydroid H12 transmitter set
1 * CUAV Pixhack V5 Plus Flight Controller with GPS
Note: Battery and battery charger are not included .We suggest 6S 12000mah to 25000mah battery for it. The power plug we reserved on the drone is XT90. Due to the built-in battery in the H12 Radio,the radio need to be sent in a seperate parcel by other shipping method, and it takes longer time than the drone.
1. When you receive the drone, please install the parts according to the following video:
2. After assembling, please check the User guide for testing it outsdie.
General Introduction
Compass Calibration
Route Plan Mission Plan in the APP
Mission Plan Save and Upload to Radio
Mission Plan Operate Automatically
Automatically Takeoff & Land
Note: When you arm the drone, please put the throttle stick at the lowest position until the propeller rotate.
| Mode | Mode 2 (Left Hand Throttle), Mode 1 (Right Hand Throttle) |
|---|---|
| Drop System | No, Yes (CC0015)(+$30) |
| CarryingCase | NO, YES(UE0019)(+$300) |
