ARRIS MiniX VT5804 48CH 0mw/25mw/100mw/200mw/400mw OSD Switchable Video Transmitter 20x20mm Hole For RC Racer Drone Quad

Main Features:
Stable output power, long transmission range (0.5KM+@25mW; 1KM@200mW; 2KM+@600mW with stock antenna)
0mw/25mw/100mw/200mw/400mw/600mw switchable
Output power and frequency setting can be done in OSD interface through remote controller
Fast frequency lock
Ultra light weight–Only 6g

Specification:
Item name: MiniX 5804 FPV Transmitter
Power: 0mW/25mW/100mW/200mW/400mw
Channel: 48CH
Format: NTSC /PAL
Voltage: 6V-26V, +12V/170mA@200mW
Distance: ≥0.5km@25mW, ≥0.8km@100mW, ≥1km@200mW,≥1.5km@400mW
Size : 24mm×24mm×3mm
Holes: 20mm×20mm(4-M2)
Weight(without antenna): ≤3g

Output Power and Frequency Setting
1. Long press the button 10 Seconds, then short press would change the power 25mW/100mW/200mW/400mW/600mW.
2. Short Press one time, it will change the Channel ( CH1-CH8)
3. Long press 2 Senconds and then short press , will change the FR ( A-F)
4. The frequency and power can be adjusted in OSD interface through radio

Note: Please make sure the antenna has installed well before powering.

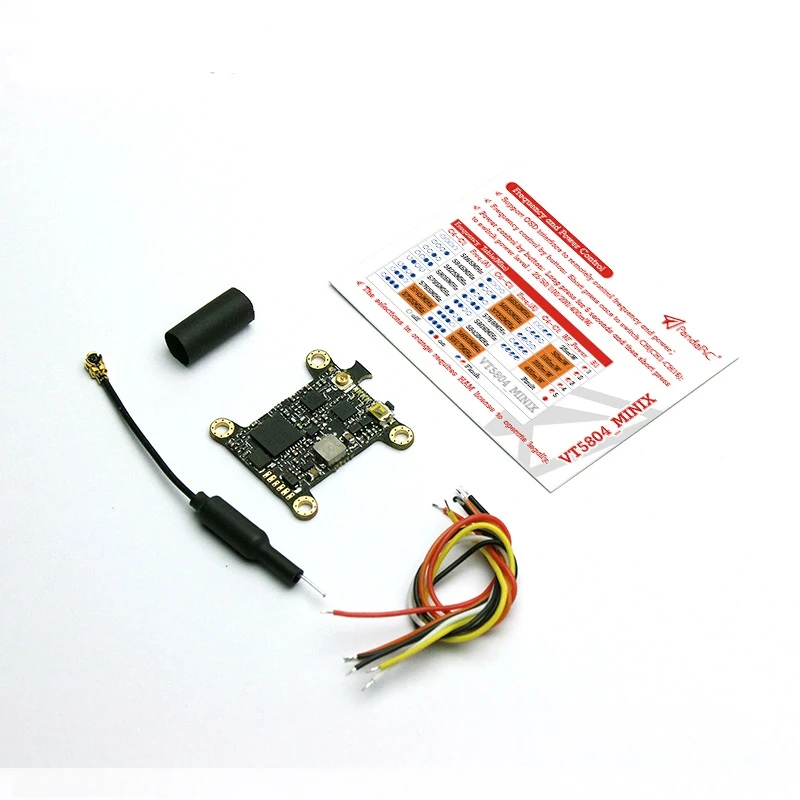

Package Included:
1 x Mini 5804 FPV Transmitter
1 x Antenna
1x Wire
