ARRIS Shadow 25 HD 3S 2.5″ FPV Racing Drone With Caddx Nebula Nano Kit Digital System

Note:The video camera is not included and you need to order it separately.

The ARRIS Shadow 25 HD racing drone is one 112mm wheelbase mini drone,and it comes with HIFIONRC F7 25A Flight Stack and Caddx Nebula Nano Kit Digital System and ARRIS AR1106 4000KV motor and Gemfan 2.5”  D63 propellers.The drone is fully assembled and tested well,and you can choose receiver according to your request.The drone comes with Caddx Nebula Nano Kit Digital System,so you only use FPV goggles.

We also have anology version with CADDX ANT camera.If you need, please click here.

Features:
1.With great liquid shock absorbing balls, it will minimize the transmission of vibration;
2.Carbon fiber frame with chamfered edge design,makes the drone more durable and nice looking;
3.Increase the air intake of the propeller guard, extremely low flying noise;

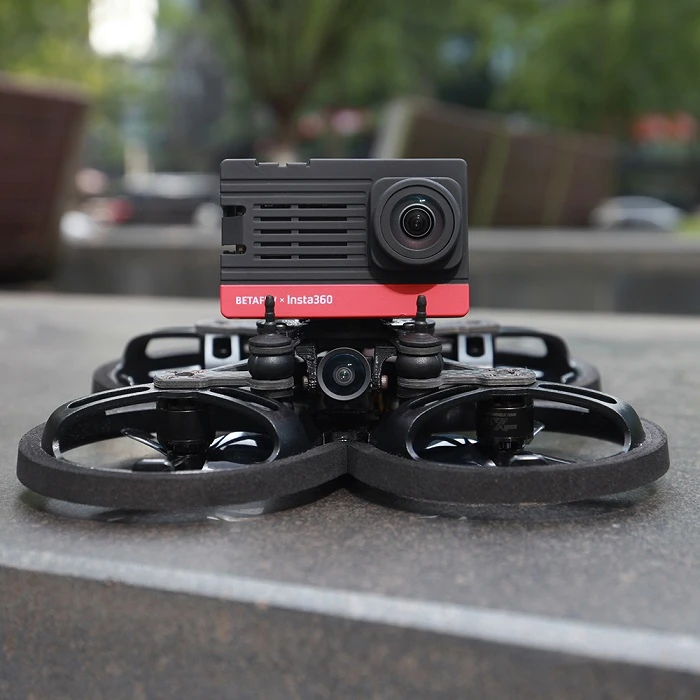

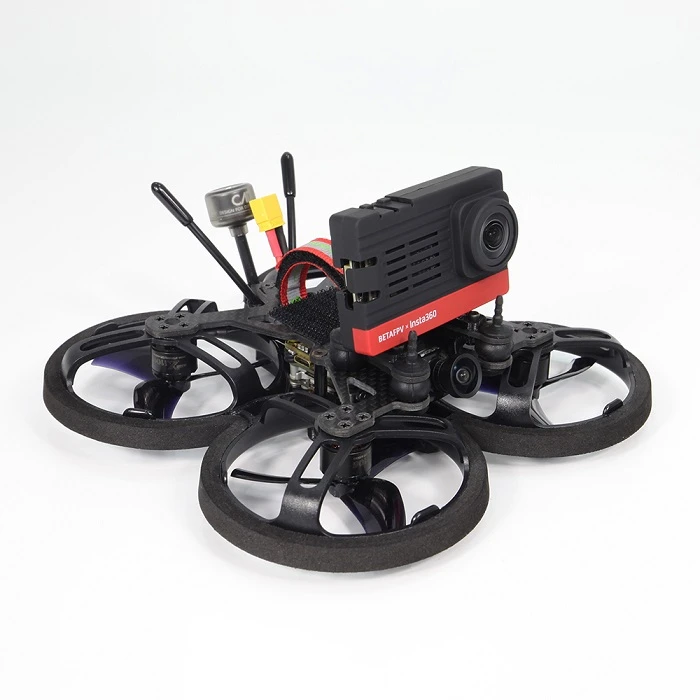

4.Compatible with SMO 4K Gopro6 lite Gopro8 lite and simillar cameras;
5.Use the new F7 AIO integrated flight controller and ESC;
6.The inverted motor design increases the airflow,and the center of gravity is more centered;
7.5MM thick EVA protective sponge for propllers guard,which effectively protects the fuselage and flight safety;

Specification:
Item Model：X-speed 112
Wheelbase:112mm
FC+ESC:HIFIONRC F7 25A Flight Stack
FPV System:Caddx Nebula Nano Kit Digital System
Motor:ARRIS AR1106 4000KV
Propellers:Gemfan 2.5” D63

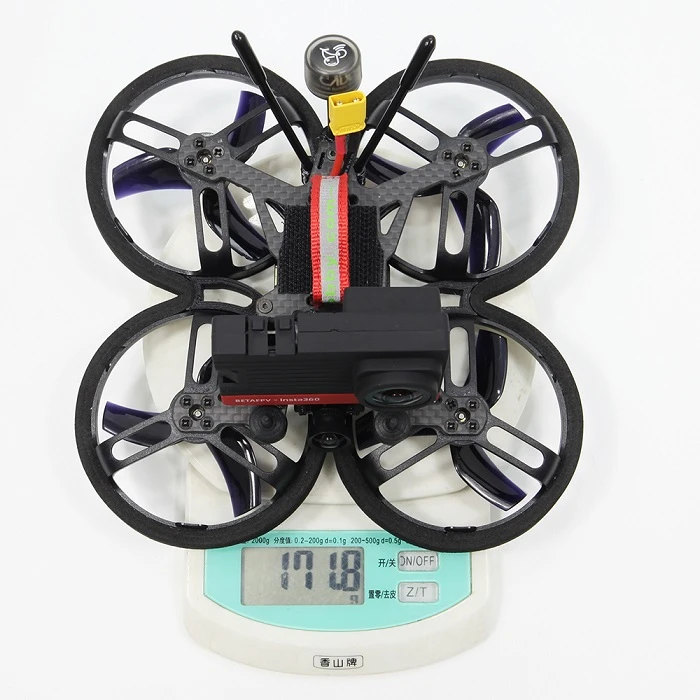

Weight:138G
Recommend Battery:3S 500-800mah battery

HIFIONRC F7 25A Flight Stack

CPU: STM32F722_Coretx-M7
MPU: MPU6000 (SPI)
UARTs: 6
Firmware: BETAFLIGHT_HIFIONRC F7 4.2
Built-in Betaflight OSD (AT7456E)
Built-in Current Sensor
Support WS2812 LED
Size: 33x33mm
Mounting Hole: 25.5×25.5mm
Weight: 7.8g

ESC
Con. Current: 25A
Input Voltage: 2-6S Lipo
Firmware: BLHELI_S GH30
Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

Caddx Nebula Nano Kit HD Digital System

ARRIS 1106 4000KV Brushless Motor

KV: 4000KV
No. of Cells(Lipo): 2-3S
Configuration: 9N12P
Motor Dimensions: 14.4 x 14mm
Stator Length: 5mm
Internal Resistance：63
No load current: 10V/0.7A
Weight: 7.5g

The Gemfan 2.5” D63 3-blade propellers gain higher flight efficienfy.

Package Included:
ARRIS Shadow 25 HD frame kit x 1
Caddx Nebula Nano Kit Digital System x 1
ARRIS 1106 4000KV brushless motor x 4
HIFIONRC F7 25A Flight Stack x1
Gemfan 2.5” D63 Propeller x 4 (2CW+2CCW)
