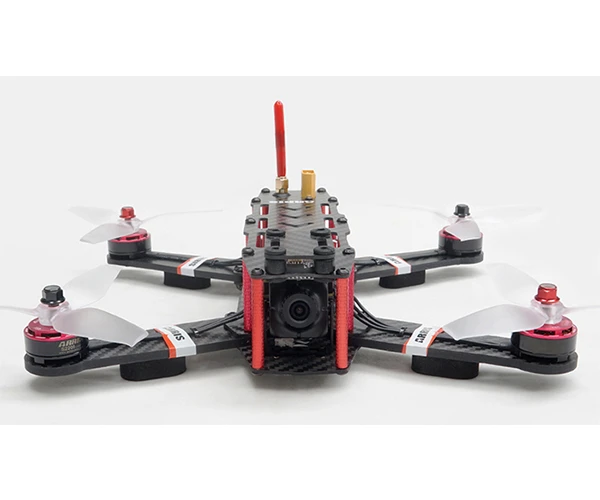

ARRIS X-Speed 250B V4 FPV Racing Drone BNF

ARRIS X-Speed 250B V4 is the latest version of the ARRIS X-Speed drone. It comes with Flycolor Tower w/ 30A 4in1 ESC + F4 + OSD + PDB, ARRIS S2205 2300KV brushless motor,5045 high efficiency 3 blade propeller,arris 1200tvlcamera,5.8g 200mw FPV TX and antenna. The receiver is optional, you can choose the one compatible with your radio. The quad is fully assembled and tested it. Bind and fly.

Main Features:
1. Simple structure frame installed with tower structure ESC/PDB, easy to assemble and easy to repair.
2. Big inner space, 268mm wheeabase, 6inches propeller and other equipements is compatible
3. The tower comes with integrated OSD, no need to install it separately
4. The angle of the FPV camera is adjustable from 0 to 45 degree
5. 4mm thick arms, super strong and durable
6. Newly released high efficiency S2205 2300KV motor provides you better performance and longer working life

Specifications:
Dimension: 7.88 x 9.35 x 2.63 (inches)
Diagonal Wheelbase: 268mm (10.55inches)
Flight Controller: F4 flight controller
Frame Material: Carbon/glass fiber composited sheet
BNF weight: 400g

Camera:arris camera
FPV TX: 5.8G 200mw 32CH
Antenna: 5.8G Antenna
Flying Time: 10min hovering

One of the main change on the ARRIS X-Speed 250B V4.0 is the Raptor-S tower we use. Why we choose it?

1. The two layers tower structure ESC is highly integrated design products,decreasing the interference caused by signal transmission. The factory optimized the PCB layout and the pins, connecting all the electronic components on the board,avoid soldering and wiring.On this tower,the pins connect the flight controller board and the ESC board,maximally decrease the interference caused by signal transmission,

2. The Tower structure design could protect the ESC well during the flight.ESC is one of the most easily broken parts on the drones except the propellers. According to our experience,some of the ESC were damaged by the propeller rotation or tree brunch cut after the damage when it installed on top of the motor arm.Some of the ESC were damaged due to the broken of the motor arm during the crash.For this tower, the esc integrated in the tower which installed in the middle of the quad frame, the ESC’s can be protected quite well.

3. Raptor S tower makes the assembling of the fpv racing drones more and more convenient,the wires tidy and concise.Using this tower, you just need to solder the 4 motor wires to the holes, so easy. The lower board integrated the 4in1 ESC,the power port is in the center,bulge a bit over. This could not only make the connecting wires more convenient, but also avoid to interrupt the esc output port on the two sides. The upper board F4 flight controller board integrated with the OSD. There is also 5V,12V and BATV for powering the camera,video tx,LED and other equipments.

4. Small size and light weight tower fit for all sizes of the quad,and make the center of gravity of the drone lower. The weight of the raptor 390 tower is only 22g, with two layers tower structure, the height is only 15.1mm.

And there are two plates on the tower,one is 4in1 ESC, and the other is the FC flight controller. If some of the components on the tower damaged, you just need to change one plate of the tower. Also it integrated with the OSD on it, you do not need to install extra OSD on the F4 separately.

ARRIS X-Speed 250B comes with the latest version motor–ARRIS S2205 2300KV brushless Motor.

Main Features:

1. Knul Design: This design ensure the stability of prop installation.
2. High quality magnets: ARRIS S2205 2300KV brushless motor adopts N52SH curved magnets to ensure the motor have more power and efficiency
3. NSK bearing: ARRIS S2205 2300KV adopts 0.2mm Japan imported stators, ultra hardness aerospace aluminum and precision cnd, which make the motor more efficiency and prolong the working life.
4. Low center design: The height of the ARRIS S2205 allows a lower center of gravity closer to the mounting point, with this, the drone can fly smoothly.
5. Cooling system: The cooling system make the motor more air flow.
6. Hollowed steel prop shaft: with this, you do not need to worry of damaging threads during crashes.



The propeller we adapts on the X-Speed 250B V3.0 version is theARRIS 5043 high efficiency 3 blade propellers. It is very powerful and well balanced. It has 10% higher efficiency than normal propellers. Perfectly suitable for FPV racing.

The diagonal wheelbaseof the ARRIS X250B frame is about268mm, and the inner space between upper plate and lower plate is quite big. Customer can upgrade or do some modifications as you like. For example, you can install 6 inches propellers on it.

As all we know, the arm is easily broken part during the crash. ARRIS X-Speed 250B adopts4mm thickness arms, the arm is made of carbon and glass fiber composited plate,and there is almost no hollow design cut on the motor arm, so the weight is a little heavier than the 3mm one, but it improves the strength of the drone.

Now we upgrade the camera to arris 1200tvl camera, one of the most popular fpv camera on fpv racign drones.The fpv camera angle i adjustable,the angle adjustable range is 0 to 45 degree. (pitch up)This could meet the requirements in different situation.



High Brightness LED. ARRIS X-Speed 250B comes with a high brightness LED .And you can change the color of the LED light through the DIP switches. 7 color for you to choose.



ARRIS 5.8g 200mW 40-CH video TX pre-assembled.The ARRIS TS5823S transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must for those looking save size and weight while still getting good performance. The ARRIS TS5823S is transmitting a full range of 40 channels and only weighs 10g. It’s perfect for a wide range of aircraft!With a goggle or monitor in hand, you can begin your FPV journey.

Package Includes:
1 xARRIS X-Speed 250B V3 Racing Quad Frame
2 xARRIS S2205 2300KV Brushless Motors CW
2 xARRIS S2205 2300KV Brushless Motors CCW
4 xARRIS 5043 3-blade Propeller (2CW + 2CCW)
1 xFlycolor S-Tower w/30A 4 in 1 ESC + F4 + OSD + PDB
1 xarris Camera
1 x5.8G 200mw 32CH FPV TX
1 xFPV Transmitter Antenna
1 xLED
