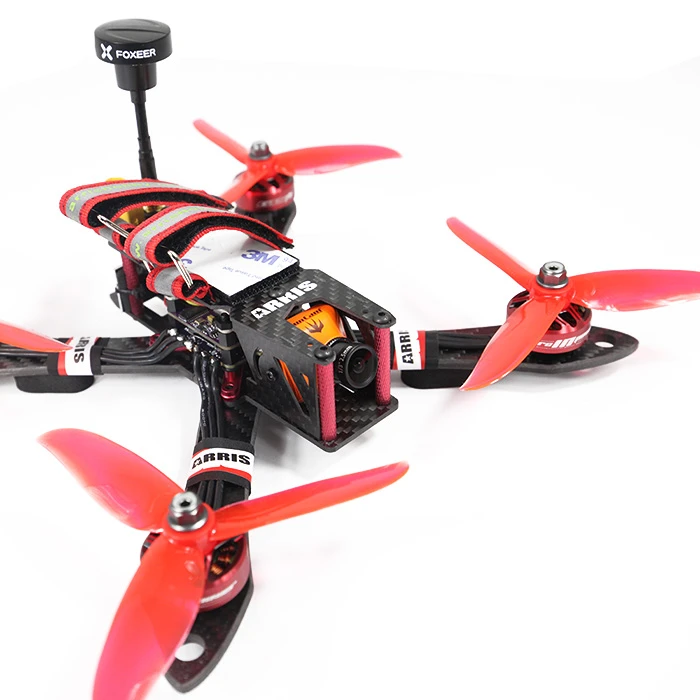

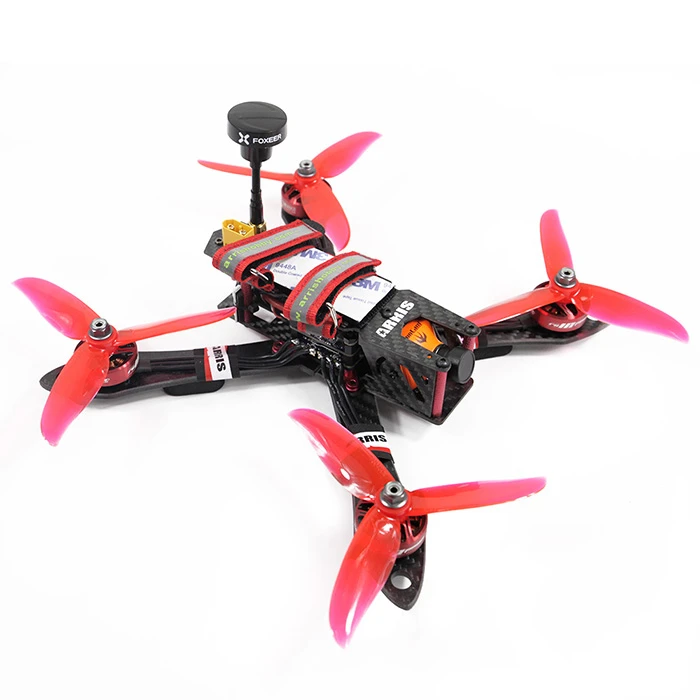

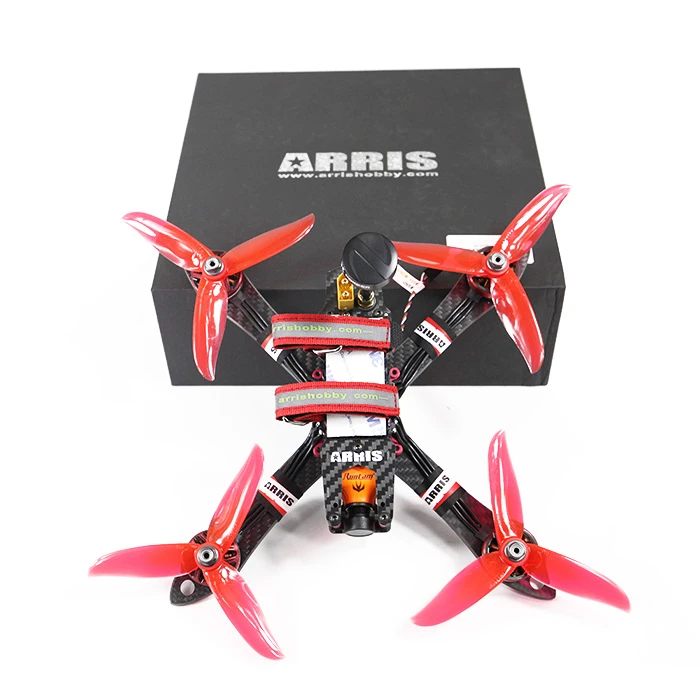

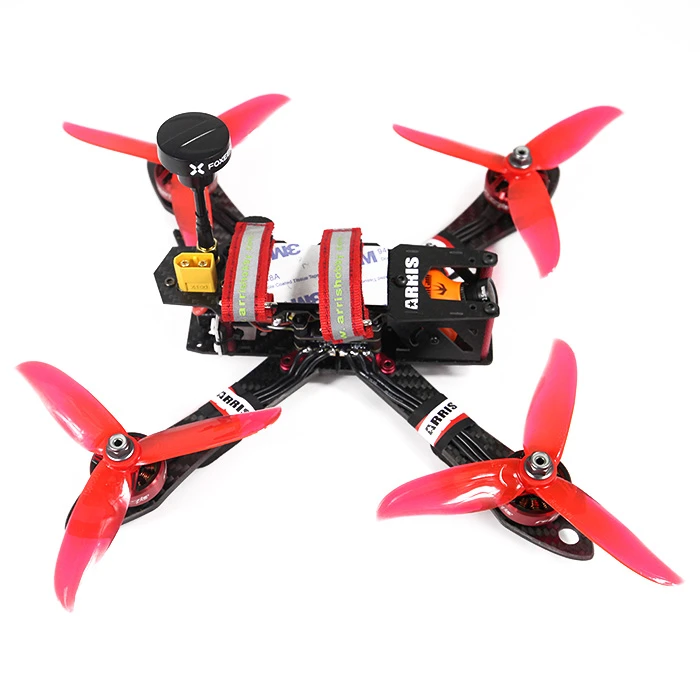

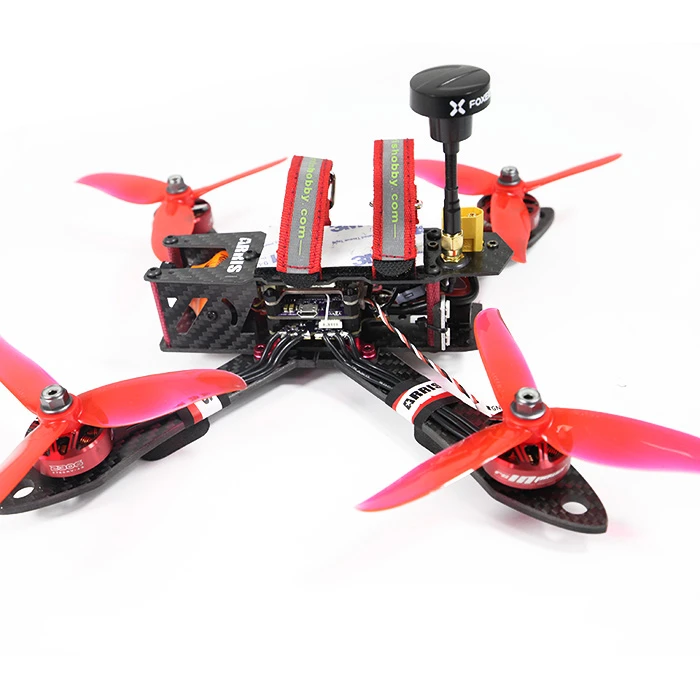

ARRIS X220 FPV Racing Quad PNP Version

Note: The X220 professional version drone comes with RCinpower GTS V2 2306 2750KV motor and x-tower F4 flight stack.

For ARRIS X220 220mm FPV racing drone BNF (professional version), it comes with EMAX RS2306 2400kv high quality brushless motor,Flycolor Raptor S-Tower BHeli-S 2-4S 4-in-1 30A ESC + F3 + PDB + OSD board,5042 high efficiency propeller,Runcam swift 2 mini camera，5823S 5.8G 300mW 40CH mini video TX. It is assembled and tested before leaving the factory. When you receive it, you need to install your own receiver on it and do some settings in Betaflight, then you can fly.
The main feature of the ARRIS X220 is the “X” symmetrical design,light weight,simple structure,durable and agile. And for the professional version, we just choose the best equipment for it.

Specifications:
Diagonal Wheelbase: 220mm
Flight Controller: F3 flight Controller
Frame Material: Pure Carbon Fiber
BNF weight:
About 356g
Camera: Runcam Swift 2 FPV camera
FPV TX: 5.8G 200mw 40CH
Antenna: 5.8G Antenna
Flying Time:about 10 minutes hovering

The ARRIS X220 comes with the chamfered edge design on the arm, which gives the quad a sleek look.It comes with 4mm pure carbon fiber plate arm, make the frame super strong.The ARRIS X220 is made of pure carbon fiber with alloy pats, the weight is quite light.The structure of the X220 is simple, it is easy to maintain.

Flycolor Raptor S-Tower comes with BLHei-S 4-in-1 ESC and F3,PDB and OSD. The ESC comes with EFM8BB21F16G MCU, support Dshot / Multishot / Oneshot,support high KV motor, can support at most 500k eRPM.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
The default firmware of the F3 is betaflight,it supports PPM, PWM and SBUS remote control / receiving mode. Built-in current meter, OSD directly display the real-time current without any additional connection.
With the tower on the ARRIS X220, the wires are tidy and concise. And it is more convenient to maintain in the future.

Emax RS2306 2400KV Brushless Motors-As the latest fpv racing drone motor from Emax, the RS2306 2400KV motor upgraded larger stator with Japan NSK bearings, 0.15mm silicone steel laminations reduce eddy current loss. With the 1.8mm arc magnets, it shortens the motor start time, accelerates faster…

ARRIS 5042 propeller–It has bigger windward area, well balance and strengthen root, and the efficiency is 10% higher than normal propeller.

RunCam Swift 2 micro camera is the latest fpv camera released by Runcam for FPV racing drones. One of main feature of the Runcam swift 2 camera is the integrated OSD, with this, it can displays the input voltage of the camera or the battery voltage.And the angle is adjustable here.

ARRIS 5.8g 200mW 40-CH video TX pre-assembled.The The ARRIS TS5823L transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter with LED display! The ARRIS TS5823L is transmitting a full range of 40 channels and only weighs 6.5g.

Aomway 5.8G 3DBi 4 Leaf Clover Antenna-The newest antenna has reinforcement around the clover leaf base for preventing unwanted damage, and now new cover (top piece only but is firm enough and keep weight light) is added to the package to protect antenna wires when installed on drones.

ARRIS X220 has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable)according to CF parameter-adjustment software. In addition, you can also locate your racing drone through triggering the buzzer with the switch D on the transmitter.

Package Include:
1 x ARRIS X220 FPV Racing Quad Frame
4 x EMAX RS2306 2400KV Brushless Motor
1 x Flycolor Raptor S-Tower BHeli-S 2-4S 4-in-1 30A ESC + F3 + PDB + OSD
4 x ARRIS 5042 3-blade Propeller
1 x Runcam Swift 2 FPV Mini Camera
1 x 5.8G 200mw 32CH FPV TX
1 x Aomway FPV Transmitter Antenna
1 x ARRIS Buzzer
2 x Battery straps

Note: Remote Controller,Battery and Battery Charger are sold separately.
