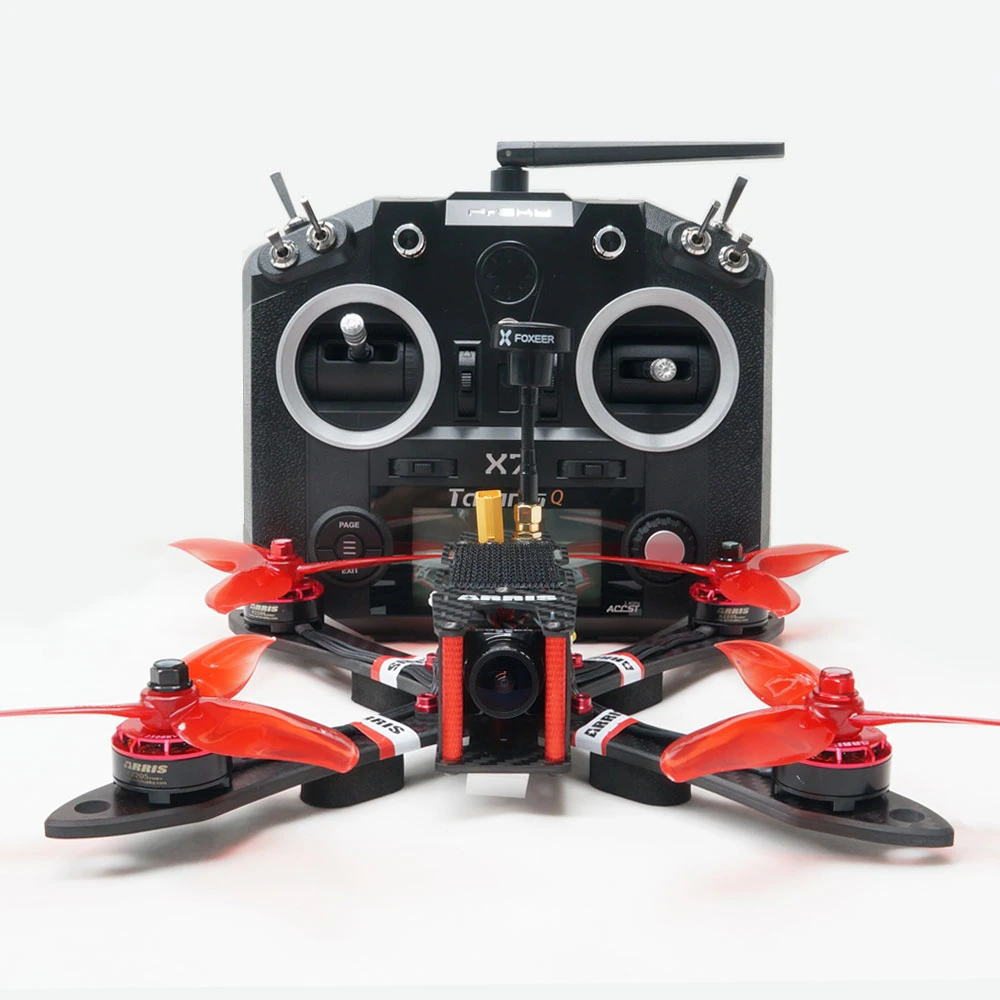

ARRIS X220 V2 220MM 5 Inch FPV Racing Drone RTF With Frsky QX7 Radio

ARRIS X220 V2 220mm FPV racig drone RTF is fully assembled and tuned, it is ready to fly. It is one of the best racing quad for freestyling. ARRIS X220 RTF comes with ARRIS X2206 2450kv high quality brushless motor,Flycolor Raptor S-Tower BHeli-S 2-4S 4-in-1 30A ESC + F4 + PDB + OSD board,Dalprop T5045C high efficiency propeller,ARRIS Mini pro fpv camera,5.8G 48CH long range mini video TX,Frsky QX7 radio with receiver and 4S 1500mah 50C lipo battery. Before leaving the factory, the RTF is tuned and tested by the technician.

Specifications:
Diagonal Wheelbase: 220mm
Flight Controller: F4 flight Controller
Frame Material: Pure Carbon Fiber
BNF weight:329.5g
Radio System: Frsky QX7 radio
Camera: ARRIS Mini Pro FPV camera
FPV TX: 5.8G 48CH switchable VTX
Antenna: Foxeer Pagoda Pro antennaa
Flying Time: About 12 minutes (hovering)
Battery: ARRIS 4S 1500mah 50C Lipo

The main feature of the ARRIS X220 is the “X” symmetrical design,light weight,simple structure,durable and agile.The ARRIS X220 comes with the chamfered edge design on the arm, which gives the quad a sleek look.It comes with 4mm pure carbon fiber plate arm, make the frame super strong.The ARRIS X220 is made of pure carbon fiber with alloy pats, the weight is quite light.The structure of the X220 is simple, it is easy to maintain.

Flycolor Raptor S-Tower comes with BLHei-S 4-in-1 30A ESC and F4,PDB and OSD. The ESC comes with EFM8BB21F16G MCU, support Dshot / Multishot / Oneshot,support high KV motor, can support at most 500k eRPM.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
The default firmware of the F4 is Betaflight_OMNIBUSF4SD,it supports ?PPM,SBUS,SPEKTRUM 1024/2048 etc. remote control / receiving mode. Built-in current meter, OSD directly display the real-time current without any additional connection.
With the tower on the ARRIS X220, the wires are tidy and concise. And it is more convenient to maintain in the future.

ARRIS X2205 V2 2300KV brsushless motor is high end brushless motor specially designed for high performance fpv racing drones.It adopts brand new M5 steel shaft, improving the structure strength. It had been upgraded to centrifugal fan design, optimizing the heat dissipation.It also adopts original Japan NSK bearing and N52 tile-shape magnets to ensure the power and quality of the motor.

DALPROP cyclones T5045C series propeller is newly released high end dynamic balanced prop for fpv racing drones.
The propeller is made of imported PC,the strength is high, and the root is thickened,which make the propeller is not easily broken. The smooth surface design on the prop decreased the windage resistance,increasing the efficiency of the propeller.



GoPro and Sports fpv camera can mount on the ARRIS X220, the mounting set is sold separately.You can check here. If you mount the GoPro or FPV camera on it, the XT60 plug for the battery need to install on the bottom plate.

ARRIS VT5804 48CH 0mw/25mw/100mw/200mw/400mw/600mw Switchable Video Transmitter.It has stable output power, long transmission range (0.5KM+@25mW; 1KM@200mW; 2KM+@600mW with stock antenna), 6 power switchable,Output power and frequency setting can be done in OSD interface through remote controller and it weighs only 6g, perfect for fpv racing quads.

Below is the video to show how to adjust the vtx through your radio

Foxeer Pagoda Pro 5.8G mini antenna. The body adopts imported PC+ABS material, can withstand high strenghth impact. Double-jacket semi-rigid cable for heavy impact resistance. Lower feeder loss, easy to install, can be bent at any angle and maintain.

Highlight LED on the rear of the drone.

ARRIS X220 has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable)according to betaflight parameter-adjustment software. In addition, you can also locate your racing drone through triggering the buzzer with the switch SC on the transmitter.

There are three flight mode on the radio: Attitude Mode (Self-level mode), Acro Mode(Manual Mode) and Air Mode. The picture below is what we set on Frsky Q X7 radio.

Before you fly it, remember to arm the drone, here is the switch where we set below:

Frsky Taranis Q X7 transmitter includes a Haptic Vibration Feedback System which provides an alternative feedback system to the voice and sound alert warnings. This 16 channel radio has smooth ball bearing gimbals and is loaded with six switches and two knobs. It runs on OpenTX and files can be shared with the popular X9D Plus. The MicroSD card slot offers unlimited model memory options, it also has a USB port for upgrades and to connect to a PC for adjusting settings. Both sticks come with spring loaded return to center sticks, this makes changing from mode 1 to mode 2 extremely easy to set through the menu and the stick can quickly be set to a stationary throttle by unscrewing four screws and removing a spring. One of the best features of the Taranis Q X7 is its full telemetry capability, as well as RSSI signal strength feedback. Wheel and center enter button makes navigating the backlit menu easy and precise. Equipped with an audio jack output and trainer port as well. And of course a module bay for use with JR-type modules that can be used with other protocol receivers and with the use of an FrSky XJT module this radio can support up to 32-channels. Other features include Receiver Match, Real-Time Flight Data Logging and Super Low Latency for precision flying.

High safety ARRIS 4S 1500mah Lipo Battery

ARRIS 4S 1500mAh 50C lipo battery is specially designed for FPV racer. The price of this battery is much higher than the similar batteries in the market, because we only sell top-quality batteries. As we all know, the low quality battery might have potential safety hazard, we will never tolerate such products.For ARRIS 4S 1500mah lipo battery, we have done UN38.3 test,1.2M Drop test,MDS report for it, for the test report, you can check here.

Package Include:
1xARRIS X220 FPV Racing Quad Frame
4xARRIS X2206 2450KV V2 Brushless Motors (2CW+2CCW)
1xFlycolor Raptor S-Tower BHeli-S 2-4S 4-in-1 30A ESC + F4 + PDB + OSD
4xDalprot T5045C High Effiency Propeller
1x ARRIS Mini Pro camera
1xARRIS VT5804 48CH VTX
1xFoxeer Pagoda pro mini antenna
1xFrsky QX7 Radio with XSR receiver
1xARRIS Buzzer
1xARRIS 4S 1500mah Lipo Battery
2xBattery straps

Note: Battery Charger is sold separately.
