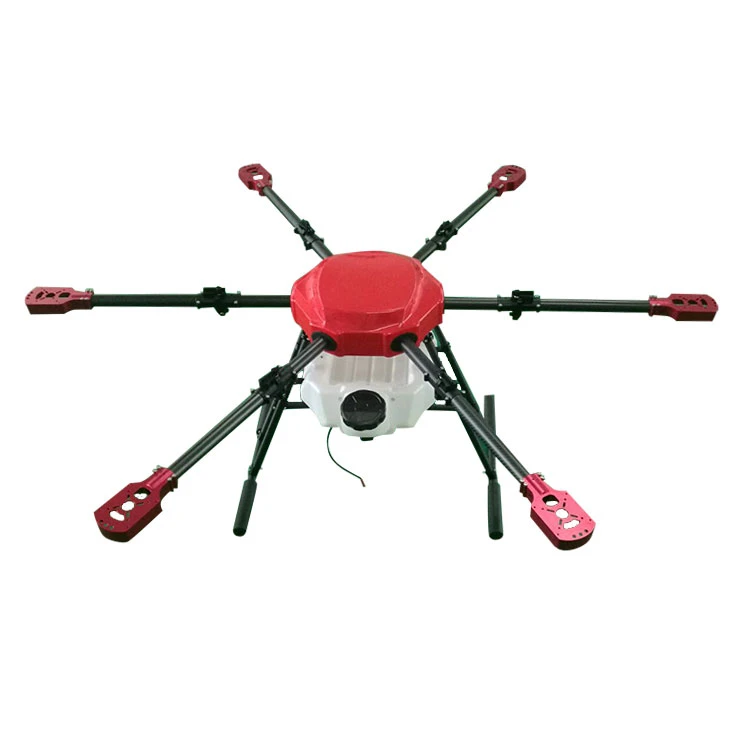

ARRIS YRX610 6 Axis 10L Umbrella Folding UAV Agriculture Drone Frame Kit

For the ARRIS YRX610 6 axis 10L uav drone frame, we have two versions. Version A: comes with motor mount
Version B: comes without motor mount (If you use DJI E5000 Pro,Flycolor F8 power combo,just choose this version)

Specifications:
Product Name:ARRIS YRX610 10L Agriculutre Drones
Unfolded Size: 1450mm x 1450mm x 630mm
Folded Size: 1008mm x 942mm x 630mm
Frame Weight: 5.68kg
Payload weight: 10L
Power source: Battery
Max takeoff weright: >34kg
Nozzle: 4pcs
Flight time: 15 to 20 minutes
Flight speed:0-10M/S
Spray width: 4-5m
Spray flow: 0.8-2.0L/min(adjustable)
Max Pressure of Pump: 1MPA
Operation temperature:10~50℃
Operation Efficiency: 5333 to 6666㎡ per takeoff-landing
Operation Efficiency: 666 to 1000㎡ per minutes

Main Features:
1. The fuselage adopts enclosed design with special ring on the joint parts,which can effectively prevent liquid and dust entering. It is washable, convenient for maintenance.
2. Inverted battery design, the flight attitude is more stable, wind resistance is stronger.
3. The frame is perfectly suit DJI E5000 power combo, while the other compatible motor base are optional. Droop high-pressure nozzle, Mist under strong penetration pressure,evenly distributed
High power pumps, spray atomization is stronger, the performance is better
4.The frame kit adopts the new designed vertical folding parts, which avoid the gap between the joint parts caused by the weight from the motor. With this, the drone has longer working life, the operation more reliable.
5. Convenient pull buckle structure, easy and quick to fold and unfold the drone.Vertical folding design, the drone is reliable and solid in both folding and unfolding status.
6. Pin can used to fix during folding, the arm will not shake, it is easy to take and transport.
7. Built-in shock-absorbing rubber ring, significantly reducing the vibration caused by motor rotation. Increase additional security screw holes, add another protection for customer, calmly deal with all kinds of harsh environments.

Package Included:
ARRIS YRX610 6 Axis 10L UAV Agriculture Drone Frame Kit x 1
Spraying system x 1
