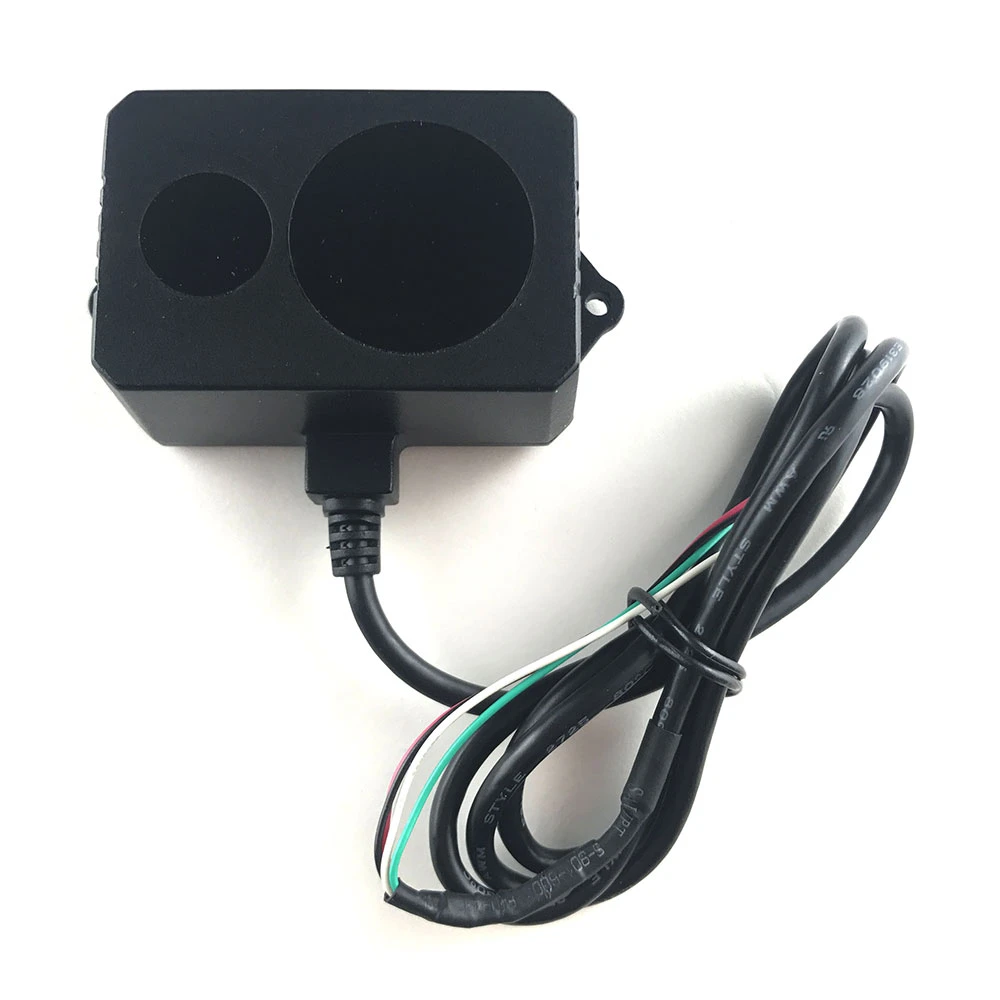

Benewake TF02 Pro Single-point Ranging LiDAR Pixhawk Compatible Radar

Benewake TF02  has upgraded to Benewake TF02  pro.

The product is based upon ToF (Time of Flight), supplemented by particular optics, electricity,and design, so as to measure distance with stability, precision, high sensitivity, and high speed.It is compatible with Pixhawk flight controller. It is great for drone altitude holding and terrain following.

Major Applications:
Drone altitude holding and terrain following
Machine control and safety sensors
Range measuring instrument

Main Features:
Remote, Accurate and Stable
The optimal range can be up to 22 m. With the high frequency real-time measurement,
TF02 possesses impeccable data processing algorithms,making product ranging perform more stably.

High Strength Body
An innovative production process and hardware optimizations make its water-proof level reach IP65. The integrated structure makes its body more powerful and unbreakable, which highly enhances its anti-corrosive quality*.
*Resistant to pesticides such as deltamethrin, basic chrome sulphate, glyphosate, glufosinate-ammonium, and azoles.

Fusion Algorithm and High Reliability
Based on the ToF (Time of Flight) principle, the product can work under 100k Lux high light outdoors. In tandem with the original optical system design and fusion algorithm, the product can resist disturbance from ambient light, airflow, and electrons,resulting high data reliability.

Graphical Operation and Remote Upgrade
Concise upper computer operation interfaces integrate common functions,such as data displaying, downloading, and Baud rate adjusting,so as to make it more user-friendly.The new Bootloader function is convenient for users to remotely upgrade product firmware online.

Specifications:
Item Brand: Benewake
Item model: RF02
Range: 0.4m-22m ( Indoor, reflectivity 90%)
Pixel Resolution: N/A
Distance Resolution: 1cm
Refresh Rate: 100Hz
Accuracy: ＜2%（5m~22m）
Repeatibility: ＜2cm
Weight: 52g
Size: 69mm x 26mm x 47mm
FoV: 3°
Power: 1W
Voltage: 5V
Communication: UART/CAN
Output: Single point distance value
Protection Level: IP65
Operating Temperature: -10℃~60℃
Photobiological Safety: Satisfy EN62471

Package Included:
Benewake TF02 Single-point Ranging LiDAR Pixhawk Compatible Radar x 1

How to Install the Radar to Pixhawk flight controller, please check here.

User Manual, Please check here.
