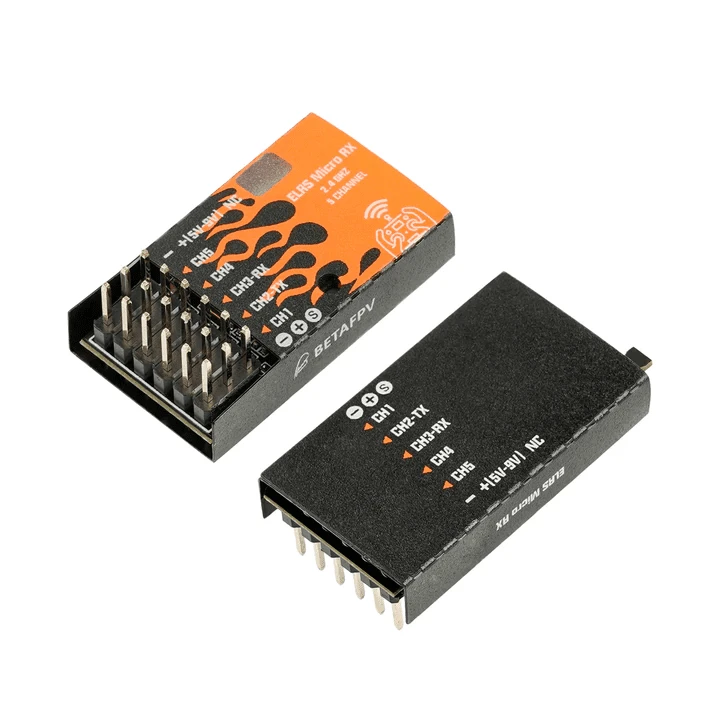

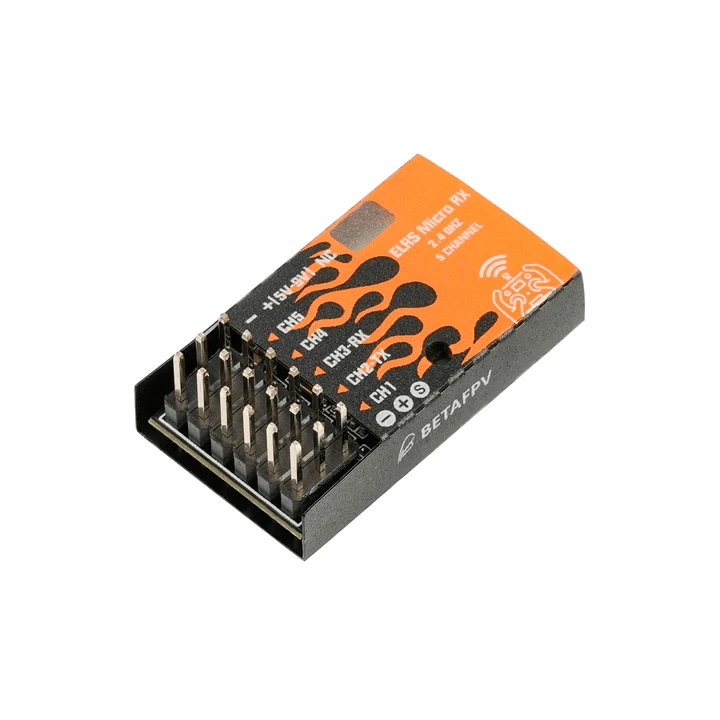

BETAFPV ELRS 2.4G Micro Receiver 5CH PWM Output

BETAFPV Micro receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

ExpressLRS PWM Receivers
ExpressLRS now supports direct PWM output from receivers that have been specifically designed for this mode. BETAFPV ELRS Micro receiver features PWM output for the application of fixed-wing, helicopters, RC cars, boats and etc, and supports failsafe function, which can protect RC models from being out of control. Besides, the plug-and-play design makes it very easy and friendly to use.

Note: To work with PWM receiver, please make sure the TX and RX firmware is ELRS V2.0.0.

What is the major difference between Micro receiver, Nano receiver, and Lite receiver?

Micro receiver is the first ELRS receiver with PWM output on BETAFPV. It is widely used in fixed-wing, helicopters, RC cars, boats and etc. Weighing about 4.5g with an antenna means that a FPV drone can not afford to carry. With the plug-and-play connect ports, Micro receive is very easy to use and does not need to solder.

Nano receiver (2.4G version) is the first and (so far) the only receiver with power amplifier (PA+LNA). It has 100mW telemetry output and better sensitivity when longer range. Lite receiver doesn’t have a PA/LNA on them, so its telemetry power is as what the RF chip SX1280 came with 17mW.

Beside, Nano receiver comes with normal external Dipole T antenna. Lite receiver has SMD ceramic antenna and in theory it is not so long range.

Micro receiver is used for fixed-wing, helicopter, RC cars, and boats. High recommend the Nano or Lite receiver to build on a drone. Especially on 65-85mm whoop drones with limited space and need lightweight, Lite receiver is a better choice.


Micro Receiver	Nano Receiver	Lite Receiver
Weight	4.5g with antenna	0.7g (RX only)	0.47g (Tower), 0.53g (Flat)
Antenna	IPEX MHF + T antenna	IPEX MHF + T antenna	Integrated SMD ceramic antenna
MCU	ESP8285, SX1280, SX1281	ESP8285, SX1281 or SX1276	ESP8285, SX1280
Frequency	2.4GHz	2.4GHz, 915MHz (FCC), 868MHz (EU)	2.4GHz
Telemetry Power	17mW	100mW	17mW
Serial Output Protocol	PWM or CRSF	CRSF	CRSF
Model Type	Fixed-wing aircraft, Helicopter, RC Cars, RC Boats	FPV Drone	Whoop Drone

Specification
Item: BETAFPV ELRS Micro Receiver

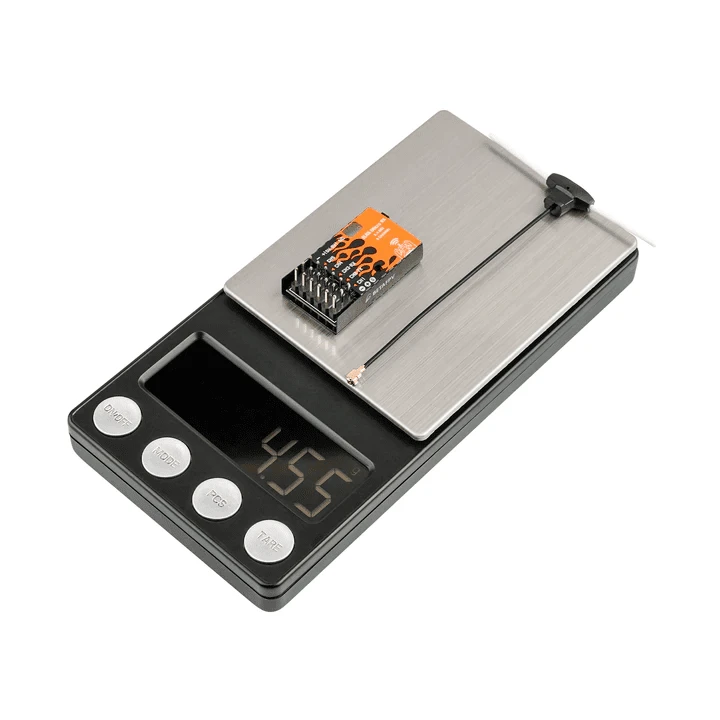

Weight: 4.5g (with antenna)

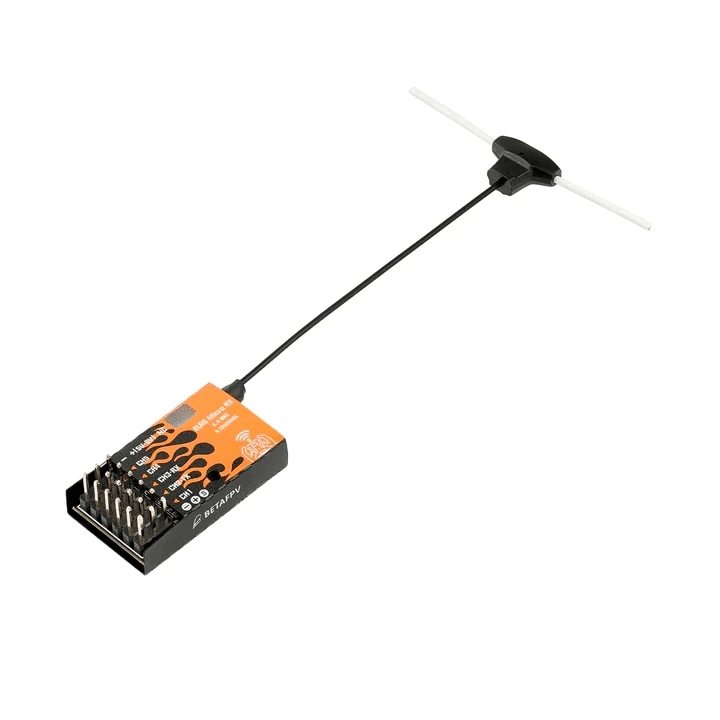

Antenna: IPEX MHF + T antenna (recommend 80mm Dipole T Antenna)
PWM channel: 5 channels
Serial output protocol: PWM or CRSF
Size: 19mm*32mm*9mm (without antenna)
MCU: ESP8285/SX1280/SX1281
Telemetry power: 12.5dbm/17mW
Frequency bands: 2.4GHz ISM
Input voltage: 5V~9V DC @ “+” pad
Default firmware version: ExpressLRS v2.0
Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.

Diagram
Below is the diagram for ELRS Micro receiver.

Note: The firmware version of the micro receiver manufactured by our company is ELRS 2.0.0. ELRS Innovative team has officially released version 2.0.0, which is not compatible with the 1.x version. Significantly, the TX module and receiver have to be in the same ELRS version, otherwise, the frequency cannot match successfully.

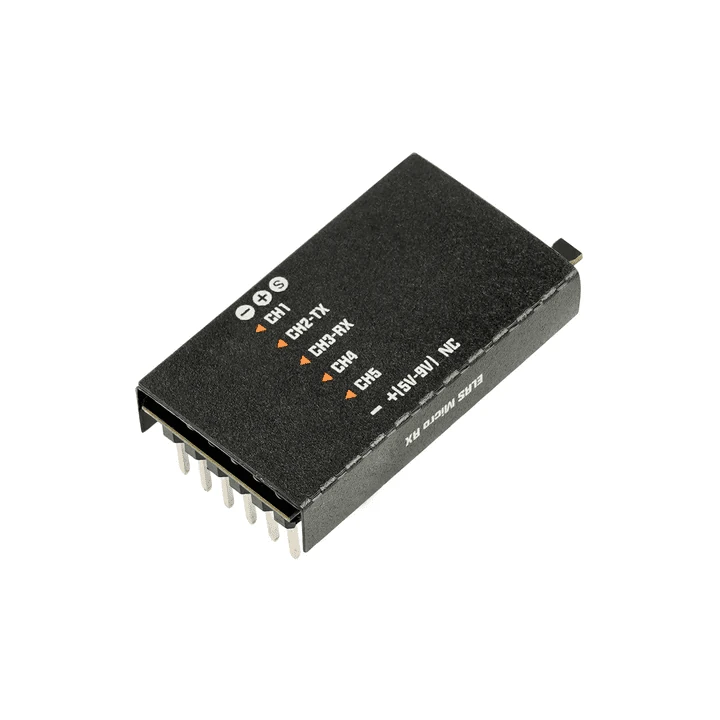

Note: The Micro receiver also supports flash CRSF output firmware, in this case CH2 corresponds to TX and CH3 corresponds to RX.

Binding Procedure
The Micro receiver comes with officially major release V2.0.0 protocol and has not been set for a Binding Phrase. So please make sure the RF TX module works on officially major release V2.0.0 protocol and no Binding Phrase has been set beforehand.

Enter binding mode by plugging in and unplugging the Micro receiver three times;
Make sure the LED is on double flashing, this indicates the Micro receiver is in bind mode;
Make sure the RF TX module or radio transmitter also enters the binding mode, which sends out a binding pulse;
When the LED light is solid, it indicates that the devices are successfully bound.
Note: once the devices have been successfully bound, the receiver will store the binding information. There would be no need for re-bind on the later use as the devices would be connected automatically.

Note: If you reflash the firmware of the Micro receiver with your own Binding Phrase, please make sure the RF TX module has the same Binding Phrase to perform an auto bind.

Failsafe and PWM Output
When the connection or signal is lost between the radio transmitter and receiver, the failsafe function will adjust all the channels to the failsafe values set by the users, maximum keep safety and prevent from flying away. It’s necessary to set up failsafe values properly if you are not using a flight controller, such as RC fixed-wing.

Power on the Micro receiver and wait for 20 seconds without binding.
Once the indicator is flashing quickly, the receiver’s WiFi has been activated.
Connect WiFi via computer or mobile phone.
WiFi Name: ExpressLRS RX
WiFi PWD: expresslrs
Open the website address: http://10.0.0.1, and set your own failsafe values.

Note: Failsafe values are absolute and do not use the “invert” flag.
Micro receiver LED status indication is shown below.

Package Includes:
1pcs x ELRS Micro Receiver
1pcs x BETAFPV 80mm T antenna
