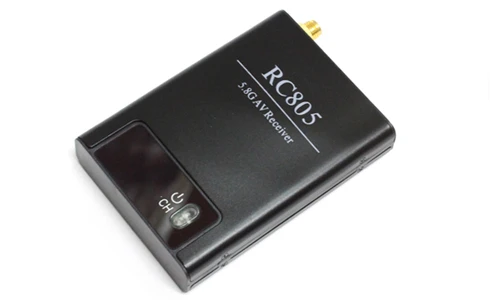

Boscam RC805 5.8G Wireless AV Receiver

The RC805 5.8Ghz AV Receiver features a digital channel display and jumperless, one press channel selection. This receiver also includes an additional AV output for video recording while using FPV goggles.

Specification:

• Receiving sensitivity: < -90dBm
• Receiving frequency: ISM 5.8GHz 8CH
• Antenna port: 50ohm RP-SMA
• Antenna: Gain: 2dBi
• Power supply: DC12V 220mA
• Video output level: 1Vp-p @ 75ohm
• Audio output level: 1Vp-p @ 10Kohm
• Dimensions: 72.5×54.2×15.5mm
• Weight: 52g (w/antenna)

Includes:
1 x Receiver
1 x Antenna
1 x AV output cable
1 x Power Supply Cable

* No instruction manual supplied with this product.
* This is a receiver only, transmitter to be purchased separately.
* Many fake, poor quality & untested FPV products are currently entering the market. Dont get caught out with poor quality substitutes, Boscam FPV equipment is tried and true and has been tested and developed by FPV pilots for FPV pilots.�
