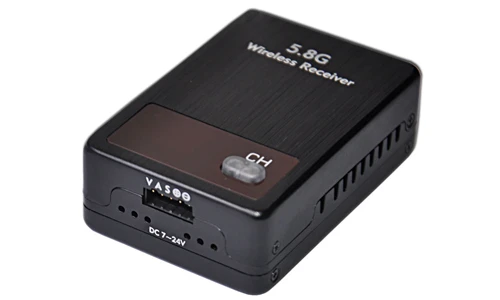

Boscam Thunderbolt RC905 5.8G 32CH RX Receiver (RX Only)

:
The RC905 Receiver is an upgrade of RC832, Small in size for easy integration into your ground station, but big in quality and features. Extruded aluminum casing, Band and Channel LED indicators  so it is easy to know which frequency you are working on. New feature for connecting to RC Transmitter allows for remote channel setting.

Specification:
VideoPower On Working: Plug and Play
Input Voltage: 7-24V DC, 2-6 cells battery
Channel Switching: channel button and channel display
Antenna: RP-SMA female 50 ohm connector
Accessories: one original stick antenna, one multi function 5pin cable�
Size & Weight: 62mm*42mm*20mm, 52g�
Package Size & Weight: 135mm*85mm*45mm, 90g

Frequency Table,�32 channels:

Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
A	5865M	5845M	5825M	5805M	5785M	5765M	5745M	5725M
B	5733M	5752M	5771M	5790M	5809M	5828M	5847M	5866M
C	5705M	5685M	5665M	5645M	5885M	5905M	5925M	5945M
D	5740M	5760M	5780M	5800M	5820M	5840M	5860M	5880M
