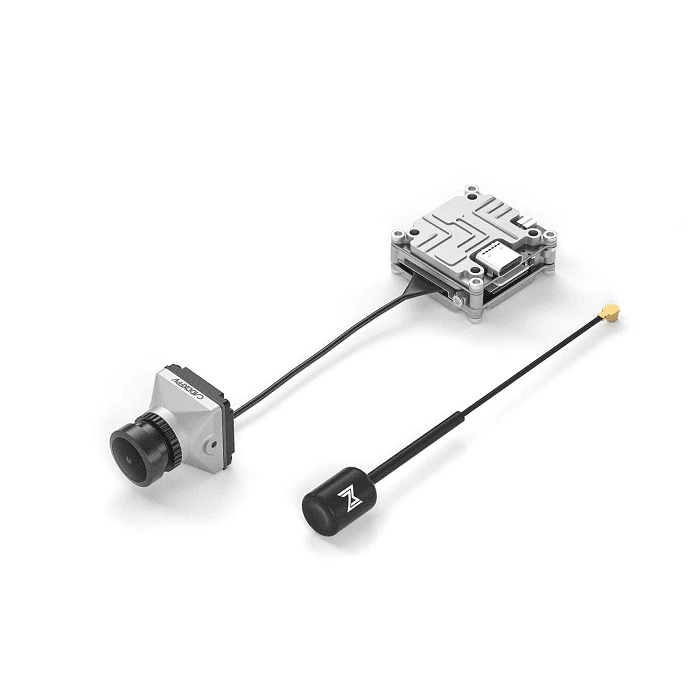

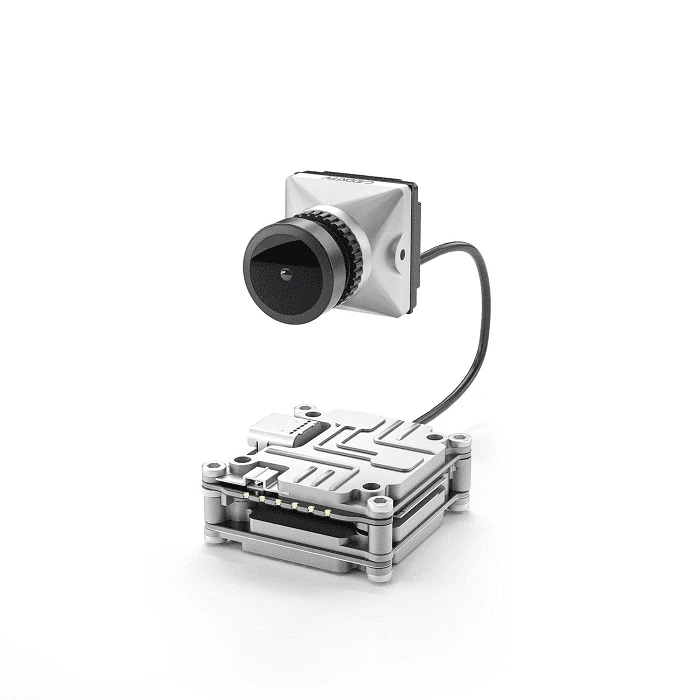

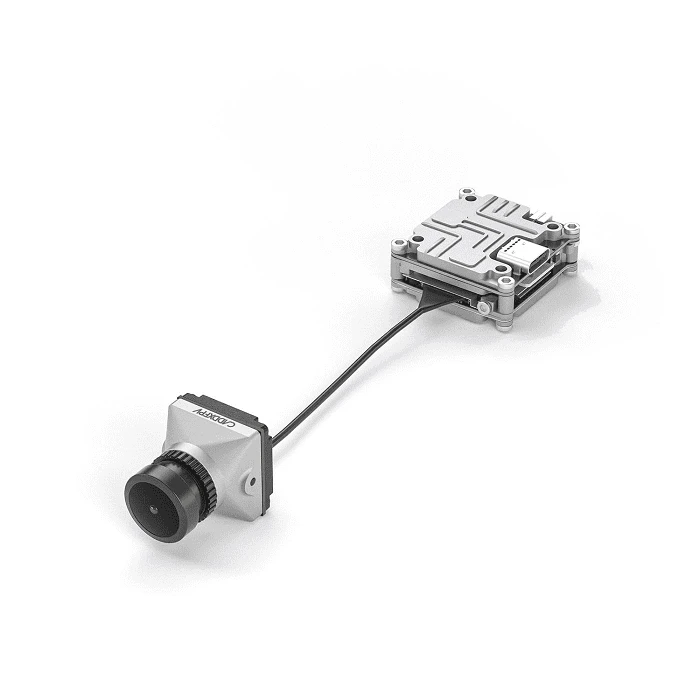

Caddx Polar Vista Kit HD Digital System FPV Camera 720P 60fps

The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency within 32 ms. It supports F3/F4/F7 flight controller and work with DJI goggles.

Feature:
1.Lightweight digital image transmission combination
2.Stable and clear HD video
3.720p 120fps, 32ms/4km
4.8 channels, 8 drones

Specification:
Model:Polar Vista Kit
Weight:Vista Kir(camera included):28g
Antenna:1.5g
Demension:Vista Kit:30x29x13mm
Camera:19x19x24mm
Coaxial Cable:120mm
Operating Frequency:5.725-5.850Ghz
Transmitter Power(EIRP):FCC/SRRC/MIC:<30dBm
CE:<14dBm
Min.latency:720p 60fps:<32ms
Max.Transmission Range:FCC/SRRC:4KM;CE:0.7KM
I/O Interface:USB-C,IPEX,3-in-1port
Supported Flight Controller System:F3/F4/F7
Operating Temperature Range: 32° to 104F (0° to 40°C)
Input Power:7.4V-26.4V
Power Output:25mW/200mW/500mW/700mW
Goggles:Work with DJI goggles
Camera:Sensor:1/1.8” starlight cmos
Min.Illumination:0.00003Lux
Lens:F/1.6&8Mega
Shutter；Rolling shutter
ISO:100-25600
FOV:162°(D);138°(H);75°(V)
Aspect Ratio:16:9

Package Includes:
1x Polar vista kit
6x M2 screws 3/4/5mm
4x Gasket Ring
1x 3-in-1 Cable
1x Menu cable
