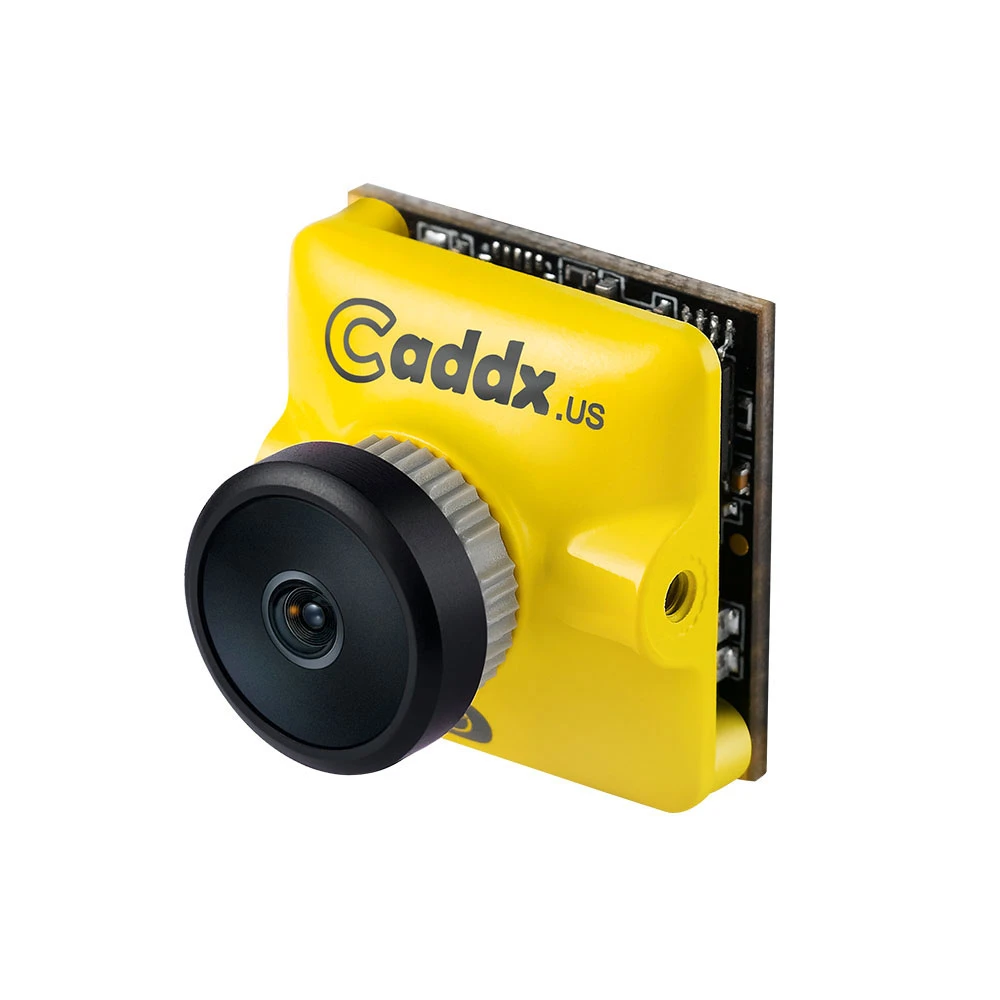

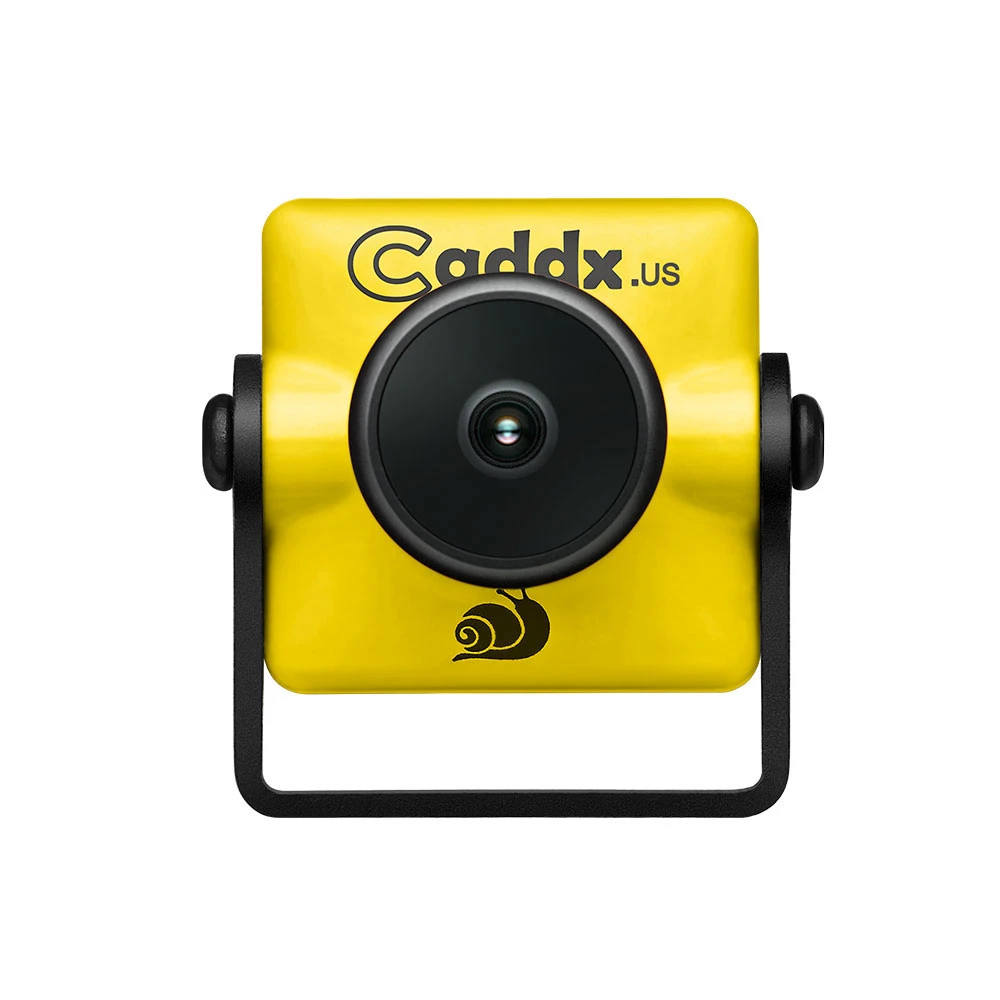

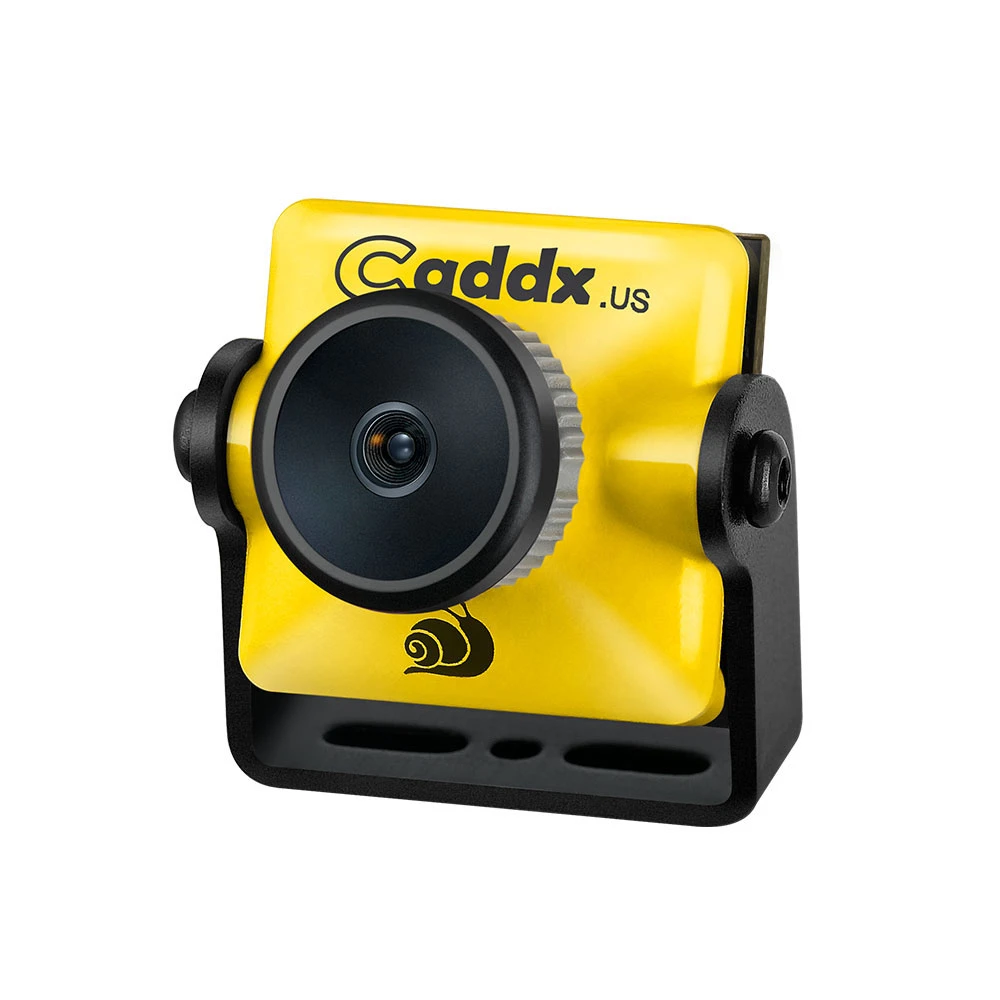

Caddx Turbo Micro S1 FPV Camera 2.1MM Lens For FPV Racing Drones(NTSC)

CADDX is a new brand which produce high quality cameras. CADDX Turbo micro S1 comes with fly OSD, it supports 5-40V wide voltage output, it is low latency and performs great at night. With the 6.2g weight and 19x19mm small size,you can use it on all the sizes of fpv racign quads.

Main Features:
Low Latency
Superior light handling
Best nightvision performance
Wide voltage range
Ultralight weight–Only 12g

Specifications:
Model: CADDX Turbo Micro S1
Image Sensor: 1/3″ CCD Sensor
Horizontal Resolution: 600 TVL
TV System: NTSC
Synchronization: Internal
Electronic Shutter: NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Lens: 2.1mm
Min. Illumination: [email protected]
Auto Gain Control: YES
BLC: YES
FLY OSD: Voltage/time/horizontal line/title
Camera OSD: YES
WDR: D-WDR
DNR: 2 DNR
Day/Night: Auto/Color/B&W
Dimensions: 19mm*19mm*19mm
Wide Power Input: DC 5-40V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 6.2g (N.W.)/ (G.W.)

Package Included:
1 x Caddx Turbo Micro S1 Camera
1 x 5D-OSD Menu Board
1 x ABS+PV Bracket
1 x Aluminum Bracket
1 x FPV silicone cable
1 x Screws set
1 x Manual
