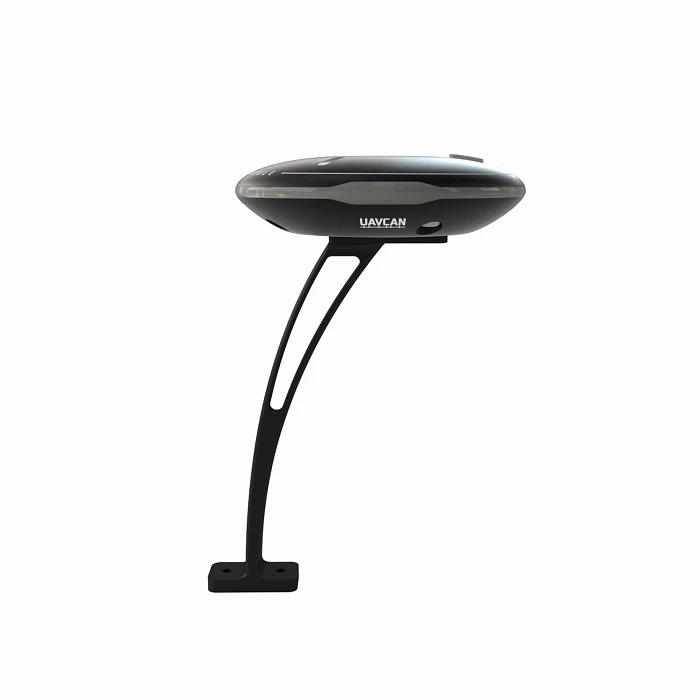

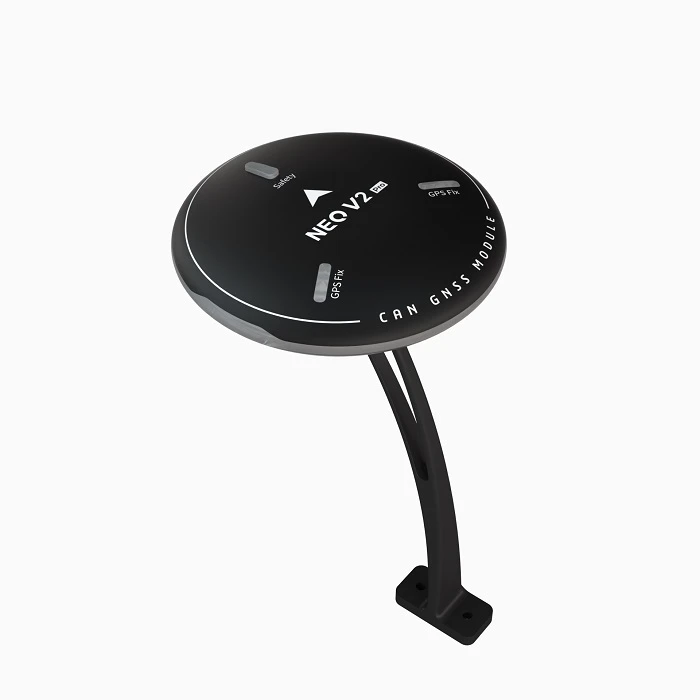

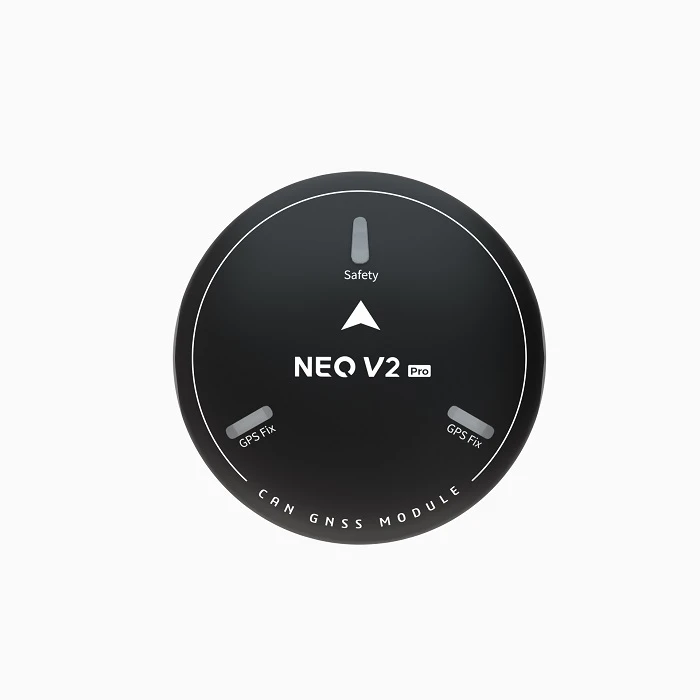

CUAV NEO V2 Pro CAN GPS Module GNSS Support Ardupilot FC For Multicopter

：

NEO V2 Pro is a GNSS positioning system based on the UAVCAN communication protocol.It integrated an industrial-grade compass,barameter,flight controller status lights,buzzer,and safety switch in one;It has high safety and strong anti-interference characteristics.

Neo V2 adopts SAW+LNA+SAW dual filtering design,which effectively avoids the influence of remote control,digital transmission,and 4G signal on GPS positioning reception.

Specification:
Processor: STM32F412
Compass: RM3100
Barometer: MS5611
GNSS Receiver: Ublox M8N
GNSS Concurrently: GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C,SBAS L1
C/A:WAAS, EGNOS, MSAS, GAGAN
Nav. update rate: 10HZ(MAX)
Position Accuracy: 2M
Acquisition:
Cold Start: 26S
Hot Start: 1S
Aided Start: 2S

Sensitivity:
Tracking and nac. -167dBM
Cold Start Hot Start -148dBM
Reacquisition -160dBM
Protocol: UAVCAN
Firmware Upgrade: Support
Flight Controller Support: Ardupilot
Interface Type: GHR-04V-S
Input Voltage: 4.7~5.2V
Operating Temperature: -10~70℃
Size: 60*60*16MM(Without Stand)
Weight: 33g(Without Stand)

Package Included:
1* NEO V2 Pro Module
1* GPS Stand
1*CAN Connect Cable
