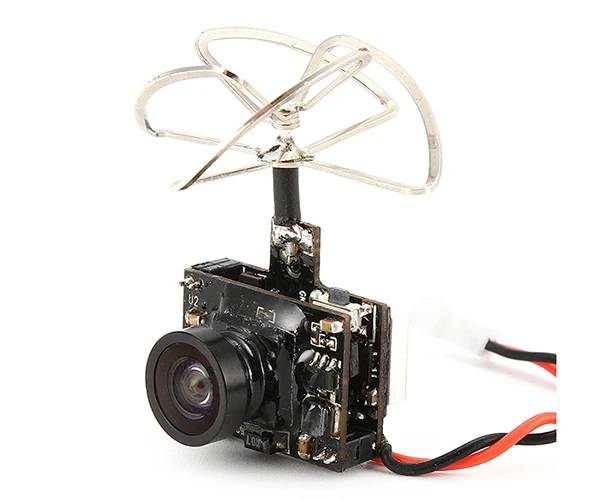

Eachine TX03 Super Mini 0/25mW/50mW/200mW Switchable AIO 5.8G 72CH VTX 600TVL 1/3 Cmos Micro FPV Camera

This item will be sent from the US warehouse.

ARRIS Eachine TX03 Super Mini 0/25mW/50mW/200mW Switchable AIO 5.8G 72CH VTX 600TVL 1/3 Cmos Micro FPV Camera is great for Tiny Whoop, Blade and other small size quads.

Main Features:
1. AIO FPV camera, transmitter , atnenna all 3 functions in one limit size and weight.
Output power 25mW 50mW 200mW Switchable. 9 bands 72 channels with Raceband;
2. Support Battery: 1S Lipo Battery (3.7-4.2V).
3. 120 degree FOV horizontal viewing angle of 150 degree DFOV diagonal perspective.
4. Nickel-plated 4 Leaf Antenna , RHCP circular polarization clover to Antirust and get strong signal

FPV Camera:
Output Power: 0/25mW/50mW/200mW (switchable) (Set output power on 0, to avoid frequency interference)
Input Power: 2.5-5.5V
Sensor: 1/3 “CMOS
Camera Resolution: 600TVLA
Lens: M7 10mm Lens
Angle: 120 degree FOV horizontal viewing angle 150 degree DFOV diagonal perspective
Mini illumination: 1 lux
Format: NTSC

Transmitter:
Support Video Format: NTSC
Output Impedance: 50 Ohm
Output signal strength: about 13dbmdBm
Output Power:
25mW: 14dBm
50mW: 17dBm
200mW: 23dBm
Wireless Channel: 72CH
Antenna: RHCP circular polarization clover leaf antenna
Antenna Size: 22x29mm
Operating voltage: 2.5V ~ 5.5V
Current consumption:
25mW: 250mA-510mA
50mW: 270mA-640mA
200mW: 330mA-740mA
Audio carrier: NO

Package Includes:
1 x TX03 AIO FPV Camera
1 x Cable
1 x User Manual
