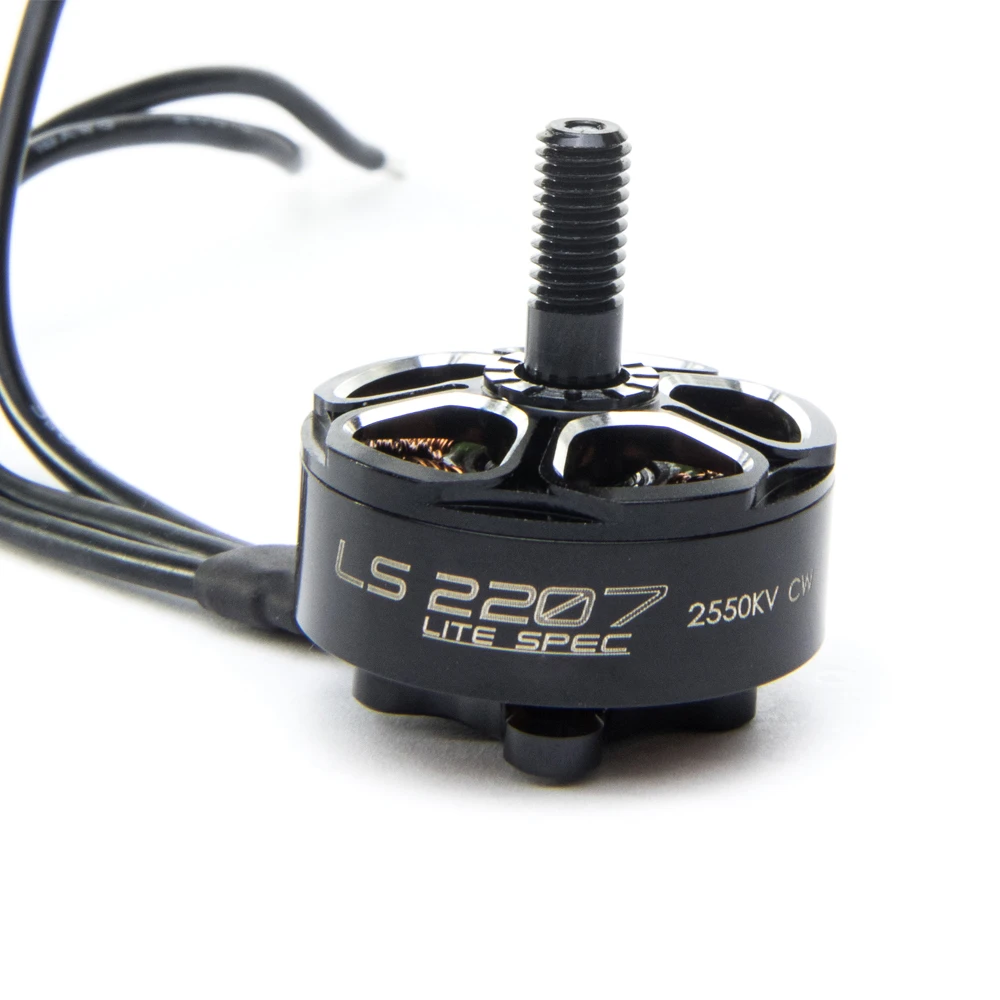

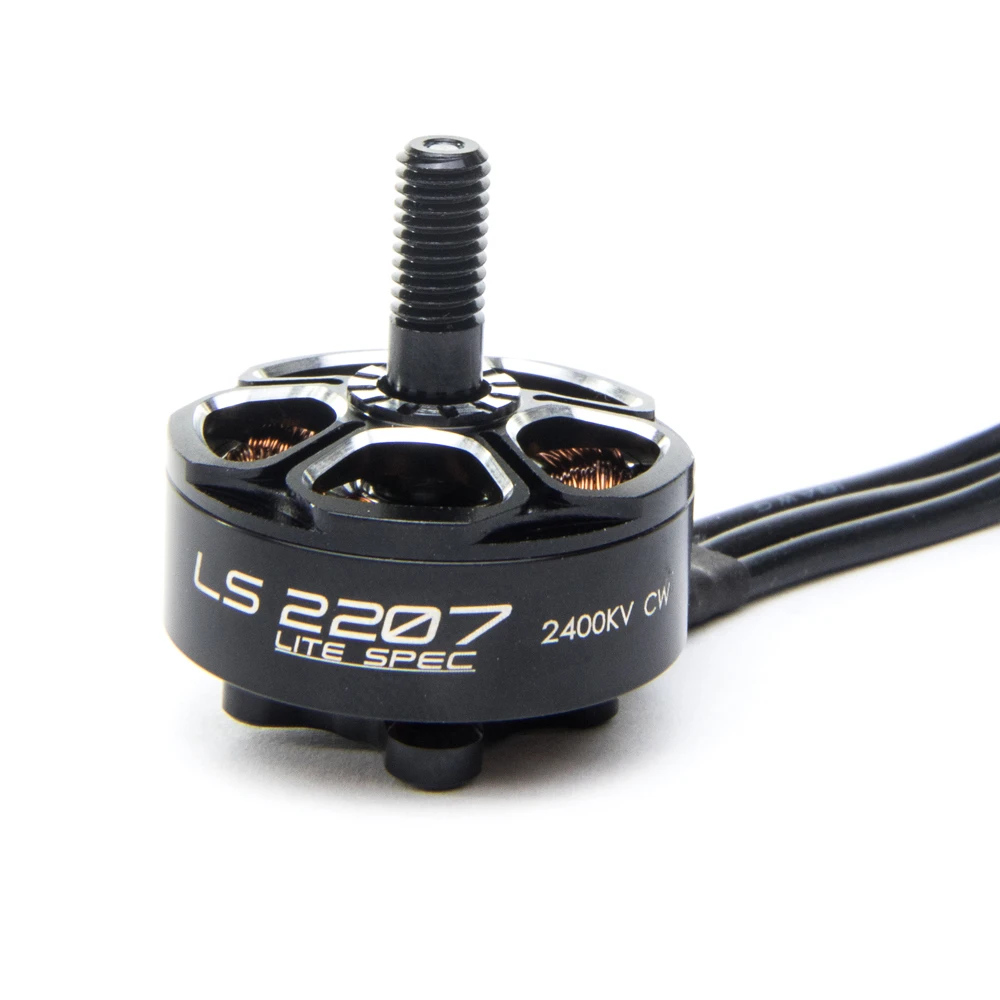

EMAX Lite Spec LS2207 2400KV 2550KV Brushless Motor For FPV Racing Drones

EMAX Lite Spec LS2207 brushless motor is the latest motor line relesed by Emax to meet the demands for fpv racing and freestyle drones. The main feature of the EMAX LS2207 version motors is maximizing the strength of the motor with minimum weight for longest time flying. With the redesigned bell built and lightened aluminium stell shaft, it increased the cooling of the stator and coils. Therefore, the motor has better cooling and more power.

Main Features:
NSK high efficiency bearings
0.15mm silicon steel laminations
Aluminum shaft with hardened steel core
1.8mm N48SH ARC Magnets
Screw capture for bell. Easy to service
Stealth black anodized color, with silver beveled edges
Reduced base size. Lower the weight and easier to make sure not to short your wires with long screws.
16mm x 16mm mounting holes ( 19×16 is the past) future frames dont need to have slotted mounting holes.
120mm 18AWG wire. Testing has shown a 5% increase in performance with thicker gauged wire. Compared from 20AWG wire.
New bell design with upper and lower beam support to reduce damage from collapse of impacts

Specifications:
Framework: 12N14P
KV: 2400/2550
Length: 31.2mm
Diameter: 27.5mm
No. of cells: 3-5S
Max. thrust: 1271g (2400KV)/1377g (2550KV)
Propellers: 5″
Propeller adapter shaft thread: M5
Weight: 30g (w/o silicone wire)

Package Included:
1x EMAX LS2207 Brushless Motor
5x 3mm arm mounting screws
5x 4mm arm mounting screws
1x replacement bell housing screw
1x replacement bell housing washer
1x EMAX Stickers
