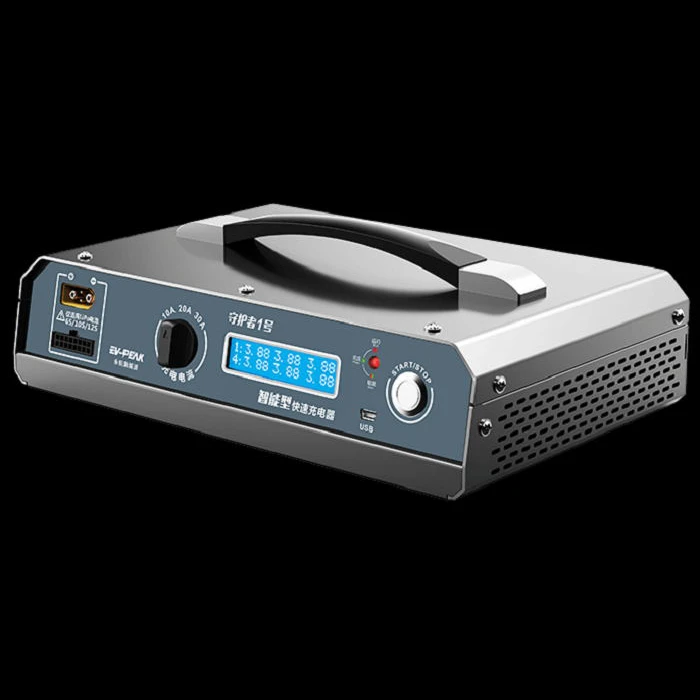

EV-PEAK U1 1000W 30A LiPo Industry Drone Smart Balance Charger For 6-12S Battery

U series charger is dedicated designed for industry/agriculture drones. it is quite simple to use, and can recognize the battery information automatically. no complicated settings, just one buttone to start/stop process. LCD screen displays real-time cell voltage, charging current, capacity, charging time, etc. it supports a wide range of battery cell count, ranges from 6S to 12S. firmware update supportable.

U1 can charge 1 pack of 6S/10S/12S LiPo batteries, and a maximum charge power of 1000W. When used with UB4 butler, it can charge 6 packs of 6S/10S/12S LiPo batteries. LCD screen real- time displays battery cell voltage, charging time, battery capacity and other data.

Together with the charge butler UB4, It can charge 6 packs of 6S/10S/12S batteries one by one. UB4 adopts a unique algorithm that allows smart communication with the host and makes balancing more accurate. For batteries with different cell count and different capacity, it can detect the battery power and start charging one by one according to the battery remaining power. With its unique intelligent obstacle avoiding function, it can skip the bad battery to charge other batteries first, then it will try to optimize and restore the bad battery.

Features:
1.small size,high efficiency;
2.Combination of Charging Butler UB4;

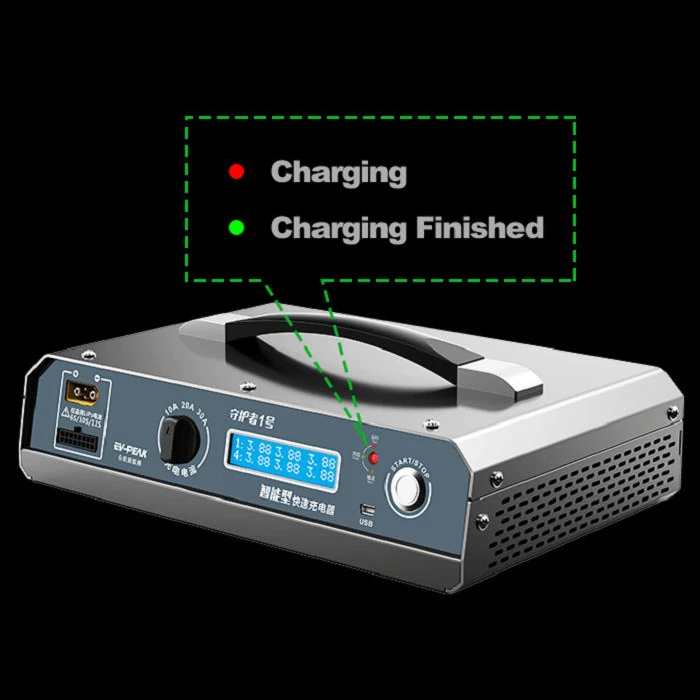

3.LED indicates the working status;
4.Buit-in Micro USB port for PC communication and firmware upgrade;

Specification:
AC Input voltage:100V-120V/600W 180V-240V/1000W
Charger Current:10A/20A/30A
Battery type:Lipo
Battery Cell Count:6S/10S/12S
Balance Current:1500mA
Demension:266x170x97mm
Weight:2.42kg

Package Includes:
1x EV-PEAK U1 1000W 30A Charger
1x Power Cable
