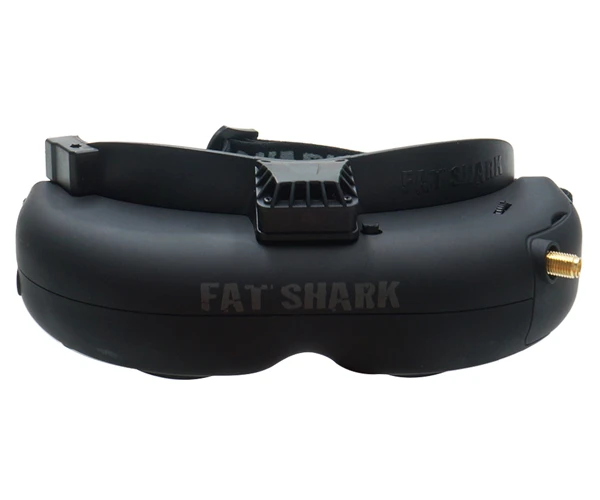

FatShark ATTITUDE V3 FPV Goggle Headset (Free Shipping)

Hobby-Wing.com is the power seller of Fatshark. 100% genuine, please feel free to buy.

Attitude V3 is one of the most cost effective goggl on the market. Optional diopter inserts (-2, -4, -6) are available for those with less than perfect vision, allowing these goggles to be used by a majority of glasses wearers. Inter Pupil Distance (IPD) adjustment allows the goggle fit to be adjusted to for nearly any face. AttitudeV3 is compatible with the Fat Shark fan equipped faceplate for extra comfortable fit and fog free viewing.The 32 degree diagonal FOV display strikes a perfect balance between large screen immersion and compact pixel density clarity. Fat Shark again proved to be a real supporter of the FPV market and a market leader in the video goggles market with this new release.

Attitude V3 ships with 1000mAh battery pack, 32 channel 5G8 RaceBand receiver and SpiroNET circular polarized antenna.

Headset Specifications:
Optics	FOV (field of view): 32¢Xdiagonal (Image size: 1.3m @ 2m) Interpupillary distance (IPD): 59 ¡V 69 mm (adjustable) Supports optional diopter lens inserts: -2, -4, -6 dpt
Audio	Stereo (requires adjustable volume earphone accessory)
User Controls	Channel selection/ head tracker reset Mode selection (wired/wireless) Contrast/ brightness control/ 2D or 3D (center press cycles 2D,3D and 3D swapped sides)
Electrical	Power supply: 7 – 13 V (2S/3S supply) Power consumption (@7.4V nominal): 320mA wireless; 150mA direct mode (RX off) DVR: None RF Modules (Optional): multi channel and band support (modular RF)
Antenna	External dipole (RX is circular polarized compatible)
Mechanical	Ergonomic molded headset w/ adjustable headband Secured rubber eye cups for ambient light reduction Weight: 167g
Display	Full color LCD polarized LED backlit Binocular display (640 X 480 VGA) NTCS/PAL auto selecting 2D / 3D interlaced
Head Tracker	9DOF 2-axis
Battery	7.4V 1000mAh Lipo Battery
Interface	3.5mm AV in/out port Power in port 3.5mm stereo earphone port Mini DIN head tracker data port
Note	Compatibility is only guaranteed with Fat Shark and ImmersionRC transmitters.

5G8 RaceBand Receiver Specifications:
Power supply	3.3~5 V
RX Sensitivity	≤-90 dB
RF Input Level	-90 dBm~+5 dBm
Video Format	NTSC/PAL
Operating Temperature	-10~65 ¢X
Size	42 x 25 mm
Weight	10.8g

Operating Frequencies:
Band 0-0 (FS/IRC)   5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Band 0-1 (Boscam E)    5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band 1-0 (Boscam A)    5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band 1-1 (Raceband)    5658, 5695 5732, 5769, 5806, 5843, 5880, 5917

Package Includes:
1 x Attitude V3 Goggle with fan equipped face plate
1 x 7.4v 1000mAh Lipo Battery
1 x 5G8,32ch RF Module with RaceBand)
1 x SpiroNET Circular Polarized Antenna
1 x 90 degree SMA Adapter
1 x Carrying Case
