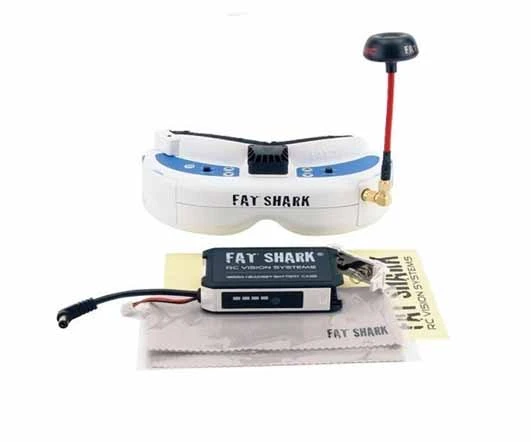

FatShark Dominator V3 Kit Headset FPV Video Goggles FSV1063-03 With Receiver

The goggle is on Summer Sale now! Add to cart to check the special price. This item is in China warehouse, it can send worldwide.

What’s new with the new version?
Fat Shark’s Dominator V3 Kit provides an almost-ready-to-fly solution for both new and experienced FPV pilots. The kit includes the workhorse Dominator V3 goggles, the FSV2442 32 channel Race Band receiver, a SpiroNET antenna and the FSV1814 18650 battery case — all in one package. Simply add batteries and you’re ready to fly.

The Dominator V3 FPV headset features a modular design, allowing pilots to customize additional receiver modules and head trackers to stay on the cutting edge. Record flight footage with the included DVR and use the onboard fan for defogging and maximum comfort.

Supporting HDMI-in and with a 16:9 WVGA image, the Dominator V3 can handle both digital and analog inputs with ease, making it a flexible and powerful headset for both casual and professional pilots.

The Dominator V3 focuses on HDMI connetivity with 720p support through a robust mini HDMI port and 16:9 format WVGA image. An improved DVR can swap between NTSC and PAL format as well as power backup to write files should the power be disconnected while recording. The DominatorV3 has modulal bays to support 1G3, 2G4 and 5G8 band receivers and ability to add the Trinity head tracker.

The Dominator V3 feature a modular design, meaning that additional modules and accessories can be added for expandable functionality. In order to receive the video downlink from your wireless video transmitter, a receiver module is required. Receiver modules are available in 1.3GHz, 2.4GHz, or 5.8GHz options. Please note that Fat Shark only guarantees compatibility with NexwaveRF modules from Fat Shark for ImmersionRC. To install the receiver module, simply remove the door panel on the side of the headset, insert the module, and snap the door panel back in place. Interpupillary Distance (IPD): 59 to 69 mm (adjustable)

Headset Specifications:
Optics	FOV (field of view): 30 degree diagonal (the same plastic optics as DOMV2) Interpupillary Distance (IPD): 59 to 69 mm (adjustable) Optional Diopter Lens Inserts: -2, -4, -6 dpt
Audio	Stereo
User Controls	Channel Selection Volume Control Mode Selection (Wired/Wireless) Display Control DVR Control HT Control
Electrical	Power Supply: 7 – 13 V (2S/3S supply) Power Consumption: 390mA wireless/ 230mA direct mode (no RX) (@7.4V nominal) Driver Board: Using the same as HD’s, support Side/Side 3D RF Modules: Infinite channel support on multiple bands Head Tracker: Modular (sold separately) Analog DVR: MicroSD support to 32Gb Record Rate: 6Mbps (MJPG compression, 30 fps, AVI) File playback (native recording, no codec support) Upgradeable via SD card PAL/NTSC continuous scan auto detect/mode change Auto save if power removed DVR stay off when not switched on
Display	800 x 480 WVGA LCD Polarized LED backlight NTCS/PAL auto selecting Side/Side 3D Input HDMI 16:9 Video 4:3 horizontally stretched (Current A/C chip only supports to 720p 50/60 Hz, could be upgraded to 1080p in the future)
Mechanical	Ergonomic molded headset w/ adjustable headband Dimensions: 169.2 x 80 x 45.5 mm Weight: 152 g
Battery	7.4V, 1.8A (13.32Wh)
Interface	3.5mm AV in/out port Power in port 3.5mm 3p earphone port MiniDIN4 data port (head tracking) MicroSD insert slot RF module port MiniHDMI port
Note	Compatibility is only guaranteed with Fat Shark and ImmersionRC transmitters.

Features:
Dominator V3 WVGA headset
16:9 widescreen WVGA display (30 degree FOV diagonal)
Supports Interlaced 3D
NTSC/PAL auto switching
Built in Digital Video Recorder (DVR)
DVR will auto-save any recorded video if the is power disconnected
Mini HDMI Display Port
Modular receiver bay

Package Includes:
Dominator V3 Headset
FSV1814 Battery Case
FSV2442 Receiver
Antenna
Case
Cable
Note: HDMI cable and adapters are sold separately.
