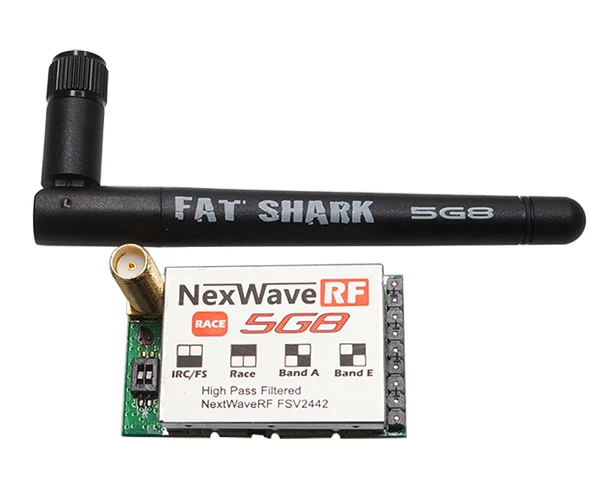

FatShark NexWave RF 5G8 32CH Race Band Receiver Module FSV2442

5G8 32 channel (4 band) receiver module with Race Band.

The Fat Shark NexWave 5G8 Race Band Receiver Module features 32 channels on the 5GHz band. This receiver module has been designed to provide a plug and play option for Dominator series goggles. Simply choose a band via dip switch on the receiver and once installed, use the channel selector on the goggles to select the channel.

These receivers are only compatible with Airwave based systems (FatShark, ImmersionRC, some others) that use the following frequencies:

0-0	Band 1	FS/IRC	5740	5760	5780	5800	5820	5840	5860	5880
0-1	Band 2	Boscam E	5705	5685	5665	5645	5885	5905	5925	5945
1-0	Band 3	Boscam A	5865	5845	5825	5805	5785	5765	5745	5725
1-1	Band 4	RaceBand	5658	5695	5732	5769	5806	5843	5880	5917
