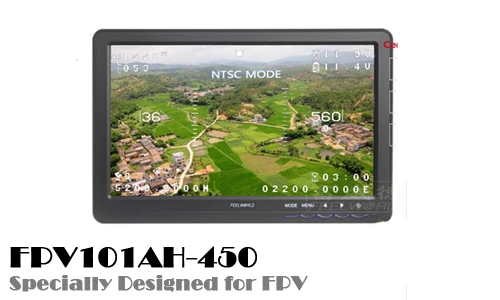

Feelworld 10″ LCD Monitor FPV101AH-450 For FPV (No Blue Screen)

Feelworld 10″ LCD Monitor FW101FPV-450 (No blue screen)

Specification:
NIST and PAL double automatic identification, with 16:9 and 4:3 two display models;
With YPbPr and AV inputs, connecting directly to camera;
LCD 16:9 Aspect Ratio with 1024*600 resolution;
Connect with high definition camera, working as monitor display or assistant display;
High brightness,contrast ratio,design together with sunshade make it pretty clear under sunshine;
Multiple installing method,makes viewing angle be diversified;

Brightness, contrast, chromacity and tonal adjustment(tone could only be amended under NTSC)

Parameter:
Brand: FEELWORLD
Type: FPV-101AH-450
(Specially designed for FPV)
Panel Size: 10.1″ TFT LED screen
Aspect ratio: 16:9
Resolution ratio: 1024×600 up to 1920×1080
Brightness: 450cd/u
Contrast: 500:1
Viewing Angle: 140/ 90 horizontal/vertical
Input voltage: DC 9-18V

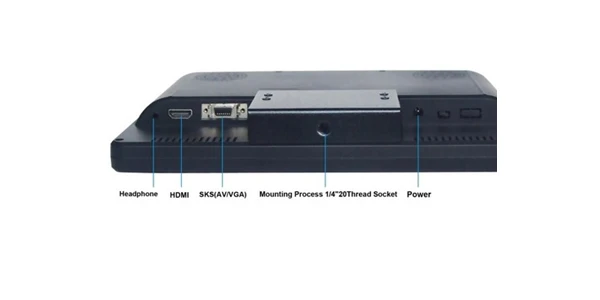

Input signal: HDMI, VGA, AV1/AV2 (RCA lotus port), YPbPr

AV2 is specified channel for FPV

Model support: 480i/p, 576i/p, 750p, 1080i(50/60), 1080p(50/60)

Color system: PAL/NTSC
Standby current: ≤50mA
Power: ≤6W
Autio output: ≥250mW
Loudspeaker: x1
Installing method: VEST standard hole 75mm
Appearance: 255 x 163 x 30mm(foldable)

Weight: 560g

Package Includes:
Adapter x 1
Radio Set x 1
Instruction manual x 1
AV Signal Wire x 1
VGA Cable x 1
