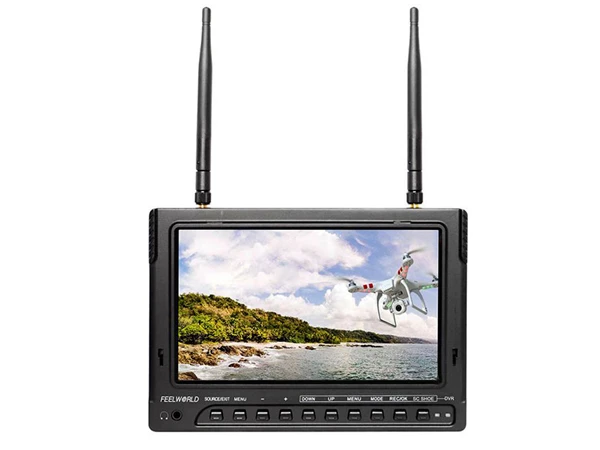

Feelworld PVR-732 5.8G 7 Inch HD Monitor With Built-in Dual 32CH Diversity Receiver

Feelworld PVR732 7 inches monitor has ultra slim housing, built-in battery and light weight. For the display, the high resolution is 1024 x 600 pixels. The LED display is super bright, high contrast, no blue screen. It is one of the best FPV monitors. It is compatible with DJI, Immersion RC and Fatshark.

If the power is off during the recording, the video will not lost. When the SD card is full, the new video recorded will cover the earliest files in the card. When you open the monitor, the monitor will do the motion detection. When it detects the motion, it will begin the record video. And you can adjust the sensitivity of the motion detection.

Main Features:
–
High Resolution: 1024 x 600P
– 5.8G broadband FM, Audio, Video synchronal receiving
– Built-in 7.4V 2200mah battery
– Highlight: 500cd/m²
– Low power consumption: 5V 170mAh
– High sensibility receiver: -90dBm
– High stability of built-in Frequency-modulated Phase-locked Loop
– Input Signal: Mini HDMI, AV, RF
– Output Signal: AV, 3.5mm Earphone Jack
– Lower hybrid wave leak: meet the requirements of CE, FCC
– Output the analog audio video signal directly
– Dual 32 channel receiver
– Flexible folding plastic sunshade hood

Specification:

Display
Model	PVR-732
Brightness	500cd/m2
Resolution	1024×600 Pixels
Contrast	700:1
Aspect Ratio	16:9
Backlight	LED
Video Format	PAL-4.43,NTSC-3.58
Viewing Angle	75¢X/75¢X(L/R¡^75¢X/75¢X(U/D¡^
Input
Input Signals	VideoAudio RF HDMI
Output
Output Signals	VIDEO,3.5mm Earphone Jack
Power
Input Voltage	DC¡G9-18V
Power Consumption	¡Ø13W
Built-in Battery	7.4v/2200mA(2hours)
Enrivonment
Working Temperature	‐20~50¢J
Storage Temperature	‐30~65¢J
Install Way	Includes a standard 1/4-20 tripod mounting hole on the bottom for simple use in your ground station
Dimension
Size	188.4L x 134W x29.2H mm
Weight	500g
DVR
Maximum Supported TF Card	32G
Resolution	D1(720X576),VGA(640X480)QVGA(320X240)
Video,Format	DVD Record Video Format AVI

Package Include:
1 x 7in Monitor
1 x Sunshade
1 x Built-in Battery
1 x Power Adapter
1 x 14Dbi Antenna
1 x
Omnidirectional Gain Antenna
1 x Manual
