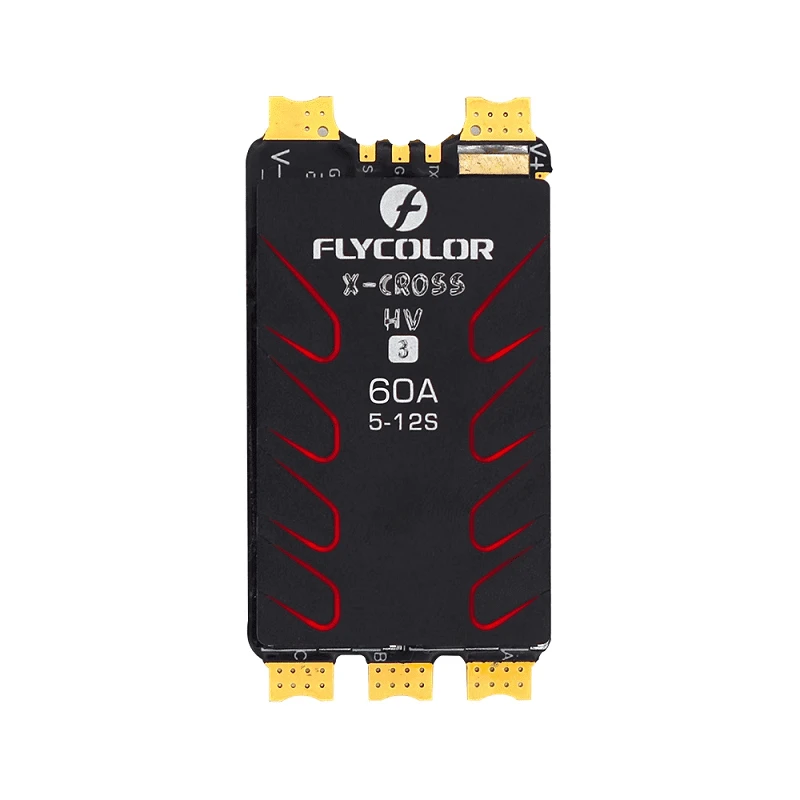

Flycolor X-Cross HV 3 60A 5-12S BLHeli32 ESC

Flycolor X-Cross HV 3 Series esc17:04 2023/12/21 firmware is optimized, makes the throttle linearity smoother and the response faster. Better routing and component layout. Great choice for your rc drones.

Main Features:
● ARM 32-bit Cortex MCU, frequency up to 64 MHZ, 25% higher than the previous generation of MCU.
● Compared with the previous generation of ESC, the ESC firmware is optimized, makes the throttle linearity
 smoother and the response faster.
● Compared with the previous generation of ESC, better routing and component layout, built in current meter.
● High performance and low ESR MOSFET , not afraid of large current.
● Wide voltage support, up to 12S liPo, suitable for x-class drone.
● Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and
 Multshot (5- 25us). The input signal is automatically detected by the ESC upon power up.
 All Dshot and Proshot signals are supported .
● Small size, light weight, suitable for the drone with narrow arms.
● Supports telemetry, and delivers the digital data such as temperature, voltage, current, speed, etc.
● The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signal
 transmission, and makes flight more stable.
● Aluminum heat sink effectively slow down the temperature rise.

Specifications:
Item Brand: Flycolor
Item Model: X-Cross HV 3-60A
Con. Current (good heat dissipation): 60A
Burst Current (good heat dissipation): 80A
BEC: NO
Lipo: 5-12S
Weight: 25.5g
Size: 55x28x10mm
LED: No

Package Included:
