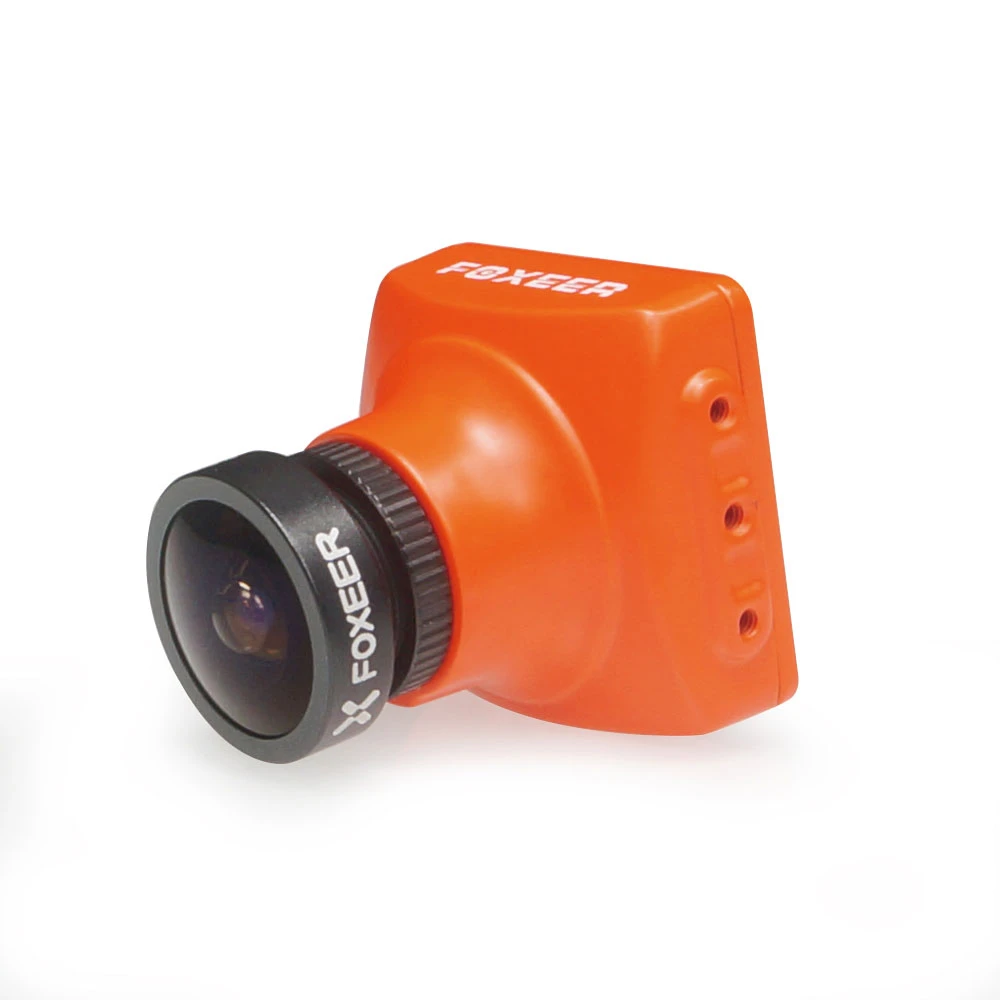

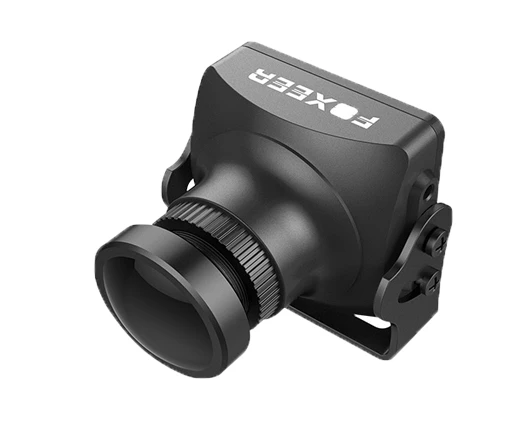

Foxeer ARROW V3 2.5MM Mini FPV Camera

The foxeer Arrow V3 comes with excellent WDR, which works well in the fast change of the dark and bright environment, support 5-35V super wide voltage, and built-in microphone and FPV OSD

Main Features
New Design Appearance
New design appearance, lead the trend. Body adopt Germany imported PC, good toughness and impact and vibration resistance.

Multi Installation
The patent bracket can adjust angle, come with 2 kinds of housing(1 hole and 2 hols), and plastic rings, a variety of mounting options.

Upgraded Function
The world’s first Built-in FPV OSD camera , show user name, current voltage, timer, and support voltage correction, built-in Audio, make you fly more real.

Specifications:
Type: Foxeer Arrow
System: NTSC/PAL
Pixel: PAL: 976(H) x 494(V); NTSC: 768(H)x 494(V)
Sensor: 1/3″ CCD
Resolution: 650TVL(b/w), 600tvl(color)
FPV OSD: name, voltage, timer
synchronization: Inter
Noise:›; 60 (AGC OFF)
Video Out: 75ohm, synchronize
Auto Gain: Off/ Low/ Mid/ High
Back Light Compensation (BLC): Off/ Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detection (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual/ Auto / Auto track
Mirror: Horizontal Mirror optional
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power: 5~35V
Working Temperature: -10℃-50℃
Working Humidity: 20~80%
Storage Temperature: -40℃-60℃
Dimensions(mm): 26X26(W*L)
Power Consumption: 70mA

Package Included:
1 x Foxeer arrow v3 camera with 2.5mm lens
1 x case
1 x bracket
1 x plastic ring
1 x OSD board control board
1 x 7pin servo cable
1 x User Manual
