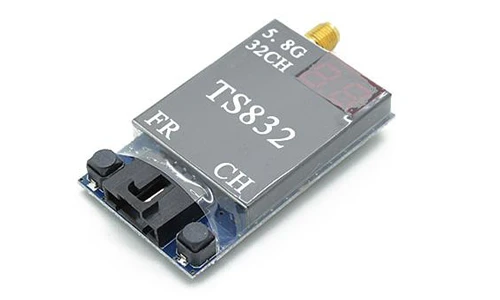

FPV 5.8G 600mW 32 Channels AV Transmitter Module TS832

FPV 5.8G 600mW 32 Channels AV Transmitter Module TS832

The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at 21g, its perfect for a wide range of aircraft!

Features:

• 32 channels: Cover A, B, E bands and F bands
• Two switching buttons for the band and channel
• Two digits display for?the band and channel
• Power off memory for last channel and band
• Dual Independent video and audio signal outputs

Specification:

• Power input: 7.4-16V (3S Lipo / ~12v suggested)
• Outputs 12v (matches input voltage)
• Transmitting power: 600mA
• Antenna gain: 2db
• Working current: 220mA at 12V
• Video bandwidth: 8M
• Audio bandwidth : 6.5M
• Weight: 22g
• Dimension: 54x 32x 10mm (excluding antenna)
• Video format supported: NTSC/PAL
• Antenna connection: SMA Connector

Frequency and channel frequency table:

Includes:
1 x Transmitting Unit (TX)
1 x Antenna (2db)
1 x Power Cable for TX832
1 x User Manual
