FPV 5.8G 600mW A/V Transmitting/Receiving 32CH Wireless System (TX+RX)

FPV 5.8G 600mW A/V Transmitting/Receiving System + 32 Channel Wireless Audio/Video System (TX + RX)

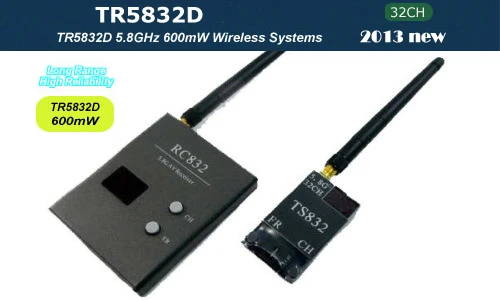

FPV 5832D is the latest 5.8G 600mW wireless graphic transmission system released in 2013, composed of RC832 32 channel receiver and DE832Super 32 channel receiver. TR5832D graphic transmission system adopts 5.8G transmission frequency and 600mW power, has 32 frequency point, effectively avoid interference from other frequencies.

:
– RX/TX: RP-SMA jack
– Antenna: RP-SMA plus

Receiver RC832 parameters
– Operating frequency: 5.8GHz
– Launch frequency point: 32 points
– Input voltage: 12V
– Max working current: 200mA
– Antenna impedance: 50 Ω
– Antenna connector: receiving and sending module end RP – SMA antenna jack end RP – SMA plus
– 2db antenna gain
– Video impedance: 75 Ω
– Automatic video formats: NTSC/PAL
– Dimension: 80 * 65 * 15 mm
– Receiver net weight: 85g

Transmitter DE832Super parameters
– Transmission frequency: 5.8G
– Transmission power: 600mW
– Launch frequency point: 32 points
– The input voltage: 7-16V
– Antenna connector: launch module end RP – SMA antenna jack end RP – SMA plus
– 2db antenna gain
– Work current: 220mA @ 12V
– Working temperature: -10-85 ℃
– Automatic video formats: NTSC/PAL
– Video bandwidth: 8m
– Audio bandwidth: 6.5M
– the net weight: 22g
– Dimension: 54 * 32 * 10 mm

Package included:
– 1 x RC832 Receiver
– 1 x TS832 Transmitter
– 2 x 5.8G 2db Antenna
– 3 x Cables

Advantages of 32 Points:
1. 32 channels is the newest function for latest 5.8G emitter, just added 24 points on base of original 8 frequency points.
2. The quantity of points has no matter with the stability and transission distance.
3. More points could increase the compatibility (can use receivers from different factories and frequencies that the orignal 8 channel could not be compatible could work with one of the present 32 channels)and decrese the interference.
