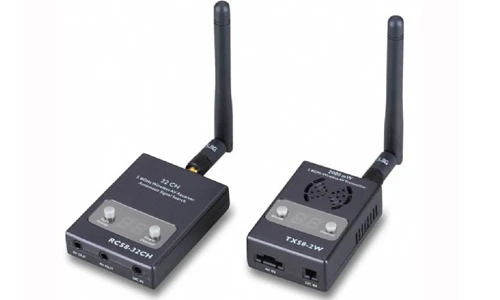

FPV 5.8GHz A/V TX58-2W AV Transmitter + RC58-32CH AV Receiver (TX + RX)

:

Feature of TX58-2W Transmitter
Working frequency: ISM 5.8GHZ
Available channel: 32CH
RF power: 2W
Power supply: DC 7-12V
Comsumption current: 800mA/12V
Antenna impedance: 50�
Antenna gain: 3dB
Video output level: 1.0Vp-p Type/75�
Audio output level: 1.0Vp-p Type/10K�
Video system: AUTO
Dimension: 58*40*20mm(L*W*H)
Weight: 60g
Working frequency :ISM 5.8Ghz, 32 channel  �
A: 5865 5845 5825 5805 5785 5765 5745 5725Mhz  �
B:5733 5752 5771 5790 5809 5828 5847 5866Mhz  �
C:5705 5685 5665 5645 5885 5905 5925 5945Mhz  �
D:5740 5760 5780 5800 5820 5840 5860 5880Mhz

Feature of RC58-32CH Receiver
Receiver Frequency: ISM 5.7GHz-5.95GHz 32 CH
Frequency control: built-in frequency and phase lock loop
Double lines AV output:analog AV signal output
TV System: PAL/NTSC/SECAM (AUTO)
ANT connector: SMA (needle inside)
Receiving sensitivity:-90dBm
Video input: 75�/1Vp­p
Audio input: 10K�/1Vp­p
Power Supply: DC12 volts
Current supply: 200mA
Size: 60*50*15mm
Weight:65g
Channel range CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
FR1 or (A) 5865 5845 5825 5805 5785 5765 5745 5725
FR2 or (B) 5733 5752 5771 5790 5809 5828 5847 5866
FR3 or (E) 5705 5685 5665 5645 5885 5905 5925 5945
FR4 or (F) 5740 5760 5780 5800 5820 5840 5860 5880

Package Included:
1 x TX58-2W Transmitter
1 x RC58-32CH Receiver
Cables
