FPV-FEVER RC800DVR 7inch Wireless FPV/DVR LCD Monitor W/Built-in 5.8G 32CH Receiver

FPV-FEVER RC800DVR 7inch Wireless FPV/DVR LCD Monitor W/Built-in 5.8G 32CH Receiver(High Definition, Highlight, No Flash)

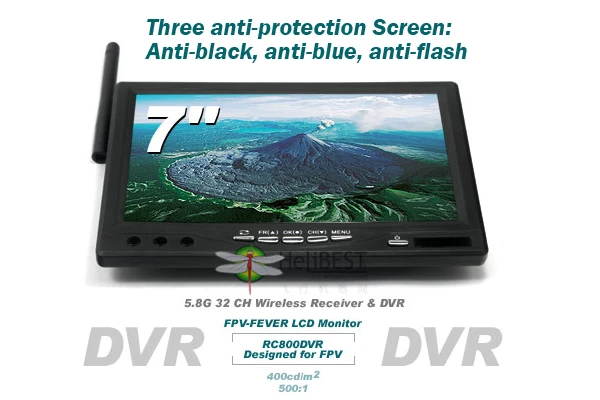

FPV-FEVER RC800DVR is specially designed for aerial photography and FPV, except for its super slim appearance, light weight, it also has a built-in 5.8G 32 frequency receiver, SD card video recorder and AAT antenna data interface. Same as other FPV-FEVER monitors, RC800DVR adopts FPV three anti screen design — Anti-black, anti-blue, anti-splash screen, even if the signal is weak, it can display images normally( may be “snow “, but no black, no blue screen, no splash screen). The use of ultra 400cd/m2 brightness and 500:1 contrast ratio, even in the outdoors, the monitor can also work correctly, 800 x 480 HD resolution makes you be able to observe more image details. RC800DVR also configured with a free sun shine hood!

The FPV-FEVER RC800 has a very high integrated internal procedures, which makes the frequency receiving and DVR recording can be set all in the OSD menu, the screen can directly disply the receiving frequency of receiver and battery power level.

What`s the effect of DVR function:
1.
Record returned video from wireless transmission system in realtime, equivalent to be a blackbox, and preserve information as important materials.

2.
Convenient for flyers analysising the flight condition.
3. Convenient for sharing flight videos.

Interface of RC800DVR display

The general view of the RC800DVR back part and Cables of RC800DVR display

Main Features of FPV-FEVER RC800DVR:
– FPV three anti screen design — Anti-black, anti-blue, anti-splash screen
– Built-in 5.8G 32 frequency receiver
– 400cd/m2 highlight, 500:1 contrast ratio, 800×480 HD display
– Support SD card MP4 format video recording (maximum support 32GB)

– Wide range input voltage (7V-28V)
– Support NTSC/PAL dual format system.
– 16:9 and 4:3 switchable
– Comes with AAT tracking antenna data interface
– Applies to: FPV, aerial photography

Technique Features of FPV-FEVER RC800DVR:
World Voltage: DC 7–28V (round power plug), can also use 11.1V lipoly battery.
Antenna Interface: SMA MALE needle
Power: <8W
Weight: 258g

Package Includes:
1x RC800DVR Monitor
1x 5.8G omni-directional antenna
1x Sunshade Hood
1x A/V output cable
1x power cord (JST connector)
1x USB cable
1x AAT data lines
1x Head Transmission System Line (FU Interface)

Work Frequency:
