Free Shipping!ARRIS C250 V2 250mm FPV Racing Drone RTF W/ Radiolink AT9S And EV800D FPV Goggle (US Warehouse)

The ARRIS C250 V2 settings file of betaflight is here.

Order C250V2 drone combo now, and you will TARRIS 4S 14.8V 1500mAh battey for free.

ARRIS C250 V2 RTF With Radiolink AT9S and EV800 FPV Goggle is fully assembled, tuned and ready to fly.ARRIS C250 V2 is one more professional 250 fpv racing drone produced by ARRIS on the basis of the ARRIS C250. The same as the ARRIS C250, the C250 V2 has the advantage of simple structure and high strength. In the meanwhile, ARRIS C250 V2 adopts 4in1 30A tower for the first time, improve the performance of the drone much.



Main Features:
1. Simple structure frame installed with tower structure ESC/PDB, easy to assemble and easy to repair.
2. High quality 3K Carbon fiber frame, the material is imported from Janpan
3. 4mm thick arms, super strong and durable
4. Super Light frame, only $136g
5. The tower ESC/FC comes with integrated OSD, no need to install it separately
6. The angle of the FPV camera is adjustable
7. 4mm thick arms, super strong and durable
8. High efficiency X2205 2300KV motor provides you better performance and longer working life
9. High quality 5042 3 blade propeller, 10% higher efficiency than normal propellers
10. High safety 4S 1500mah 50C lipo battery

Specifications:
Dimension:195mm x 230mm x 42mm (Propellers not included)
Diagonal Wheelbase: 250mm
Flight Controller: F3 flight Controller
Frame Material: Pure Carbon fiber
BNF weight:350g
Radio System: Radiolink AT9 with R6DSM receiver
Camera: ARRIS FPV Mini Camera
FPV TX: 5.8G 200mw 40CH
Antenna: 5.8G Antenna
Flying Time: 10min hovering
Battery: ARRIS 4S 1500mah 50C Lipo

ARRIS C250 V2 is made of pure carbon fiber material. The upper plate and side plate adopts 1.5mm pure carbon fiber material, decrease the weight of the whole frame. Meanwhile, the motor arm adopts 4mm carbon fiber material, ensure the strength of the frame. The total weight of the frame is about 137g.With the simplify one-piece design and lower gravity center design, all kinds of flight actions can be done with facility.The layout design of the C250 V2 is reasonable, the standard flight controller and PDB board can install there.On the frame, there is reserved space for the XT60 female battery connector.The motor arm has holes for 220x series motors, and both 5 inches and 6 inches propellers can install on the C250 V2 frame.

The main advantages of the 4in1 30A Tower:
1. With the double layer design, you just need to plug the pins between esc and flight controller, flight controller and other electronic components. The layout is more concise, decrease the weight of the drone, provided guarantee for flight performance improvements.
The power for flight controller and camera is provided by the BEC on the flight controller. The power for video transmitter is provided by battery. This improves the anti-interference of the video transmission.

2. The tower integrated the OSD, avoid to install it additionally and the adjustment.The drone could get a quick response to the throttle during the flight.

3. The Tower structure design protects the ESC well during the flight. According to our experience, some of the ESC were damaged by the propeller rotation or tree brunch cut, and some of the ESC were damaged due to the broken of the motor arm during the crash when it installed on top of the motor arm. Sometimes, in order to protect the ESC, we added ESC cover to protect it. From this, the weight of the drone increased. For this tower, the esc integrated in the tower which installed in the middle of the quad frame, the ESCs can be protected quite well and make it looks better.

With the high performance ARRIS X2205 2300KV brushless motor, the ARRIS C250 V2 has outstanding power.
Main Features:
1. Adopts the brand new M5 steel shaft, improving the structure strength.
2. Anti-slip pro design.
3. Upgrade to centrifugal fan design, optimizing the heat dissipation.
4. Adopts original Japan NSK bearing, improving the performance of the motor.
5. Adopts N52 tile-shaped magnets.
6. The motor passed more than 20 kinds of tests before leaving the factory, ensure the quality of the motor.

The ARRIS C250 V2 adopts with the latest 5045 propeller, it has bigger windward area, well balance and strengthen root, and the efficiency is 10% higher than normal propeller. This propeller is the first choice of FPV racing drones.

ARRIS Camera for FPV Racing Drones–ARRIS XAT700M HS1177 fpv mini camera is specially designed for FPV. This camera performs well in both bright and dark condition with 700TVL high quality image. And the camera angle on the drone is adjustable.

ARRIS 5.8g 200mW 40-CH video TX and antenna pre-assembled.The ARRIS TS5823L with LED is transmitting a full range of 40 channels and only weighs 10g. It’s perfect for a wide range of aircraft!With a goggle or monitor in hand, you can begin your FPV journey.

ARRIS X-Speed C250 V2 has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable) according to CF parameter-adjustment software. In addition, you can also locate your racing drone through triggering the buzzer with the switch D on the transmitter.

Self-level mode is the easiest to fly, because when you leave the stick at the center and not controlling it, your drone just level itself and stays there.This mode is good for beginners.
Manual mode is useful for acrobatics such as flips or rolls, or FPV when smooth and fast control is desired. The picture below is what we set on our own Radiolink AT9 Radio.

RadioLink AT9 9-Channel 9CH 2.4GHz Transmitter + R9D Receiver.The AT9 radio is with high performance-price ratio. And it can support strength, receiver voltage monitored, extending battery voltage, temperature, motor RPM, GPS etc.

High safety ARRIS 4S 1500mah Lipo Battery

ARRIS 4S 1500mAh 50C lipo battery is specially designed for FPV racer. The price of this battery is much higher than the similar batteries in the market, because we only sell top-quality batteries. As we all know, the low quality battery might have potential safety hazard, we will never tolerate such products.For ARRIS 4S 1500mah lipo battery, we have done UN38.3 test,1.2M Drop test,MDS report for it, for the test report, you can check here.

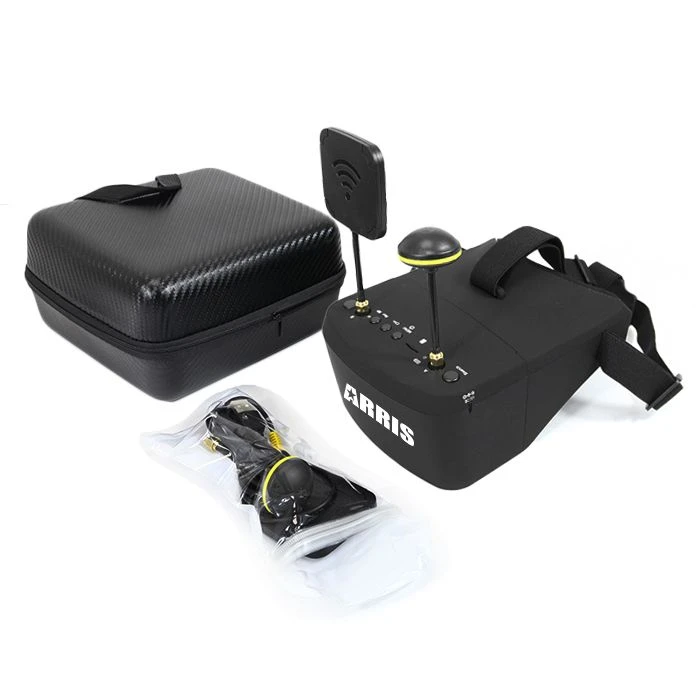

EV800D Main Feature:
-With DVR,you can record videos anytime and anywhere;
– Low power consumption;
– Double antenna reception to make the signal more stable;
-Auto-Searching,support a key search frequency;
– Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
– Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time for DVR OFF and 2.5 hours for DVR ON;
– Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as back-up power source, to prolong the working time;
– Ergonomic design fit your faces;
– Super-wide visible angle up to 82 degree;
– 92% transparent lens adopted, no distort, no blur on the adage of screen;
– Light weight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
– 5 inch 800*480px HD high brightness LCD screen
-Universal USB charging interference;
-Real-time video return,very low time-delay;
-Support external video signal input;
-Support Audio signal output;



Specification：
Item No.	5.8G EV800D Goggles with DVR
DVR	REC size:VGA/D1/HD REC sound: ON/OFF REC time:OFF/3min/5min/10min Frame rate:30 frames Compress format:MJPEG Record flie format:AVI
Screen	Screen size: 5.0 inch Screen resolution: 800*480 (No blur after enlarge by the lens) Display Ratio:16:9 Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV View Angle: 140/120 degree(Horizontal/Vertical)
Lens	2.8xfresnel lens; 92% transparent rate no distort of light;
Battery and recharge	Built-in 3.7V/2000mAh battery; Each battery circle offer around 2.5-3.5hr working time; 5-12V wide recharging voltage range, typical recharging voltage is 5V Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time

Interface

Antenna:2xRP-SMA antenna USB:To charge the battery AV jack:External video signal input or internal Audio signal output Card slot: TF-card,support up to 32G(C10 recommend)

Receiver Build in 5.8G 40CH Raceband receiver Frequency Table Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725 Frequency Band B 5733 5752 5771 5790 5805 5828 5847 5866 Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945 Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880 Frequency Band R 5658 5695 5732 5769 5806 5843 588 5917 Body Dimension: 180x140x84mm Weight: 393g (with headbrand,not include antennas)

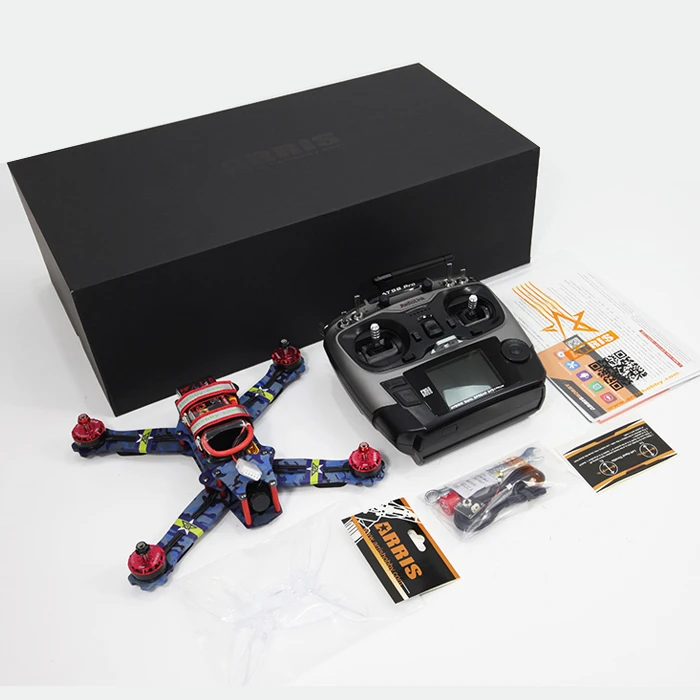

Package Include:

1 x ARRIS C250 V2 Racing Quad Frame
4 x ARRIS X2205 2300KV Brushless Motors
1 x Flycolor Tower w/ F4 30A 4 in 1 ESC + F3 + OSD + PDB
4 x ARRIS 5045 3-blade Propeller
1 x ARRIS Mini Camera
1 x 5.8G 200mw 32CH FPV TX
1 x FPV Transmitter Antenna
1 x Radiolink AT9S Transmitter with receiver
1 x ARRIS Buzzer
1 x ARRIS 4S 1500mah Lipo Battery
1 x ARRIS EV800D FPV Goggles

Note: Battery Charger is sold separately.
