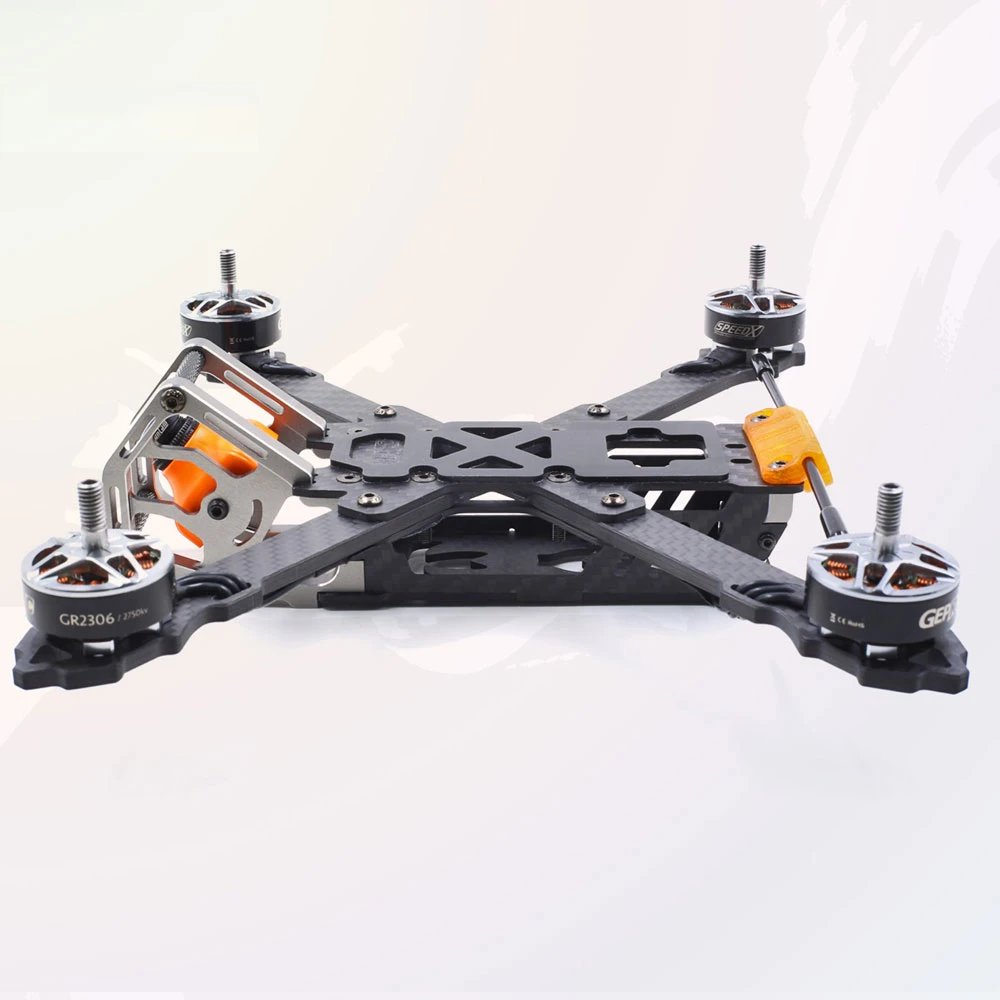

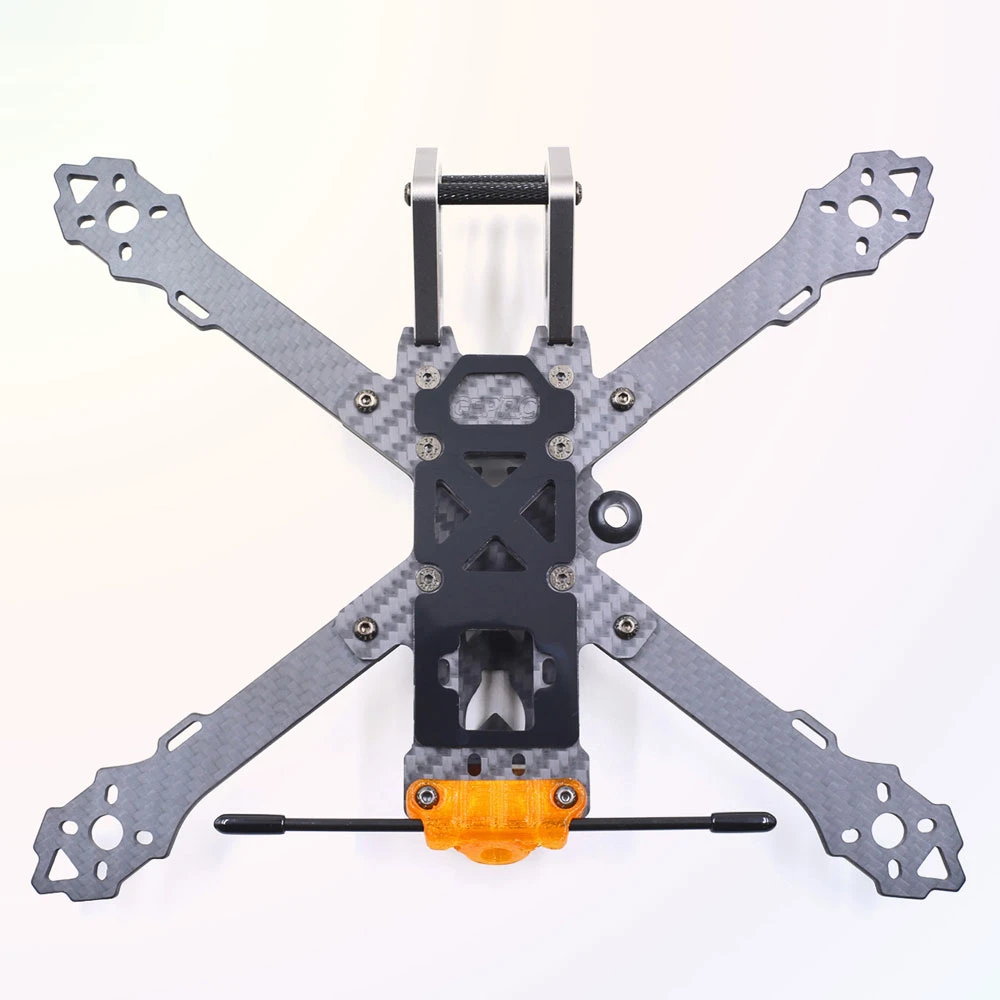

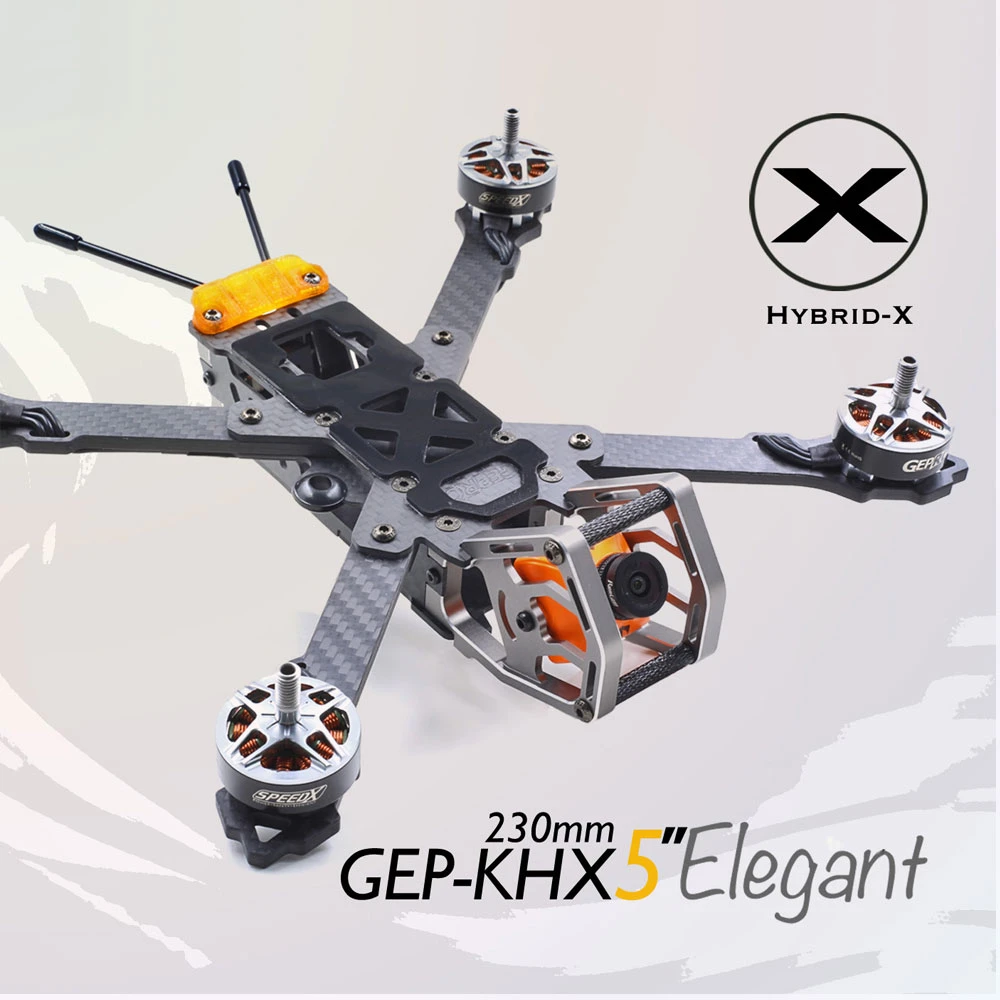

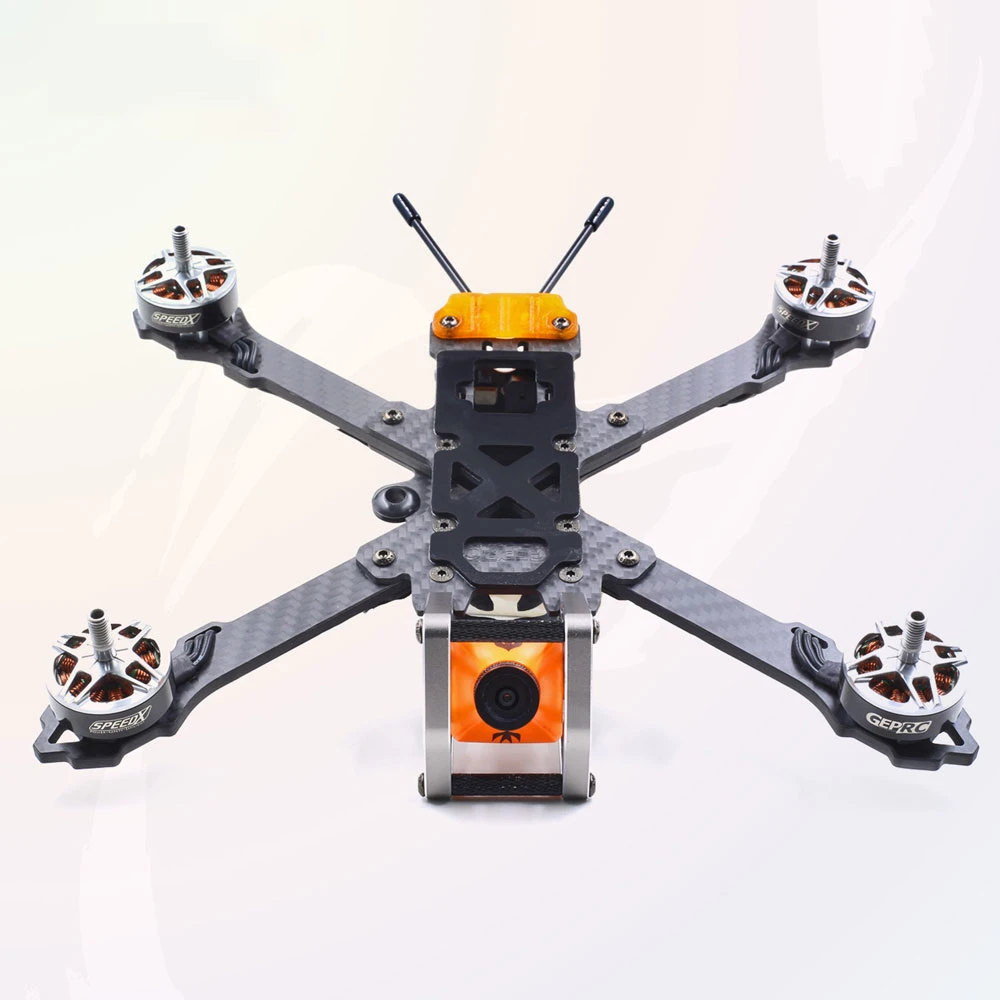

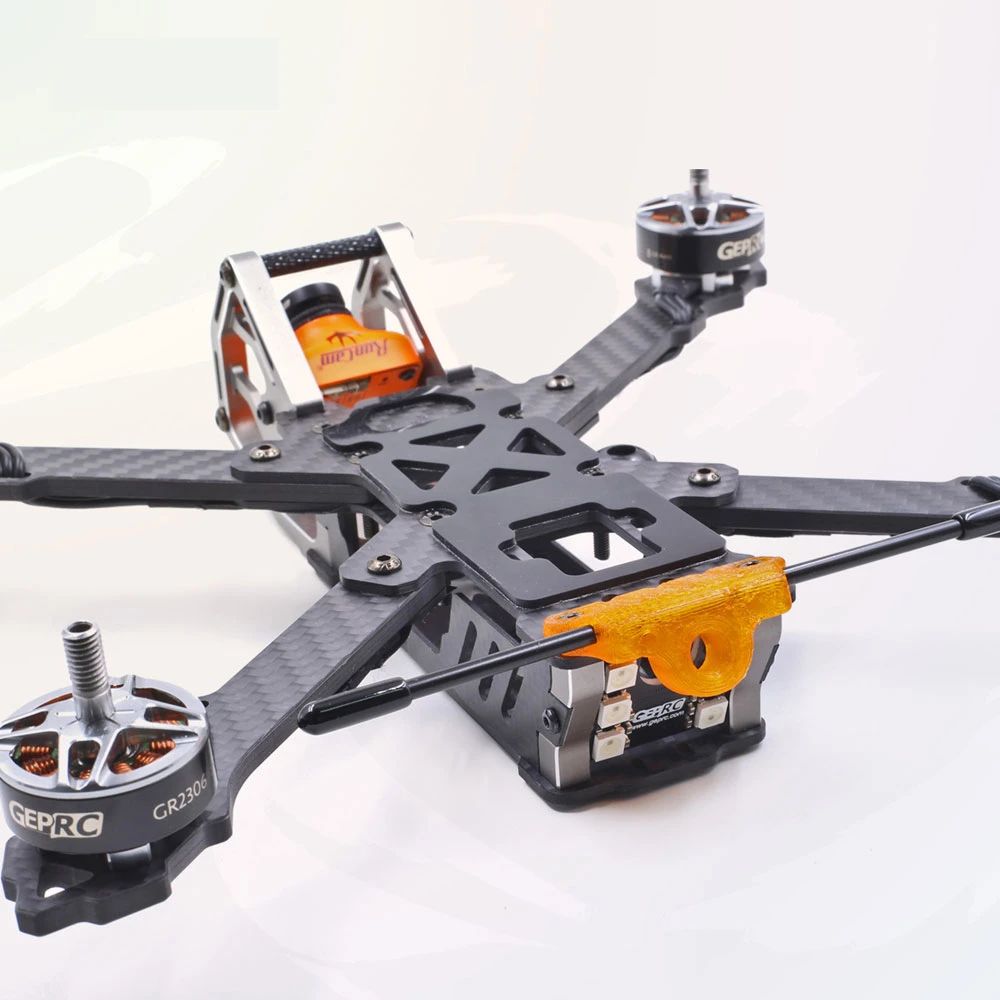

GEPRC GEP KHX5 Elegant Hybrid X FPV Racing Drone

GEP KHX5 Elegant is the upgrade version of the GEP KX5 Elegant. Compared with KX5 version, the KHX5 Elegant adopts Hybrid-X split structure, reduced the wheelbase from 245mm to 230mm, adjust on some dmall details like the 3D print parts for antenna.

Main Features:
1. The battery is placed above the arm, symmetrically distributed with the body up and down, the center is in the middle of the whole frame.The output of each axis of motor is more balanced and more efficient while reducing the risk of battery damage during crash.
2. 7075 aviation aluminum alloy with high precision CNC processing, nice looking and strong.
3. Hybrid X structure, reduce the wheelbase, durable and flexible
4. The frame is made of carbon fiber plate and alminium parts, the structure is strong, and it can protect the electonic components well.
5. The frame comes with 2812 tailight with built-in buzzer.
6. The motor base has a prominent edge design to protect the motor in the event of crash, and a new motor line limit hole is added. The motor wire can position under the arm to better protect the motor wire and ESC.
7. YFS screws (strength: grade 12.9) can ensure a good hardness

Specifications:
Name：GEP-KHX5 Elegant
Weight：120g
Wheelbase：230mm
Props Size: 5inch
Size：210 x 178mm
Arms board:4mm
Base board:2mm
Side board:1.0mm

Recommended Electronic Components:
Flight Controller：F3 / F4 / Naze32 / CC3D
Motors： 2204/2205/2206/2305/2306
ESC：20A-35A
Propeller：5inch
Battery: 3S 1300mAh ~ 4S 1500mAh

Package Included:
GEPRC GEP KHX5 Elegant Hybrid X FPV Racing Drone Frame x 1
