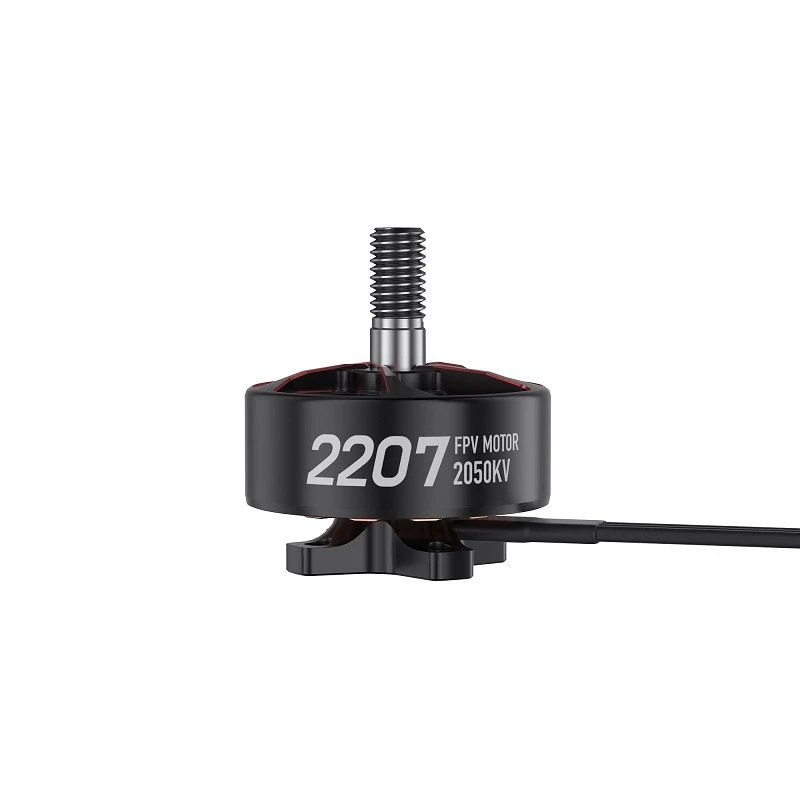

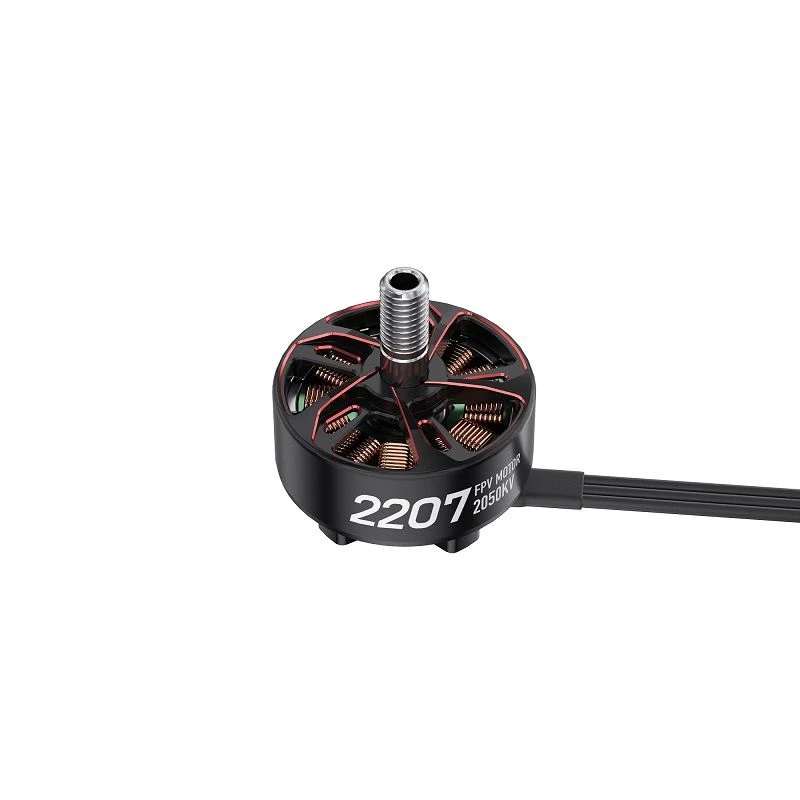

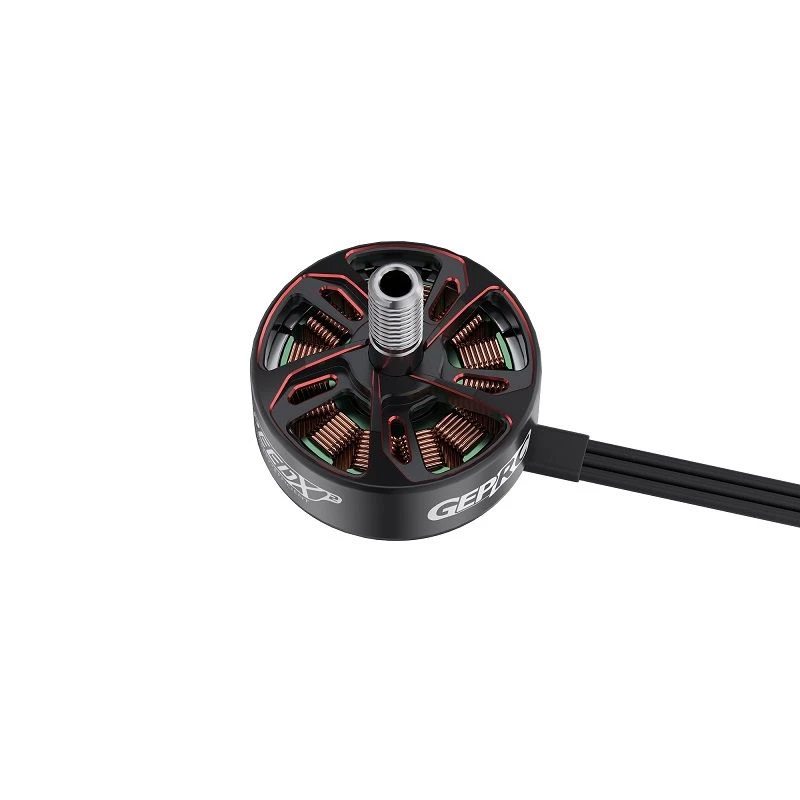

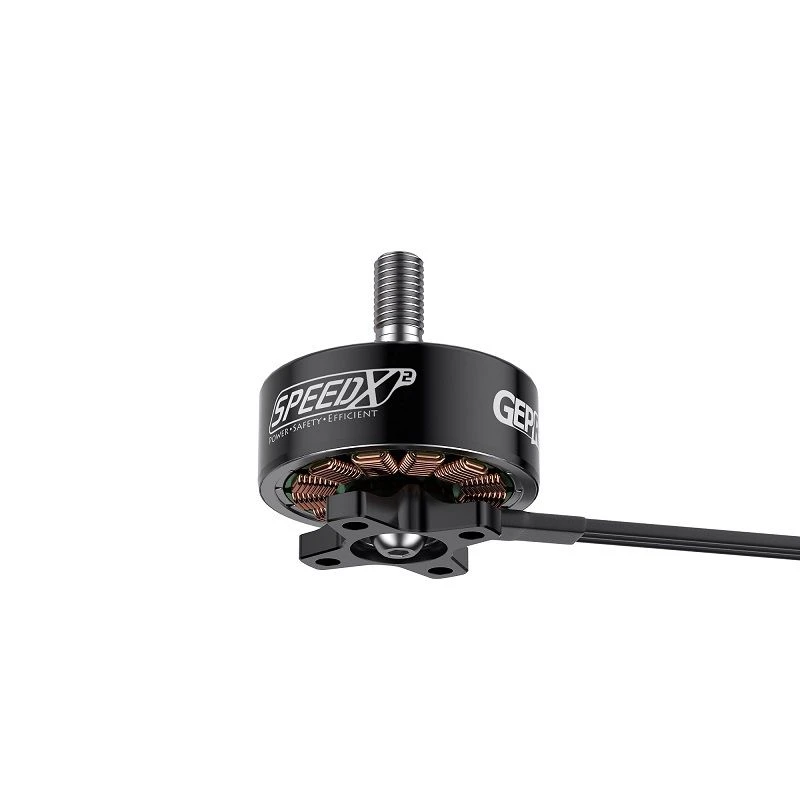

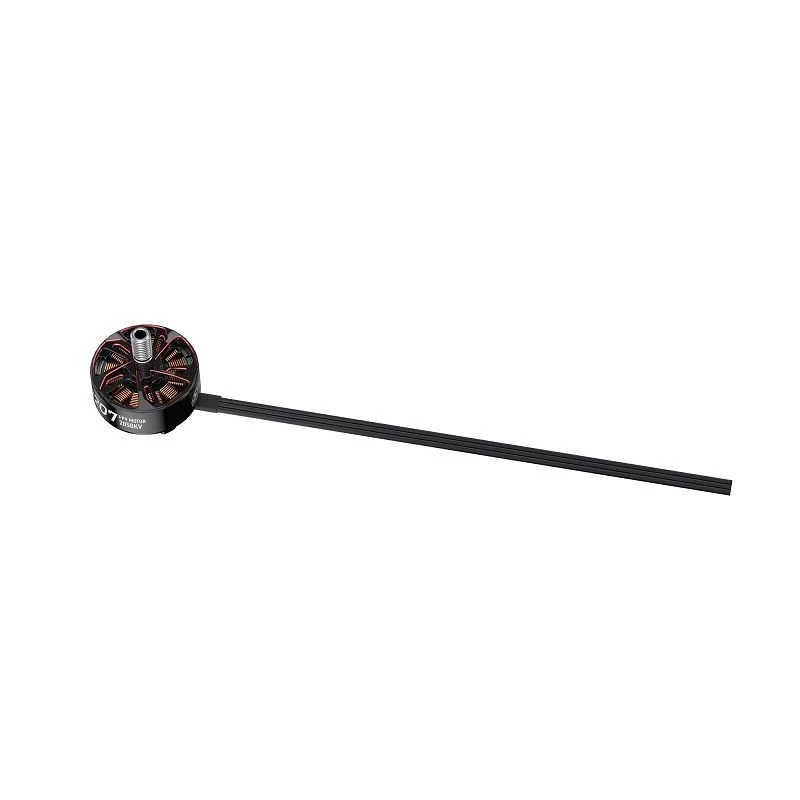

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads - Image 2

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads - Image 3

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads - Image 4

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads - Image 5

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads - Image 6

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads - Image 7

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads -Drone Supply Store geprc motor 19

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads -Drone Supply Store geprc motor 20

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads -Drone Supply Store geprc motor 21

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads -Drone Supply Store geprc motor 22

GEPRC SPEEDX2 2207 1960KV/2050KV Motorf Or 4inch-5inch Racing FPV Quads

Original price was: $23.99.Current price is: $16.79.

SKU: CMMTD 3684061226 Categories: Racing Drone Motors, RACING DRONES

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

PRODUCT DESCRIPTION

The SPEEDX2 2207 motor is specially designed for FPV competitions. This motor focuses on violent high performance and high-response design ideas. The material used is enameled wire with a temperature resistance of 360°C. Even if the motor temperature is high, it can avoid burning the motor. The gap between the motor magnet and the stator is controlled to a precise width of 0.13mm, which can achieve higher response speed.
The KV values of the SPEEDX2 2207 racing motor are: 1960KV suitable for novice racing pilots, and 2050KV suitable for professional racing pilots.

Feature:
1. The enameled wire has a temperature resistance of up to 360°C, a smaller gap between the rotor and the stator, and a faster response.
2. The appearance of SPEEDX2 2207 is black and red, highlighting the exquisite details.
3. In terms of motor magnetic circuit design, choose a solution with high explosive force and high response.
4. The surface of the motor is treated with fine CD texture, which can effectively prevent scratches from affecting the appearance.
5. Made of 7075 aviation aluminum alloy, high-precision CNC integrated molding, lighter weight.

Specifications:
SPEEDX2 2207 1960KV Motor
KV: 1960KV
Configuration: 12N14P
Magnet: N52H ARC
Rotor material: 7075-T6 aviation aluminum alloy
Stator diameter: 22mm
Stator height: 7mm
Output shaft diameter: Φ5mm
Dimensions: Φ30.3mm *27.40mm
Outlet specification: 20AWG 150mm
Rated voltage: 25.2V 6S LiPo
Maximum power: 1315.4W
Maximum current: 52.2A
Mounting hole: 16x16mm (M3)
Color: black with red
Weight: 32.4g (including wire)
Applicable models: Suitable for 4inch-5inch racing FPV quads
SPEEDX2 2207 2050KV Motor
KV: 2050KV
Configuration: 12N14P
Magnet: N52H ARC
Rotor material: 7075-T6 aviation aluminum alloy
Stator diameter: 22mm
Stator height: 7mm
Output shaft diameter: Φ5mm
Dimensions: Φ30.3mm *27.40mm
Outlet specification: 20AWG 150mm
Rated voltage: 25.2V 6S LiPo
Maximum power: 1411.2W
Maximum current: 56A
Mounting hole: 16x16mm (M3)
Color: black with red
Weight: 32.4g (including wire)
Applicable models: Suitable for 4inch-5inch racing FPV quads
