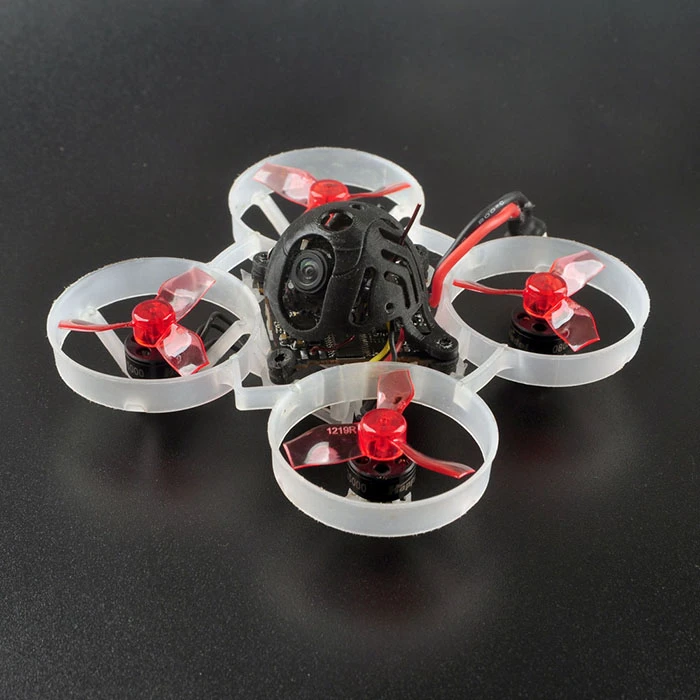

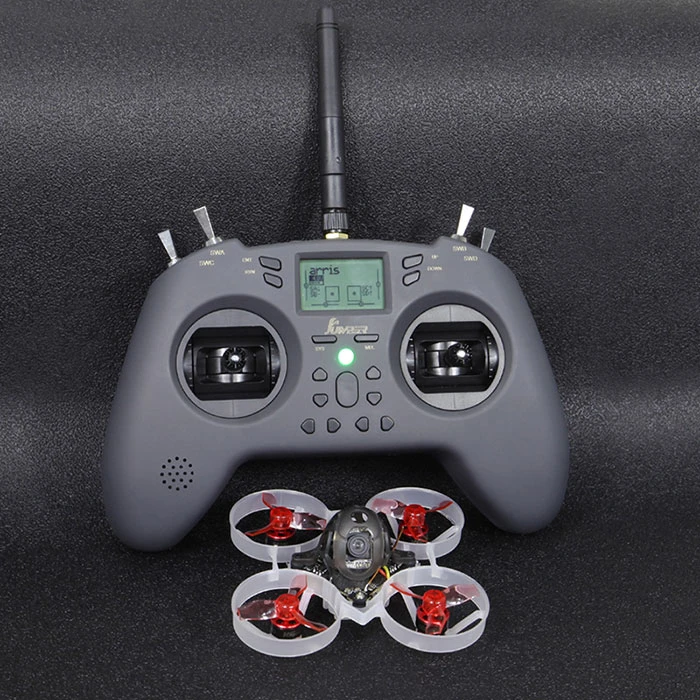

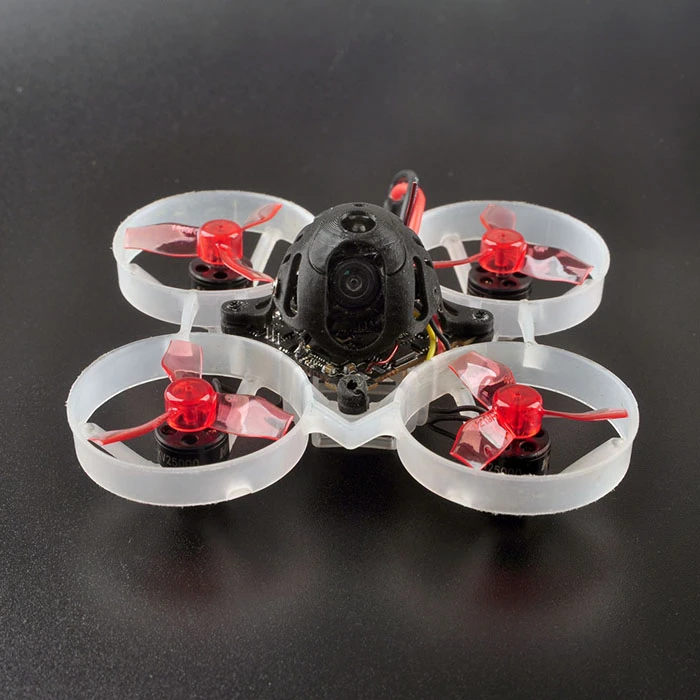

Happymodel Mobula6 1S 65mm Brushless TinyWhoop Drone RTF With Jumper T-Lite V2 Radio

Happymodel Mobula6 1S indoor brushless tinywhoop racing drone withe Jumper T-lite radio RTF is specially designed for indoor flying. Mobula6 is a highly integrated ultralight tiny whoop. It is small and portable, the weight is only 20g. Happymodel Mobula 6 tinywhoop RTF comes with the highly integrated integrated Crazybee F4 Lite flight controller with OSD, Dshot ESC, 2.4G SPI receiver, 5.8G VTX, 0802 motor KV19000 / 25000KV motor with 31mm propeller. Settings all set well in the radio, ready to fly. Great choice for beginners to fly indoors.

Specifications:
Item Brand: Happymodel
Item Model: Mobula6 with internal receiver
Wheelbase: 65mm
Size: 80mm x 80mm x 37mm

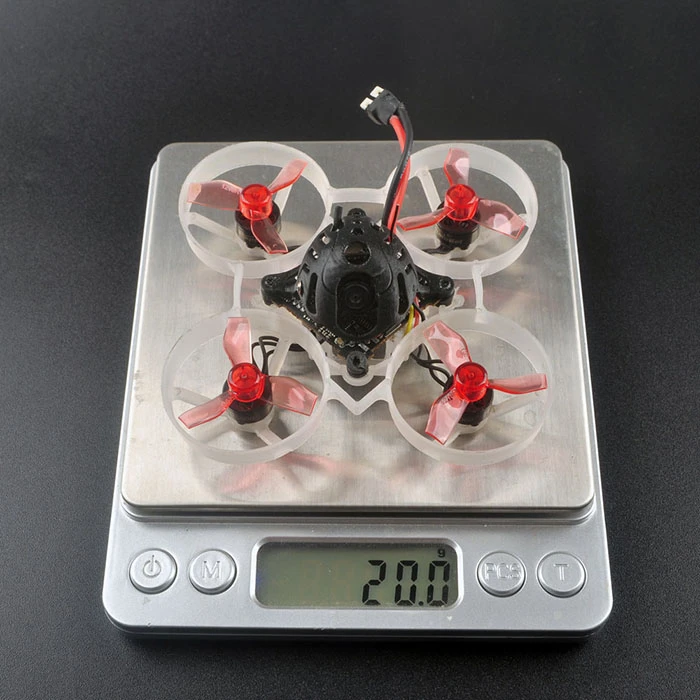

Weight: 20g(without battery)
Radio: Jumper T Lite with JP4IN1 Multi-Protocol Module

On SWB Potion, we set “Lock” “Attitude Mode” and “Acro Mode” there as below:

When you receive the drone, plug the battery, Turn on the radio, bind with the drone unlock the drone, you can fly it.


Features:
1.AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
2.Extreme light 1S 65mm Brushless whoop only 20g
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
3.Smooth and powerful
4.Compatible for 1S Lipo/LIHV
5.Camera Angle adjustable

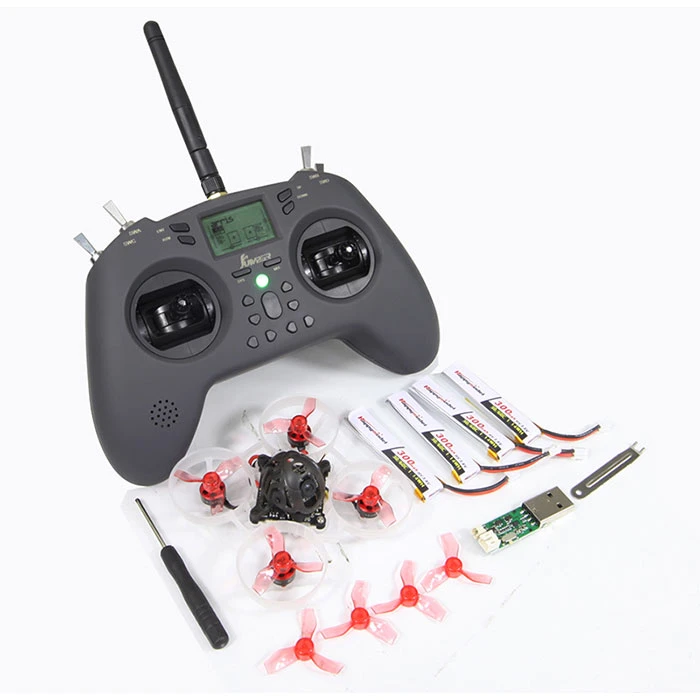

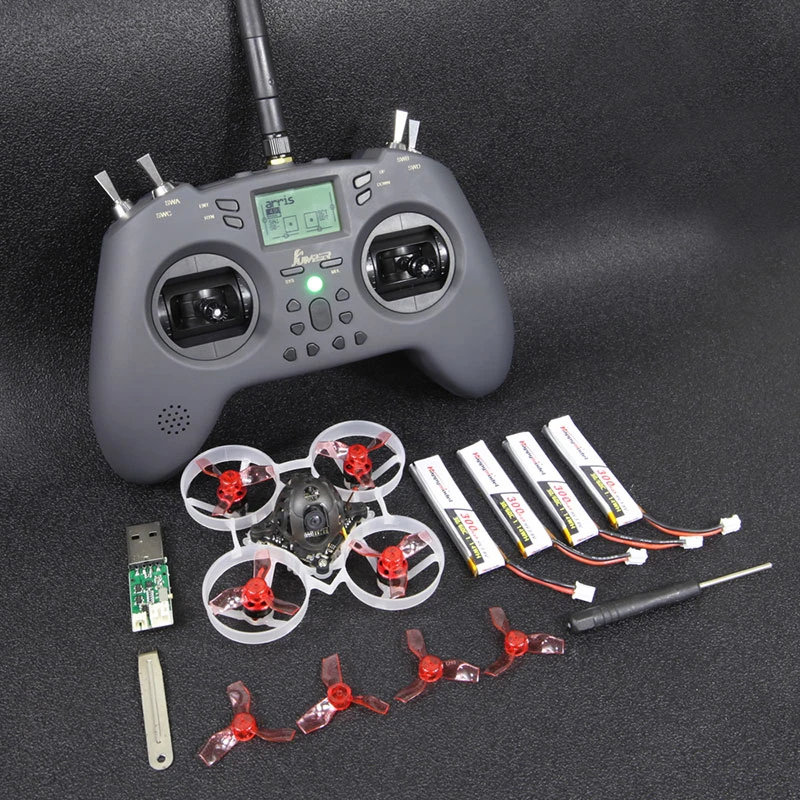

Package includes:
Mobula6 1S 65mm whoop Drone Frame x 1
Crazybee F4 Lite flight controller x 1
SE0802 KV19000 brushless motor x 4
Gemfan 1219-3 Propellers(4cw+4ccw) x 1
Runcam Nano3 1/3 CMOS 800TVL camera x 1
Frsky SPI D8 or Flysky SPI Receiver x 1
5.8G 25mw 40ch vtx (Flight controller built-in) x 1
1S Lipo/LIHV USB Charger x 1
Propeller disassemble tool x 1
Jumper T-lite V2 with JP4IN1 Multi-Protocol Module radio x 1
1S 300mah battery x 4

Note: With the battery of drone and transmitter, the shipping time will be longer. “”.


Spare parts specifications:

Motor	Mode: SE0802 19000KV  Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm Weight(g):1.9g No.of Cells(Lipo):1S only
Propellers	Gemfan 1219-3 Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Weight:0.28g
Flight controller	(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC Built-in voltage detection
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version	SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard Flysky SPI receiver Version	SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support
Onboard 5.8g VTX	Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band  Smartaudio ready
Runcam Nano3	Model: RunCam Nano 3 Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: [email protected] D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V  [email protected] Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm
Lipo Battery	Capacity:300mAh Voltage:3.8v Continuous Discharge Rate: 30C Size: 57mmx12mmx7mm Weight: 8g Connector: PH2.0
Jumper T Lite Radio	Channel: 16CH Gimbal:Hall Sensor Screen:1.3 ” LCD screen Size: 166*106*56mm Weight: 260g (with18650) Voltage: DC3.5-4.2V Battery: 1×18650( Battery not included ) External MicroSD Card: reserved SD cards lot
