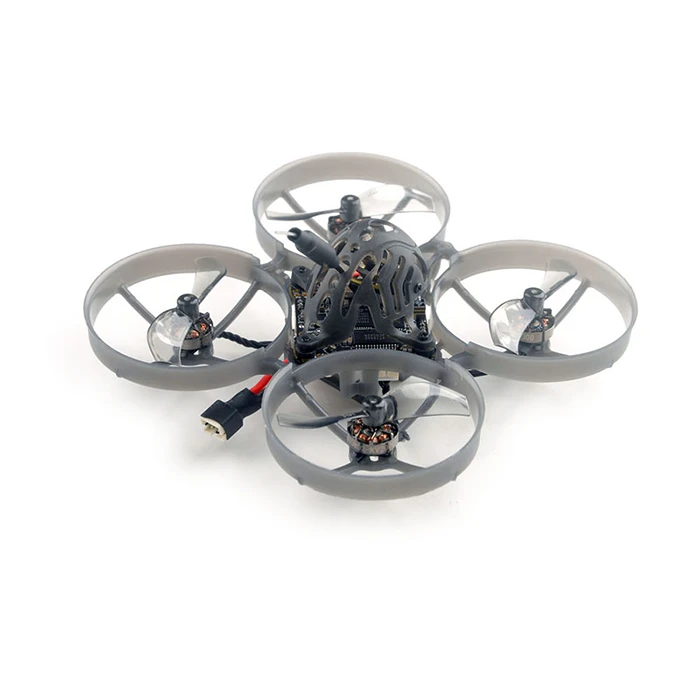

Happymodel Mobula7 1S Micro FPV Whoop Drone With Jumper T Pro V2 ELRS Radio

Note:The radio has been upgraded to jumper T-Pro V2 radio!


Happymodel Mobula7 1S brushless fpv whoop drone comes with Jumper T Pro with Internal 2.4G 1000mW ExpressLRS ELRS module Radio. It is the best choice in the whoop season. It is really the best fpv whoop drone to fly indoors.

The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.

New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.

Features:
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah battery(Not include)

Specifications:
Brand Name: Happymodel
Item Name: Mobula7 1S 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm
Weight: 24g

Spare parts specifications:

Motor	Mode: RS0802 KV20000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm Weight(g):2.0g No.of Cells(Lipo):1S only
Propellers	Weight:0.24g Material:PC Pitch:1 inch Props Dia:40mm Center Thickness:5mm Center Hole Dia:1.5mm
Flight controller	X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 or ICM20689(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A Built-in voltage detection Built-in current sensor
Onboard 4in1 ESC	Power supply: 1S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol:  SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8/D16 receiver Version	SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels: 8ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meter Failsafe support
Onboard Flysky SPI receiver Version	SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 200meter Failsafe support
PNP Version (without onboard receiver)	Full UART1 for external Receiver Support CRSF/GHOST/SBUS/IBUS/DSMX protocol IR1 pad(invert RX1) used for SBUS input
Onboard 5.8g OPENVTX	Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw)
Runcam Nano3	Model: RunCam Nano 3 Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 150° Signal System: NTSC S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: [email protected] D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V  [email protected] Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm
Lipo Battery	Capacity:650mAh Voltage:3.8v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 60mmx18mmx8mm Weight: 16g Connector: PH2.0


Jumper T Pro with Internal 2.4G 1000mW ExpressLRS ELRS module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX


Main Feature:
Internal 2.4G ExpressLRS Module
OpenTX firmware
Hall sensor gimbals
USB-C internal charging
Up to 16 channels of output (depending on the receiver)
Wide voltage input (2pcs 18650 recommended)
Vibration reminder function
Support telemetry (depending on the receiver)
LUA Script support: Yes

Specification:
Size:160*128*68
Weight: 488g (without battery)
Working voltage: DC6V-DC8.4V
Firmware: OpenTX
Display: 1.3 inch LCD display, 128* 64 resolution
Gimbal Type: HALL Sensor
Upgrade method: USB online upgrade
Simulator mode: 3.5mm standard ppm output or USB
Battery: 2×18650 (Battery not included)
External Micro SD Card: reserved SD card slot



Package includes:
1pcsx Happymodel Mobula7 1S Micro FPV Whoop Drone
1pcsx  Jumper T Pro V2 ELRS Radio
