Hawkeye Little Pilot Master 2.5/3.5 ” 5.8G 48CH 960×240 FPV Mini Display Monitor For RC Drone Airplane
Original price was: $37.99.$26.59Current price is: $26.59.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
The monitor comes with built-in battery,and it takes more shipping days.
The Hawkeye little pilot master is super mini 2.5”/3.5” display.The resolution is 960×240 and comes with dual receiver.The 3.5mm interface input/output that can be inserted into DJI Goggles directly.
Specification:
Brand: Hawkeye
Model: Little Pilot
Item: Master/Xitu Edition FPV HD Monitor
Display resolution : 960×240
Backlight : LED

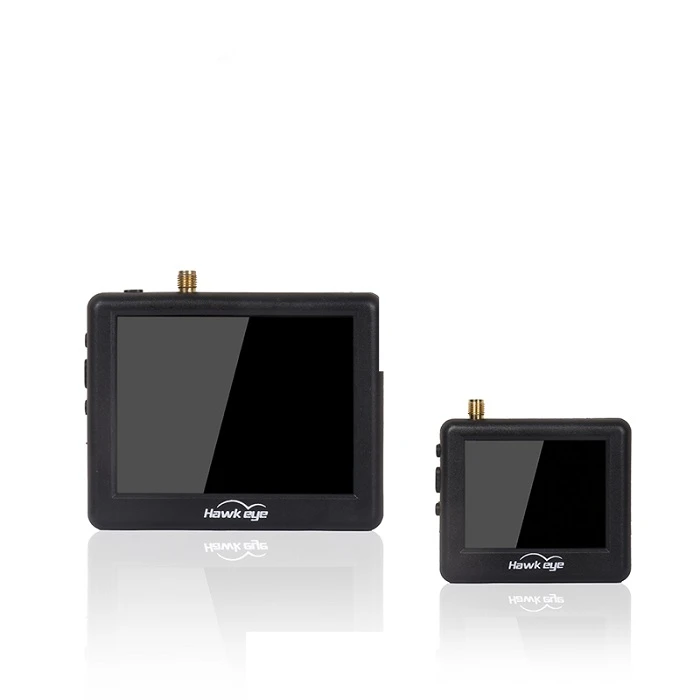

Size : 2.5 Inch/3.5Inch
Brightness : 350 Lux
Aspect ratio : 16:9
Response time : <10ms
Color system : PAL/NTSC
Battery life : About 1.5-2.5 hours
Signal : Video(PAL/NTSC/Auto)
Monitor size : 66×57×14mm/90×72×17mm
Gross weight : 55g/110g
5.8G Sensitivity : -94dB
Matching antenna : RP-SMA
Video Input/Output : 3.5mm interface, can be inserted into DJI Goggles directly.
LHCP/RHCP : LHCP
Channel : 48CH
Voltage : Micro USB, 5V
Color: Black
Package included:
1x Monitor
1x Antenna
1x 3.5mm video cable
1x Manual
1x Sticker
Frequency Group Selection:
You can select the desired frequency from 6 groups: A,B,C,D,E and F
| Â | A | B | C | D | E | F |
| 1 | 5.645G | 5.740G | 5.725G | 5.733G | 5.658G | 5.362G |
| 2 | 5.665G | 5.760G | 5.745G | 5.752G | 5.695G | 5.399G |
| 3 | 5.865G | 5.780G | 5.765G | 5.771G | 5.732G | 5.436G |
| 4 | 5.705G | 5.800G | 5.785G | 5.790G | 5.769G | 5.473G |
| 5 | 5.885G | 5.820G | 5.805G | 5.809G | 5.806G | 5.510G |
| 6 | 5.905G | 5.840G | 5.825G | 5.828G | 5.843G | 5.547G |
| 7 | 5.925G | 5.860G | 5.845G | 5.847G | 5.880G | 5.584G |
| 8 | 5.945G | 5.880G | 5.865G | 5.866G | 5.917G | 5.621G |
Â
| Size | 2.5inch(KA0025), 3.5inch(KA0024) (+$8) |
|---|
