HGLRC Zeus F728 3-6S Flight Stack For FPV Racing Drone F722 Flight Controller 28A BL_S 4in1 ESC

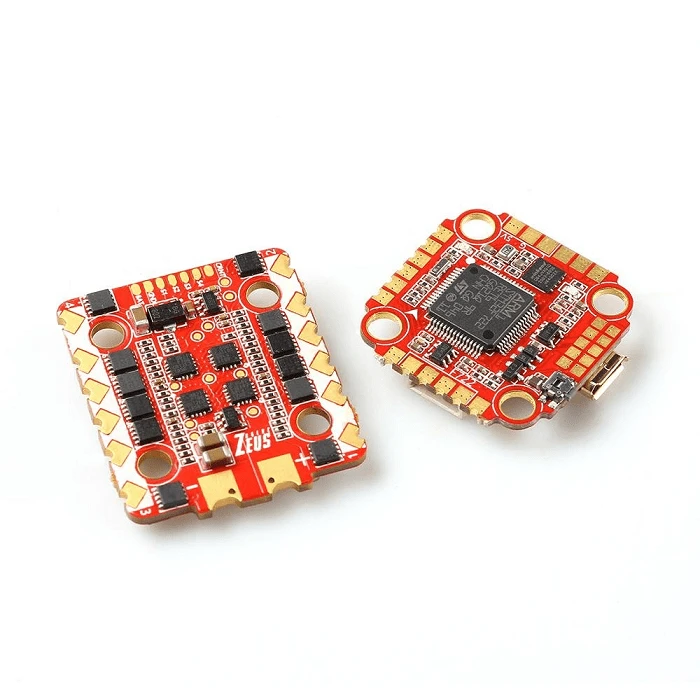

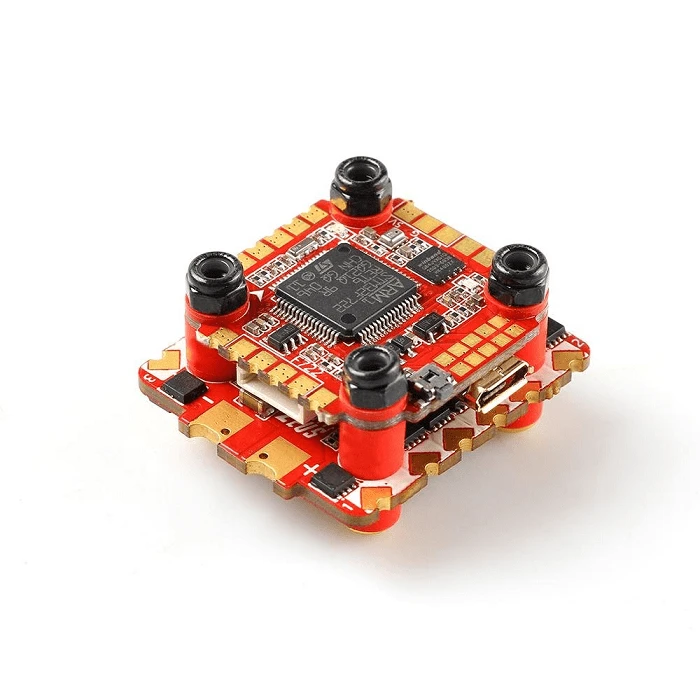

The HGLRC Zeus F728 Mini Stack has an F722 Flight controller combined with a 28A ESC. This stack has a 20×20 mounting pattern and a flight controller that houses an MPU6000 gyro and 3-6S direct lipo support. Comes with an integrated barometer, 16M black box, and integrated DJI, LED, and GPS connector.

Features:
1.An Integrated LED controller allows quick programming of LEDs with the push of a button.
2.Easy direct soldering for XM+, NANO receiver, and TBS Nano VTX
3.Quickly connect DJI and LED and GPS via socket
4.Integrated barometer and 16M black box.
5.Maximum BEC 9V/1A & 5V/2A Output
6.Reserved Soldering Pad
7.Enlarged Soldering Pad
8.High-Speed Blackbox
9.Ammeter Built-in
10.Current Sensor
11.TVS Diode

Specification:
Item Name:ZeusF728 Flight STACK
Usage:for 100mm-450mm Frame Kit
FC Firmware:BF HGLRCF722(HGLR)
Installing Hole:20X20mm.M3

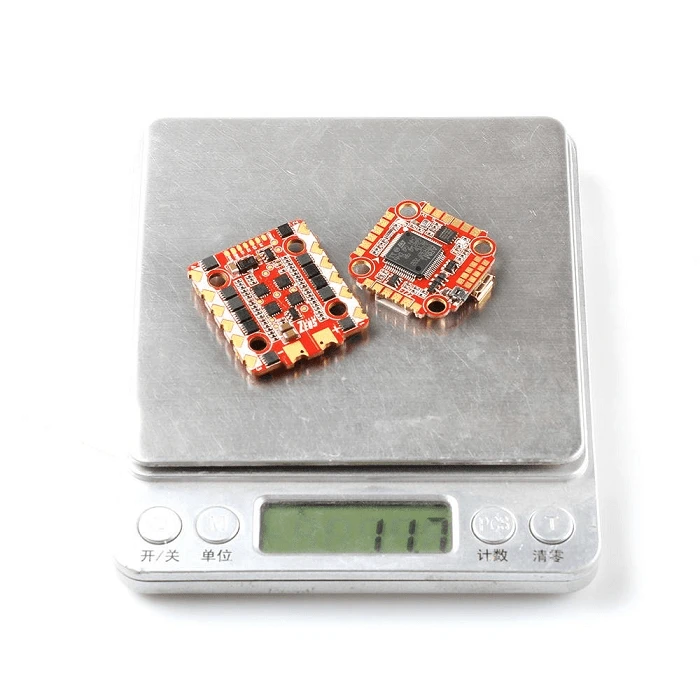

Weight:11.7g

Zeus F722 mini Flight Controller Support I2C function
MPU:MPU6000
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo

Zeus 28A BL_S 3-6S 4in1 ESC
Input Voltage:3-6S Lipo
Steady Current:28A
Peak Current:35A（10 Sec）

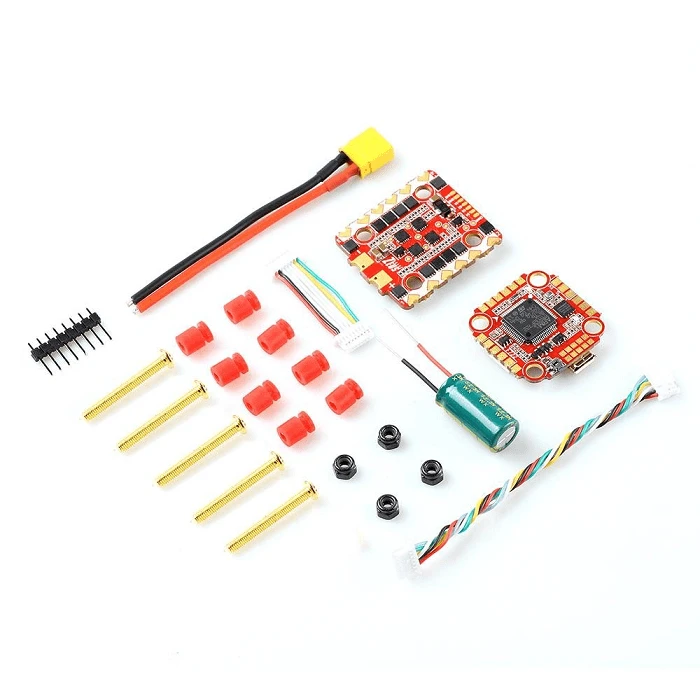

Package Included:
1x Zeus F722 mini Flight Controller
1x Zeus 28A BL_S 3-6S 4in1 ESC
