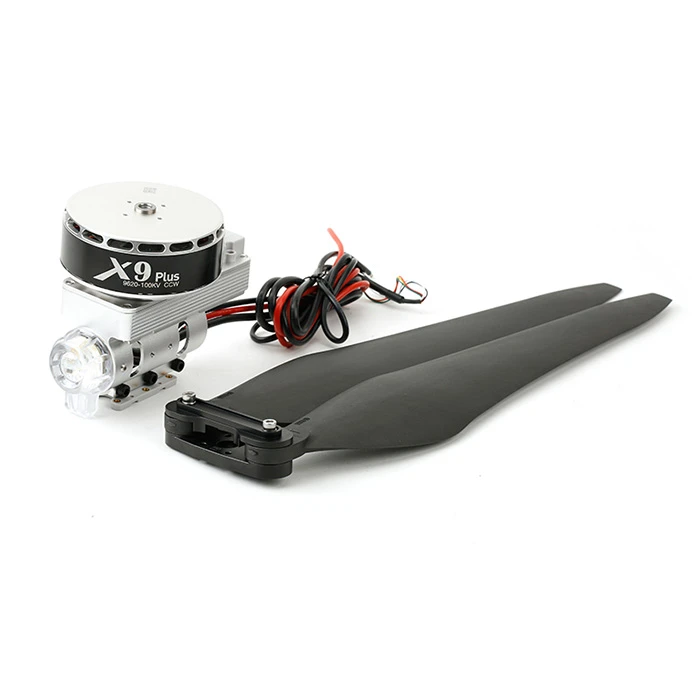

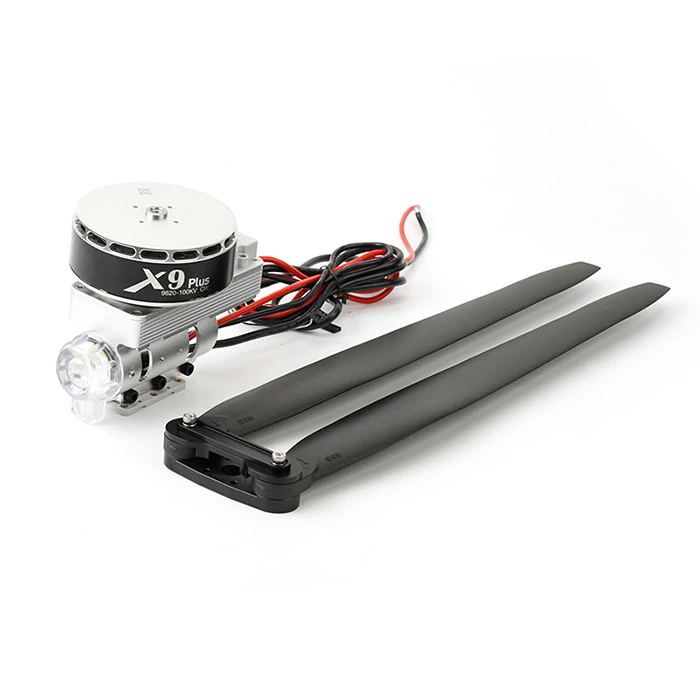

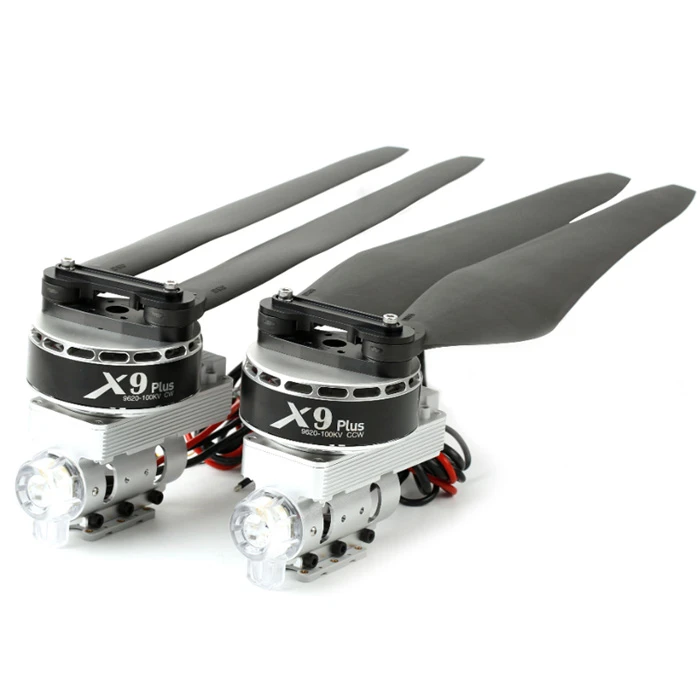

Hobbywing X9 Plus Power System 14S Propulsion System For 20L 30L Heavy Lift Agriculture Drones

Main Features:
13KG Big Payload
The new X9-Plus power system has a double breakthrough in strength and efficiency. The maximum load is 13kg/axle, and the maximum pull force of 36-inch composite aviation folding blades is 26.5kg. It is recommended to use 11-13kg uniaxial load.
It has better efficiency in the 11-12kg range. The motor adopts Hobbywing’s 9 series heavy-load frame platform, and the electromagnetic design and system optimization of 13kg single-axis load are carried out at fixed points.Combined with FOC ESC to fit the stage-enhanced algorithm for plant protection applications, performance and efficiency go hand in hand.

Optimization of Efficiency & Performance
In terms of efficiency, the motor improves the slot full rate, reduces the internal resistance, and cooperates with the fixed-point optimized FOC vector control drive technology to once again improve the efficiency from the bottom of the motor and increase the endurance. In terms of performance, the bearing system is upgraded (6001), the shaft diameter is increased, the load capacity is increased by more than 50%, and it has better rigidity and life, and is not easy to deform.

PROTECTION GRADE IPX7
In order to deal with the different areas of plant protection industry and more severe use environment
the anticorrosion and antirust performance of X9-PLUS power systemmotor is improved,and the ESC was fully encapsulated and the overall protectiongrade is IPX7.
It can apply to different working environments and climates over the world

Rapid cooling
Anti-collision Structure Design
Following the excellent heat dissipation structure. Widen cooling duct of the motor rotor under high power load. Improve the torque coefficient of motor, reduce the current and thermal load under the same thrust. The anticollision design of the motor base can absorb the impact, which protect the motor and ESC and reduce the damage to the power components caused by the crash.

Navigation Light
The navigation light will flash to indicate there is power failure.Immediately remind the user of the specific fault status.Discover and confirm problerms in time. Remove failure and flight safely at last.

Multiple protection functions–Improve system reliability
X9 PLUS power system has a series of protection functions, such as power on self-inspection, power on voltage abnormal protection, current protection, lock-up protection etc.
It can output real-time operation status data to flight controller, including input throttle, response throttle, motor speed, bus voltage, bus current, phase line current, capacitor temperature and MOS tube temperature etc.. so that the flight controller can master the operation conditions of ESC and motor in real time, improve the flight performance and efficiency of UAV, and improve the system relibility.

Specifications:
Item Brand: Hobbywing
Product Name: X9 Plus Power System Combo
Max. Thrust: 26.5kg/Axis (53.6V, Sea Level )
Recommended Takeoff Weight:11-13kg/Axis (53.6V, Sea Level )
Recommended LiPo Battery: 14S（LiPo）
Operating Temperature: -20-55℃
Combo Weight: 1774g
Waterproof Rating: IPX7

Motor
Stator size: 96x20mm
KV Rating: 100
Applicable carbon tube outer diameter: 40mm

ESC
Battery: 6-14S lipo
PWM input signal level: 3.3V/5V (Compatible)
Throttle Signal Frequency: 50-500Hz
Working pulse width: 1050μs-1950μs (Fixed or can not be programmed)
Maximum Input voltage: 60.9V
Max. Input Current (Short duration): 120A(w/ Good Heat Dissipation )
BEC: none

Propeller
Diameter×Pitch: 36×190 inch

Package Included:
Hobbywing X9 Plus Power System x 1
