Holybro M10N GPS For PIX Flight Controller
Original price was: $49.99.$34.99Current price is: $34.99.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Firmware Support for M10 GPS:
- PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
- As of Sept 7th 2023, PX4 has released 1.14 RC1 (release candidate). Please check this link for the latest release detail. More details on how to flash RC release can be found here.
Main Features
- Newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- High-gain 25*25*4mm antenna
- IST8310 Compass
- Internal Buzzer, Safety switch
- Ultra Bright UI RGB LED
Specification
| Holybro M10 GPS | Holybro M9N GPS | |
| GNSS Receiver | Ublox M10 | Ublox M9N |
| Number of Concurrent GNSS | Up to 4 GNSS | Up to 4 GNSS |
| BeiDou | BeiDou | |
| Galileo | Galileo | |
| GLONASS | GLONASS | |
| GPS | GPS | |
| QZSS | QZSS | |
| Frequency Band | GPS L1 | GPS L1 |
| Galileo E1 | Galileo E1 | |
| GLONASS L1 | GLONASS L1 | |
| BeiDou B1 | BeiDou B1 | |
| SBAS L1 | SBAS L1 | |
| QZSS L1 | QZSS L1 | |
| Compass | IST8310 | IST8310 |
| Output Protocol | UBX (U-blox) | UBX (U-blox) |
| NMEA | NMEA | |
| Accuracy | 2.0m CEP | 1.5m CEP |
| Nav. Update Rate | Up to 25 Hz (single GNSS), | Up to 25 Hz (4 concerrent GNSS) |
| Up to 10 Hz (4 concurrent GNSS) | ||
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS | EGNOS, GAGAN, MSAS and WAAS |
| QZSS: L1S | QZSS: L1S | |
| Default Baud Rate | 115200 | 115200 |
| Input Voltage | 4.7-5.2V | 4.7-5.2V |
| Port Type | JST-GH-10P | JST-GH-10P |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V |
| Operating Temperature | -40~80C | -40~80C |
| Dimension | φ50 x14.4 mm | φ50 x14.4 mm |

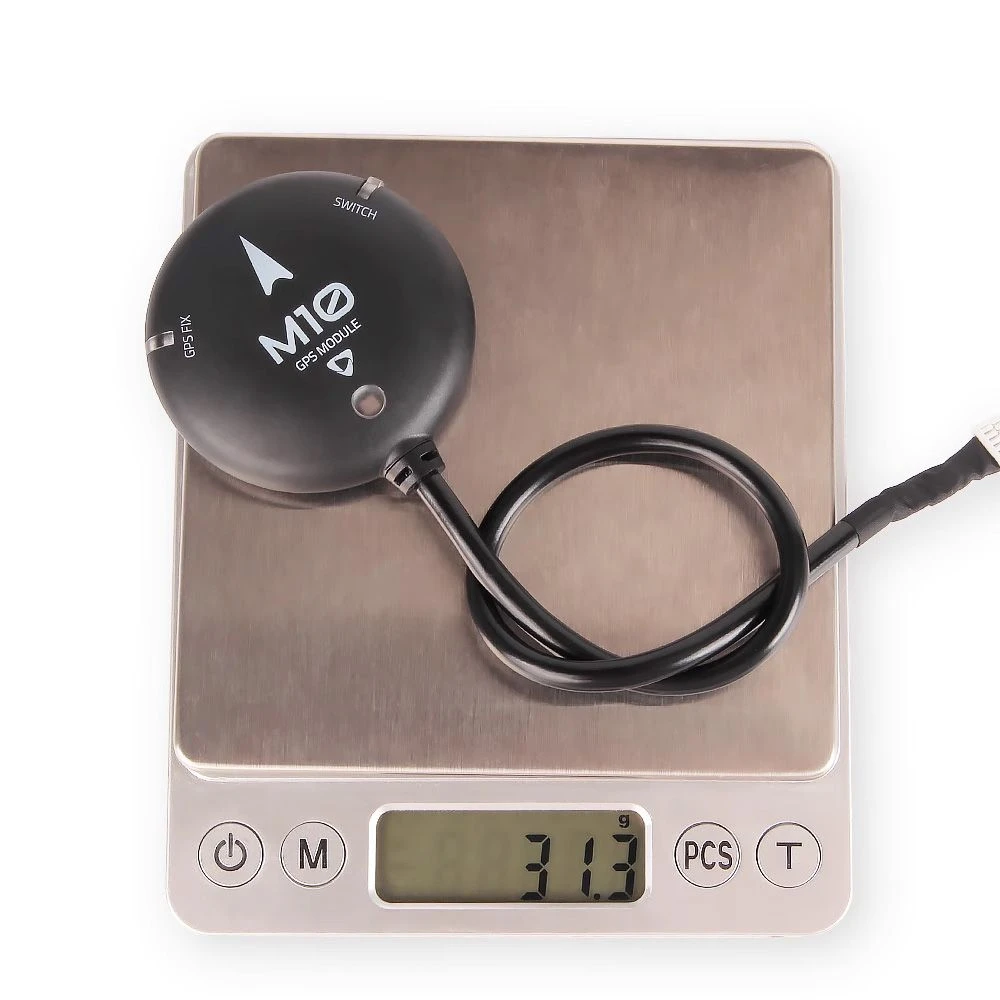

| Weight | 32g | 32g |
| Cable Length | 26cm (42cm cable purchase separately) | 26cm (42cm cable purchase separately) |
| Other | Tri-color LED | Tri-color LED |
| Onboard Buzzer | Onboard Buzzer | |
| Safety Switch | Safety Switch | |
| LNA MAX2659ELT+ RF Amplifier | LNA MAX2659ELT+ RF Amplifier | |
| Rechargeable Farah capacitance | Rechargeable Farah capacitance | |
| Low noise 3.3V regulator | Low noise 3.3V regulator |
Difference between the twoe cable options

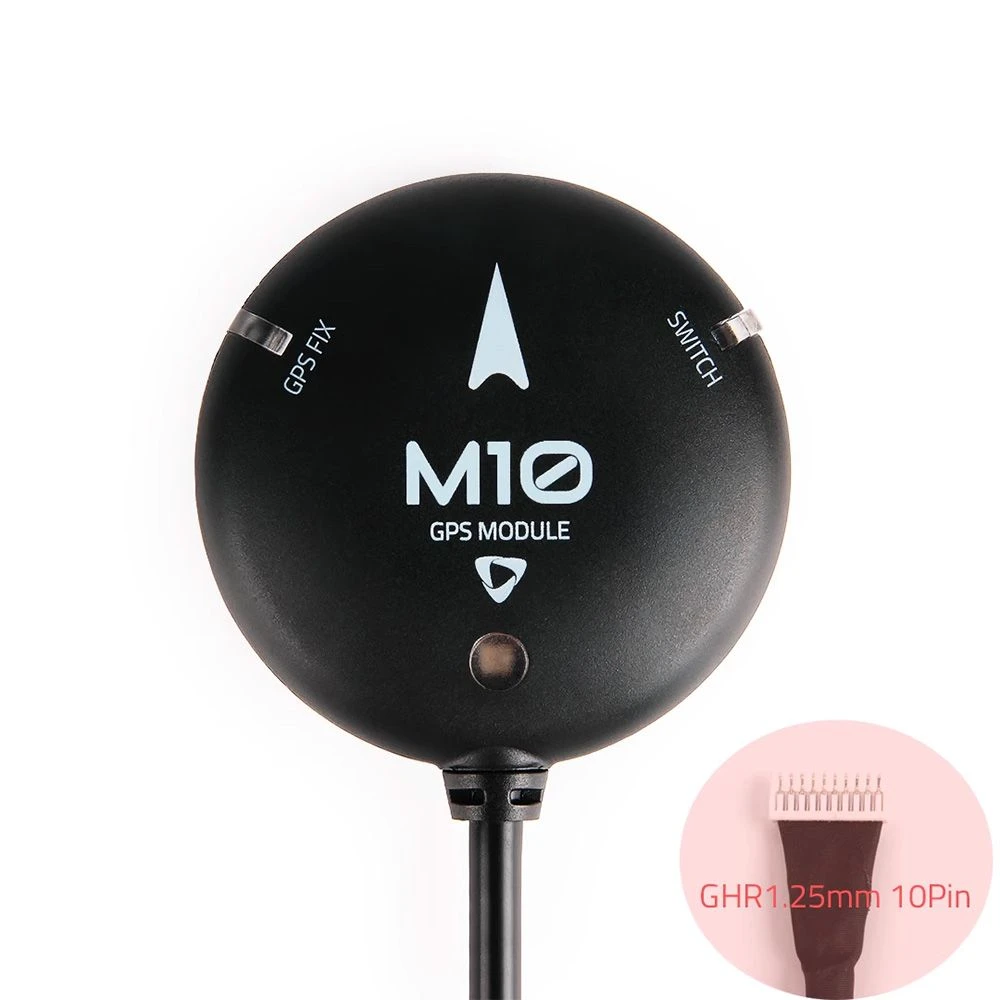

SKU12040 – Holybro M10 GPS (ST GHR1.25mm 10pin cable):
- This option is the most common, it is used on the This connector can be used on Pixhawk Standard Flight Controller 10pin “GPS Module”or “GPS1” input port.

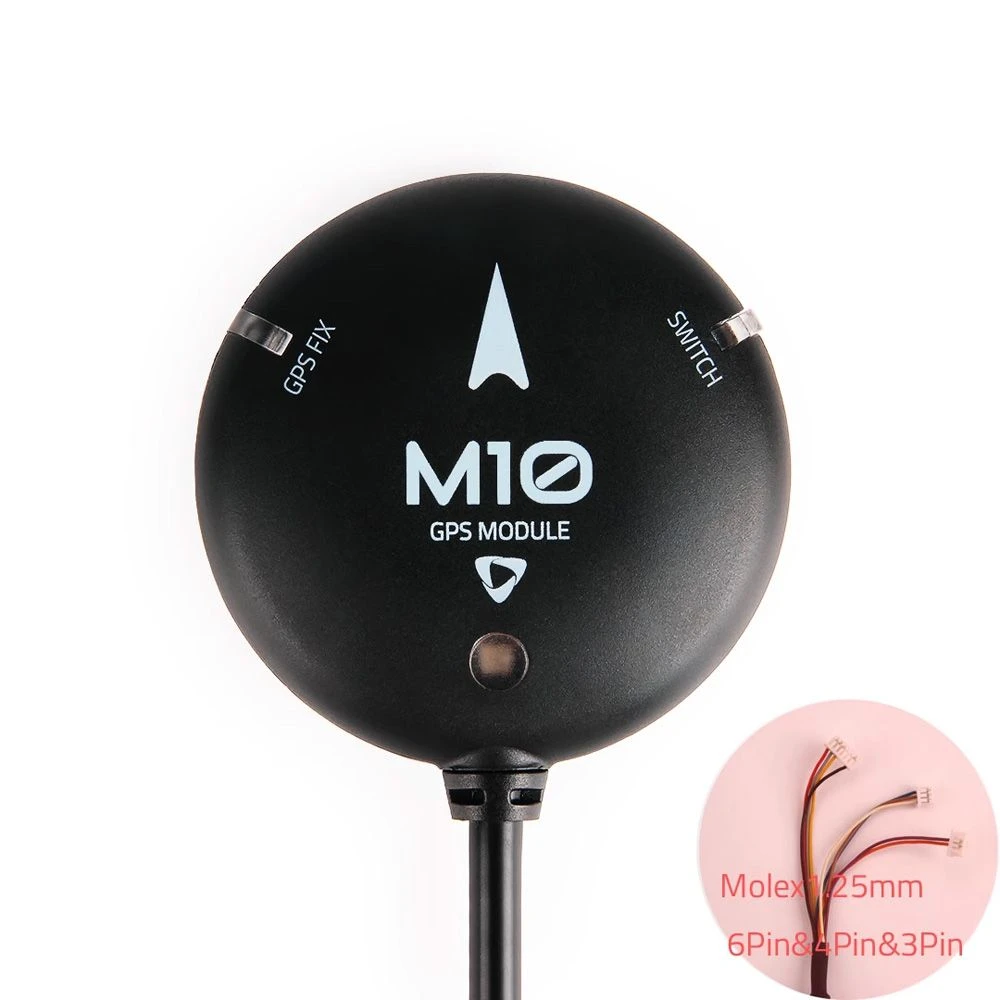

SKU12041 – Holybro M10 GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable):
- These connectors are for “Switch”, “GPS”, and “I2C” input ports on the Pix32/Pixhawk1/Pixhawk 2.4.6/2.4.8

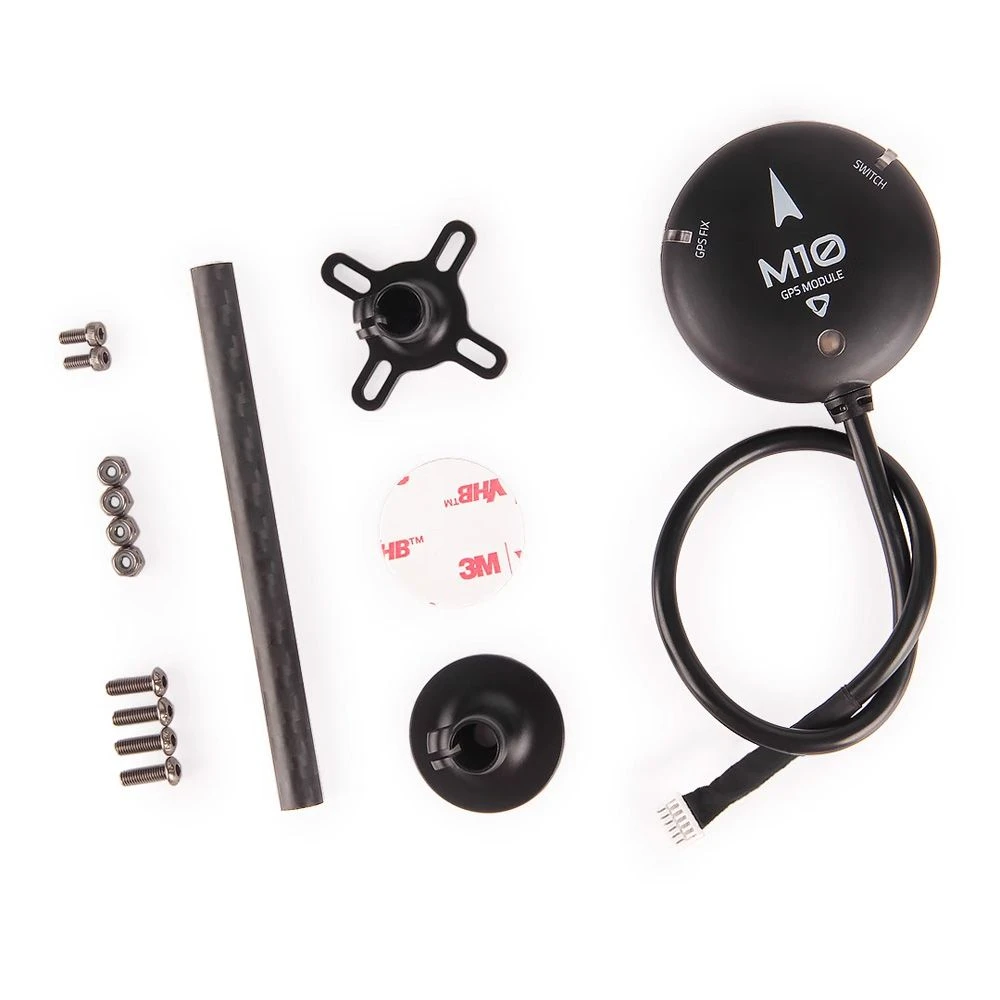

- Package Includes:
1x M10 GPS Module

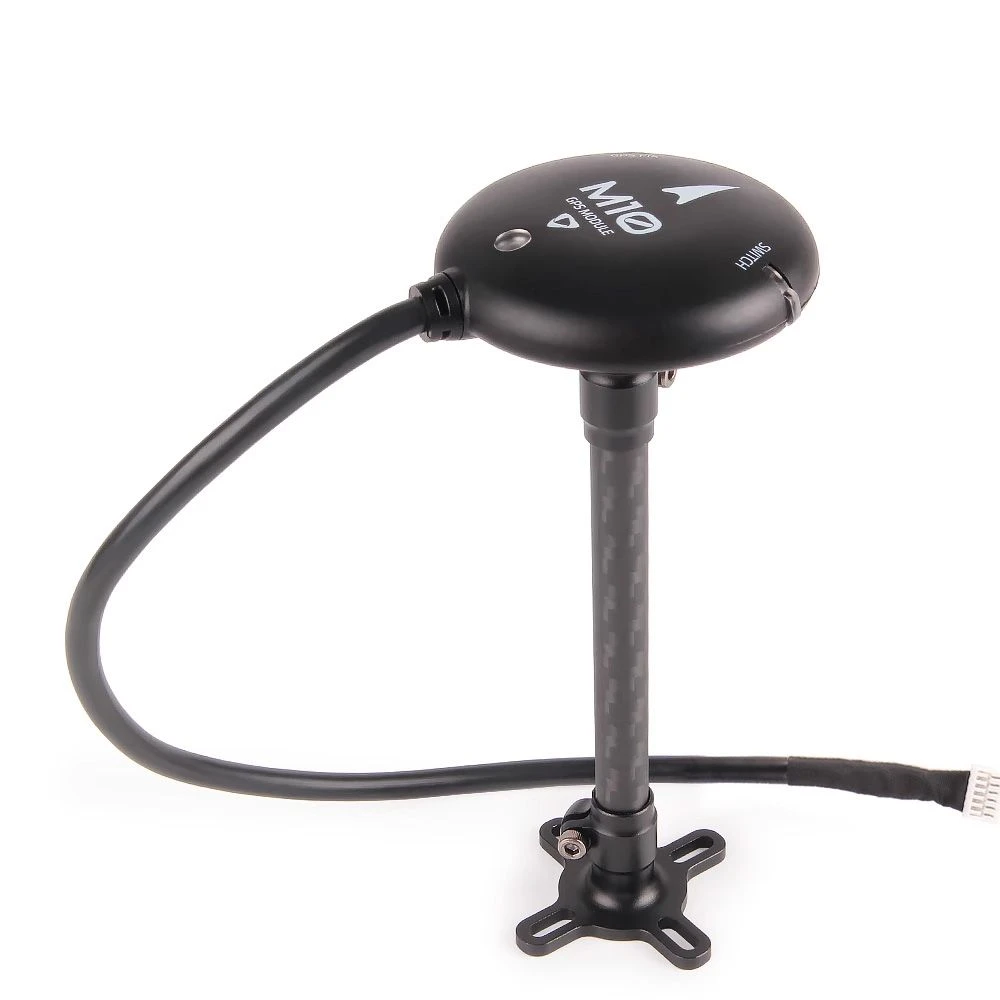

1x Fixed Carbon Fiber GPS mount
| Version | Standard, For Pix32 & Pixhawk 1/2.4.6/2.4.8 |
|---|
