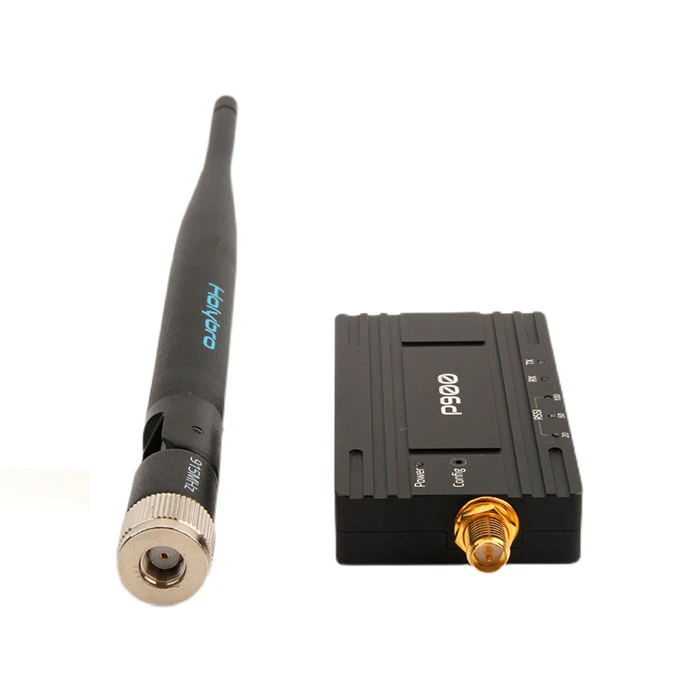

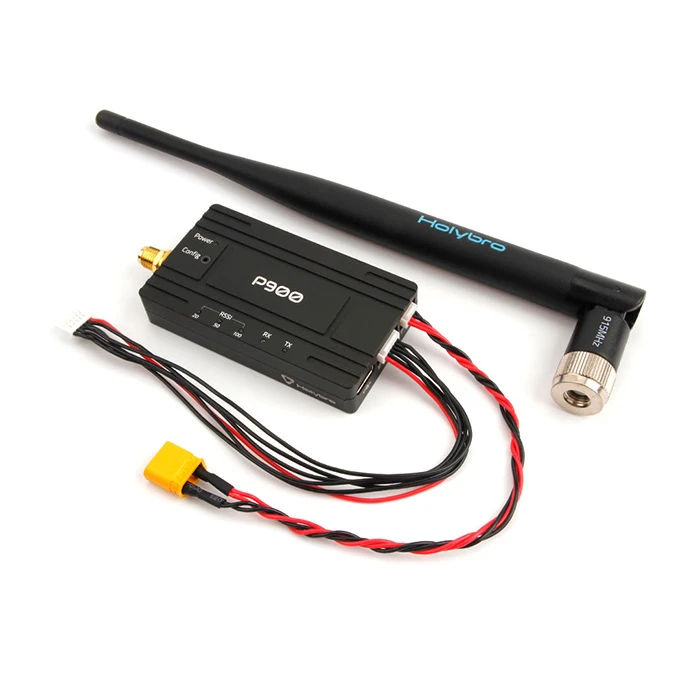

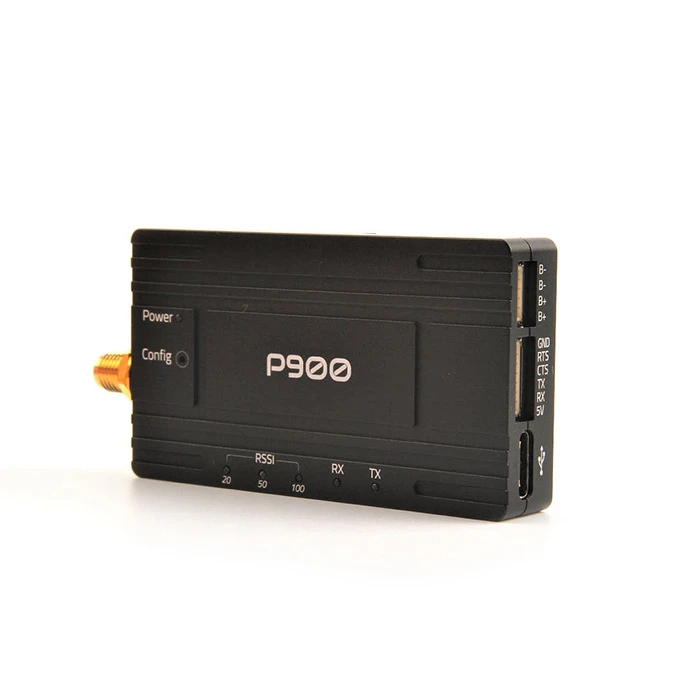

Holybro Microhard Telemetry P900 Radio For PIX Pixhawk 4 Flight Controller

Holybro P900 Radio integrates microhard Pico Series P900 RF module which is capable of delivering high-performance wireless serial communications in robust and secure Mesh, Point to Point or Point to Multipoint topologies.
P900 Radio operate within the 902-928 MHz ISM frequency band, using frequency hopping spread spectrum (FHSS) technology, providing reliable wireless asynchronous data transfer between most equipment types which employ a serial interface.
P900 Radio may be configured as a Primary Coordinator, Secondary Coordinator, Standby Coordinator or Remote in a Mesh Topology, or a Master, Repeater or Remote in a PP or PMP Topology. This versatility is very convenient for the user.
P900 Radio is configured using AT commands through the Data port or using PicoConfig application through the Diagnostic Port.

BENEFITS

–USB Type-C port, integrated USB to UART converter
–6-position JST-GH connector, can be directly connected to the TELEM port on various flight controller such as the pixhawk 4
–High voltage BEC onboard, Support DC7~35V voltage supply
–UART transmission LED indicator
–Three-stage RSSI LED indicator
–Transmission within a public, license-exempt band of the radio spectrum
–Transparent, low latency link rates up to 276 kbps
–Supports a robust true Mesh operation with auto-routing
–32 bits of CRC, selectable retransmission and forward error correction
–Separate diagnostics port, transparent remote diagnostics and online network control

SPECIFICATIONS

Power Consumption

Supply voltage: DC7~35V from 4-position JST-GH
Transmit current: 200 mA/7V at 20dBm
350mA/7V at 27dBm
800 mA/7V at 30dBm
Receive current: 100 mA
Weight: 42g (without antenna)

PIN MAP

Dimensions

Package Includes:

Holybro Microhard P900 Radio (1pc)

1x  Microhard P900 Radio
1x  Antenna
1x  XT30 Power cable
1x  GH 6P to 6P cable
1x  Metal Pin

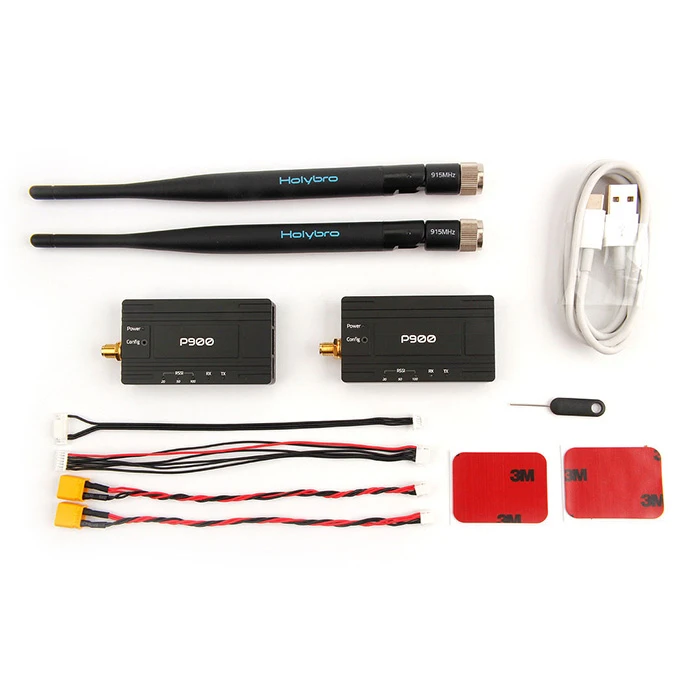

Holybro Microhard P900 Radio (1pair)

2x  Microhard P900 Radio
2x  Antenna
2x  XT30 Power cable
1x  GH 6P to 6P cable
1x  Metal Pin
