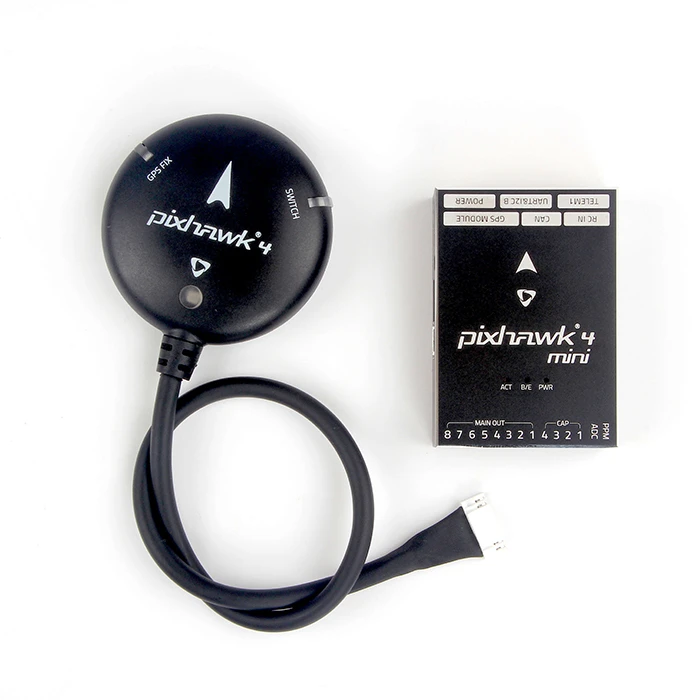

Holybro Pixhawk 4 Mini Autopilot Flight Controller With M8N GPS

Original price was: $240.00.Current price is: $99.99.

SKU: CMMTD 6955622945 Categories: Flight Controller/GPS, MULTI-ROTORS

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

Description
Reviews (0)

PRODUCT DESCRIPTION

Holybro Pixhawk® 4 Mini autopilot is designed for engineers and hobbyists who are looking to tap into the power of Pixhawk 4 but are working with smaller drones. Pixhawk 4 Mini takes the FMU processor and memory resources from the Pixhawk 4 while eliminating interfaces that are normally unused. This allows the Pixhawk 4 Mini to be small enough to fit in a 250mm racer drone.

Holybro Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the Pixhawk FMUv5 design standard and is optimized to run PX4 flight control software.
Pixhawk4 mini firmware version：1.8.0 dev

Specifications
Main FMU Processor: STM32F765
32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
On-board sensors:
Accel/Gyro: ICM-20689
Accel/Gyro: BMI055
Magnetometer: IST8310
Barometer: MS5611
GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310

Interfaces:
8 PWM outputs
4 dedicated PWM/Capture inputs on FMU
Dedicated R/C input for CPPM
Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
3 general purpose serial ports
2 I2C ports
3 SPI buses
1 CANBuses for CAN ESC
Analog inputs for voltage / current of battery
2 additional analog input

Power System:
Power Brick Input: 4.75~5.5V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~24V
Max current sensing: 120A
Weight and Dimensions:
Dimensions: 38x55x15.5mm
Other Characteristics:
Operating temperature: -40 ~ 85°c

GPS Features and Specifications:
– Ublox Neo-M8N module
– Industry leading 167 dBm navigation sensitivity
– Cold starts: 26s
– LNA MAX2659ELT+
– 25 x 25 x 4 mm ceramic patch antenna
– Rechargeable Farah capacitance
– Low noise 3.3V regulator
– Fix indicator LEDs
– Protective case
– 26cm Pixhawk4 compatible 10-pin cable included
– Diameter 50mm total size, 32 grams with case.

Package Included:
Pixhawk4 mini *1
Pixhawk4 GPS MODULE *1
PM06 V2 Power Management Board *1
I2C splitter Board *1
6 to 6 pin cable (power) *1
4 to 4 pin cable (CAN) *1
6 to 4 pin cable (Data) *1
6 to 4 pin and 4 pin “Y”cable *1
6 to 6 pin cable(Debug) *1
PPM/SBUS out cable *1
XSR receiver cable *1
DSMX receiver cable *1
SBUS receiver cable *1
USB cable *1
‘X’type folding pedestal mount *1
70mm & 140mm carbon rod stand off *2
Foam Set *1
Pixhawk4 mini Quick Start Guide *1
